368 ZXP Series 9 Card Printer Service Manual P1086708-001
Replacement Procedures for the Laminator
Procedures: Laminator Controller PCBA
Laminator Controller PCBA
For replacement, use Kit PCBA Laminator Controller 105936G-510. Contact Zebra Customer
Service at +01 877-275-9327 for ordering information.
Step 1. Unplug all the laminator controller PCBA cable connectors and ground connections.
To avoid confusion when reinstalling, mark all disconnected plugs and associated
connectors.

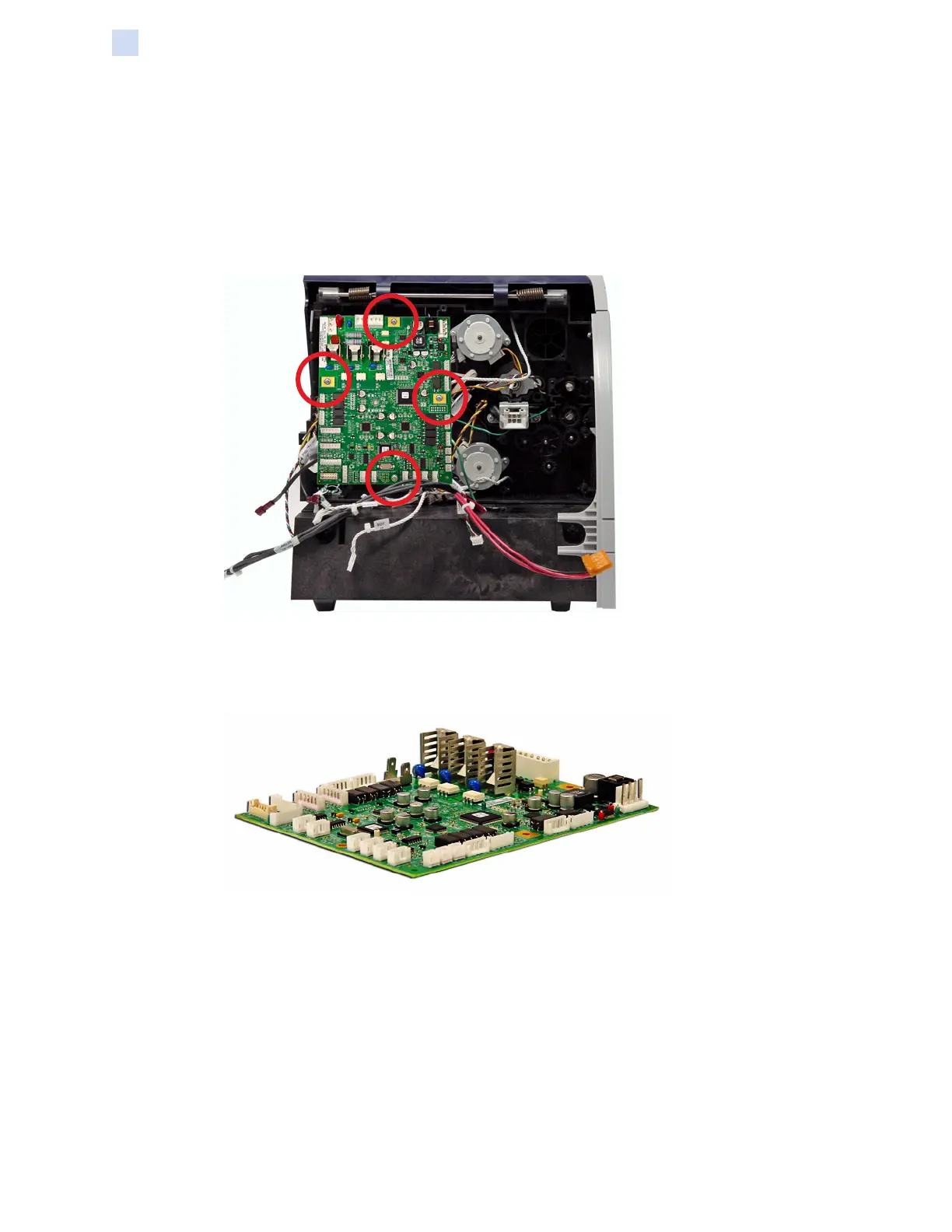

Step 2. With a TORX T10 driver, remove the four mounting screws (circled above) holding
the laminator controller PCBA in place.
Step 3. Set the laminator controller PCBA aside.

Zebra ZXP 9 Series Specifications

General

Resolution	300 dpi
Card Capacity Output	100 cards
Memory	64 MB
Interface	USB, Ethernet
Operating Humidity	20% to 80% non-condensing
Print Technology	Dye Sublimation
Print Speed YMCK	Up to 190 cards/hour
Card Capacity Input	100 cards
Card Sizes	CR-80 ISO 7810
Connectivity	USB, Ethernet
Operating System	Windows, Linux
Options	Magnetic stripe encoding
Power Requirements	100-240V AC, 50/60Hz
Operating Temperature	15°C to 35°C
Card Thickness	10-40 mil
