P1086708-001 ZXP Series 9 Card Printer Service Manual 367
Replacement Procedures for the Laminator
Procedures: Motor and Plate Assembly

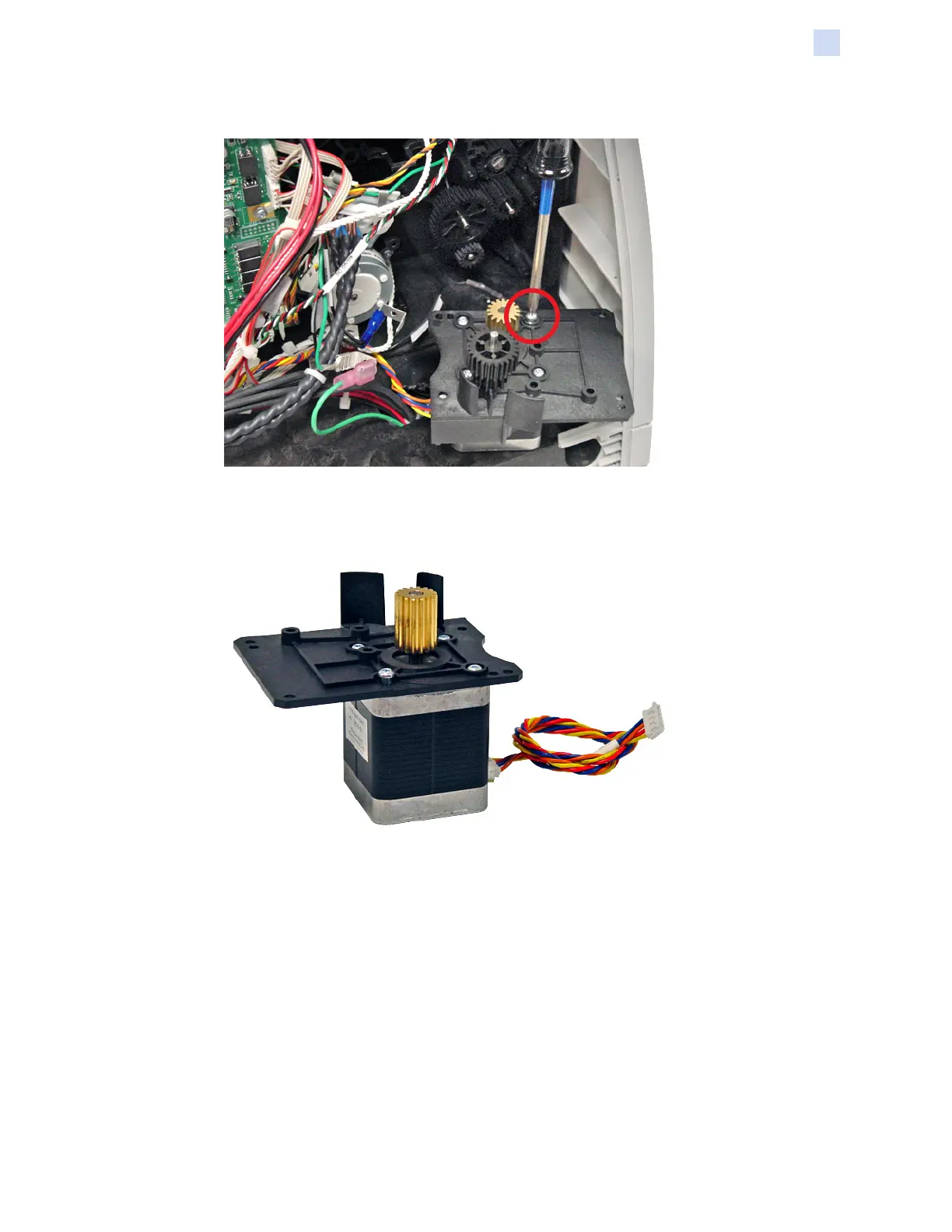

Step 5. With a TORX T10 driver, disconnect the ground wire.
Step 6. Cut the associated cable ties, disconnect the motor plug from J20, and remove the
motor and plate assembly.
