Replacement Procedures for the Laminator
Procedures: Laminator Heater Assembly
Laminator Heater Assembly
For replacement, use Kit Assembly Heater Lam 105936G-551. Contact Zebra Customer Service at
+01 877-275-9327 for ordering information.
Hot Surface • Halogen bulbs produce intense heat. Use caution when handling the transfer
station assembly.

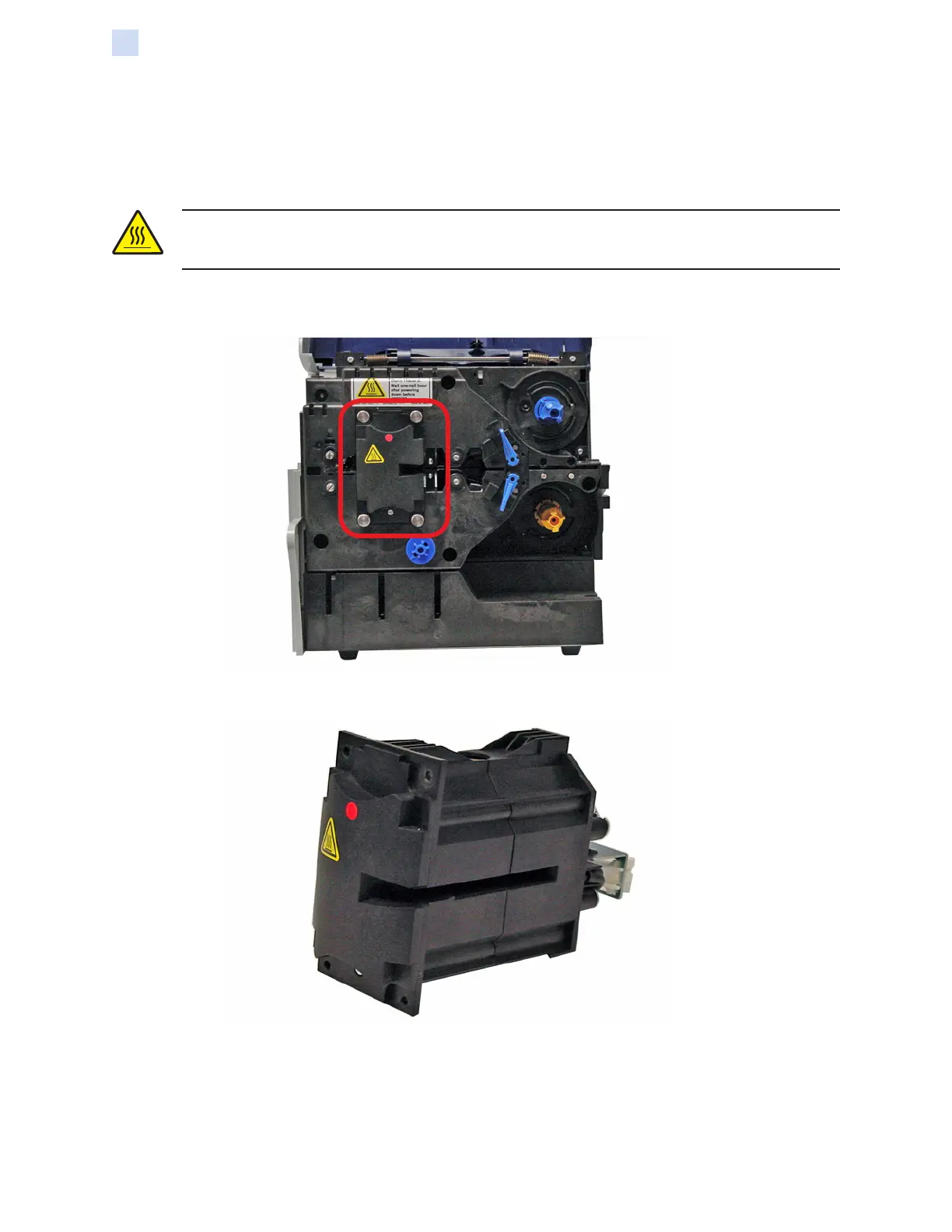

Step 1. Remove the four thumbscrews (circled below) holding the laminator heater assembly
in place.
Step 2. Slide the laminator heater assembly out of the laminator.
