154 ZXP Series 9 Card Printer Service Manual P1086708-001
Setting Custom Card Speciîšżcations
Adjustments
Step 5. Examine the test card.
y If there is noticeable improvement, repeat Steps 2–4 until the problem is corrected
or there is no more improvement.
y If there is no noticeable improvement after a number of cycles, return the value to
its default setting and go to next correction.
Decrease Transfer Output Speed
Step 1. From the Card Speciîšżcations window, make a note of the default transfer output
speed settings.
Step 2. Decrease the appropriate (Single or Double) transfer output speed by 0.1.
Step 3. Click OK.
Step 4. Print a test card (see “Printing a Test Card” on page 42).
Step 5. Examine the test card.
y If there is noticeable improvement, repeat Steps 2–4 until the problem is corrected
or there is no more improvement.
y If there is no noticeable improvement, return the value to its default setting and
contact Zebra Technical Support.
Warpage

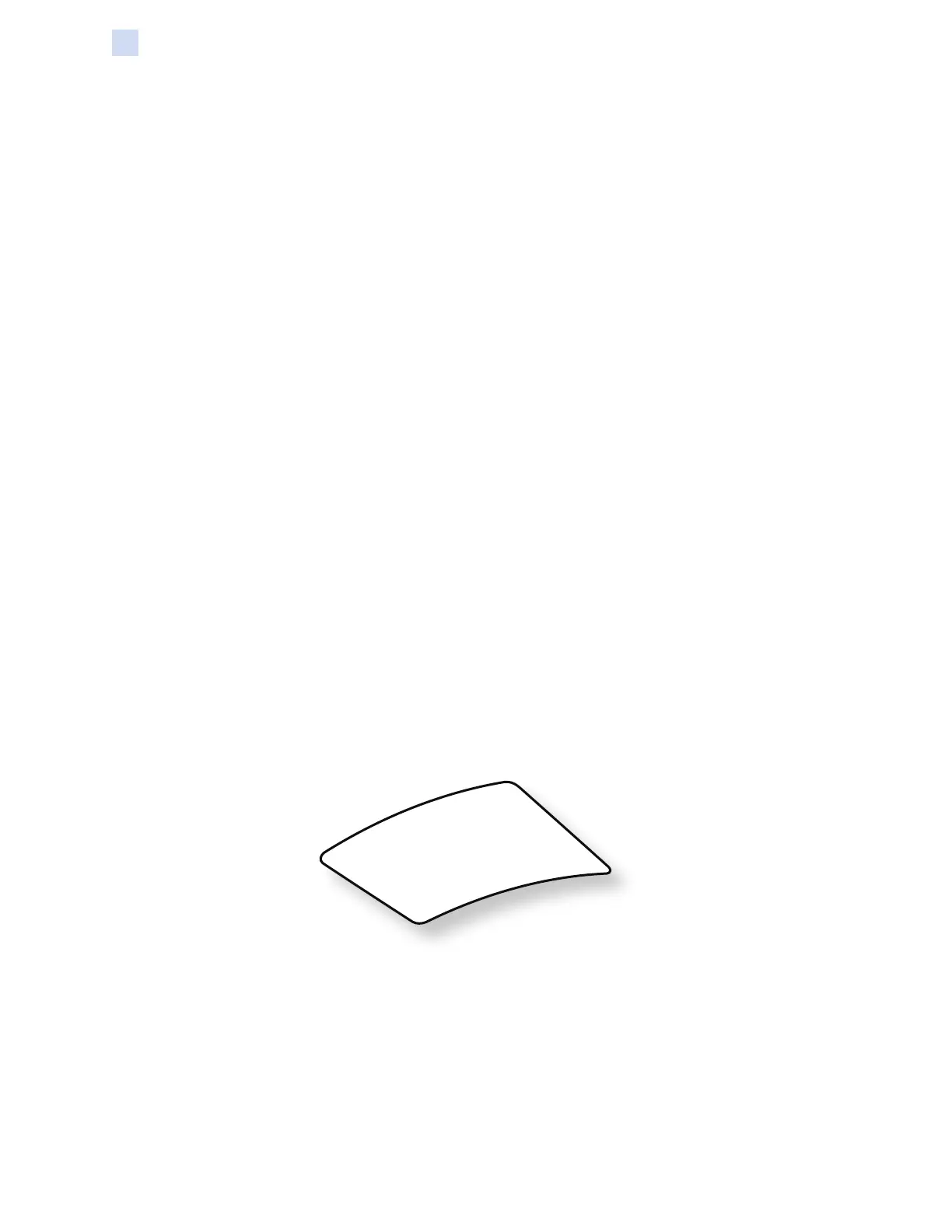

Edges curled down
Warpage is usually caused by too much energy being transferred to the card (i.e., the temperatures
are too hot or the speeds are too slow), coupled with the card material and the amount of time the
card sits before being handled.
Decrease Back Transfer Temperature
Step 1. From the Card Speciîšżcations window, make a note of the default transfer output
speed settings.
Step 2. Decrease the appropriate (Single or Double side) back transfer temperature by 5.
Step 3. Click OK.
