320 ZXP Series 9 Card Printer Service Manual P1086708-001
Replacement Procedures for the Printer
Procedures: Printhead Fan
Printhead Fan
For replacement, use Kit Printhead Fan 105936G-022. Contact Zebra Customer Service at
+01 877-275-9327 for ordering information.
Step 1. To access the fan, turn the printer on its side.

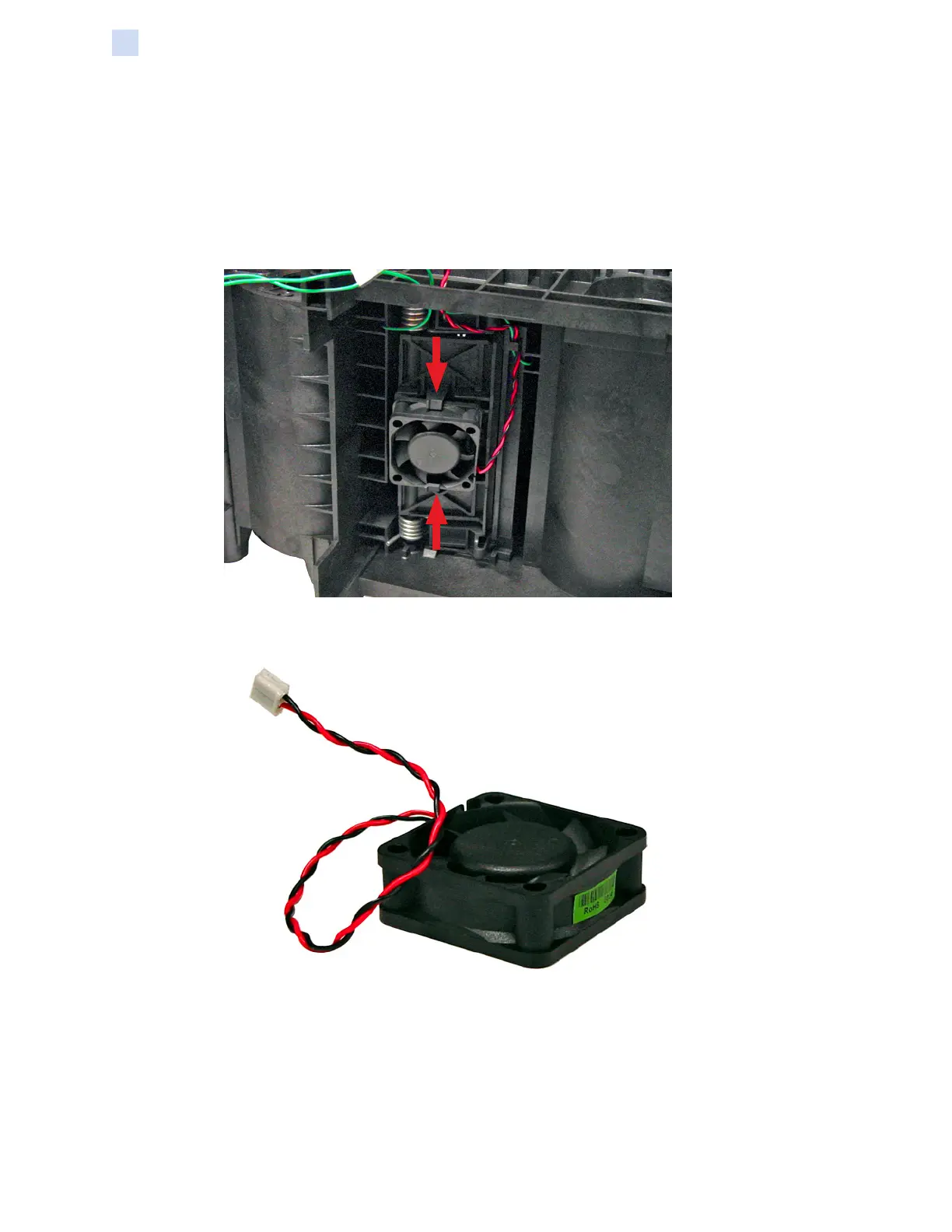

Step 2. Lift the two locking tabs (arrows below) to free the printhead fan.
Step 3. Remove the printhead fan.
