300 ZXP Series 9 Card Printer Service Manual P1086708-001
Replacement Procedures for the Printer
Procedures: Ribbon Take-up Assembly
Ribbon Take-up Assembly
For replacement, use Kit Ribbon Takeup Assembly 105936G-002. Contact Zebra Customer
Service at +01 877-275-9327 for ordering information.
Removal

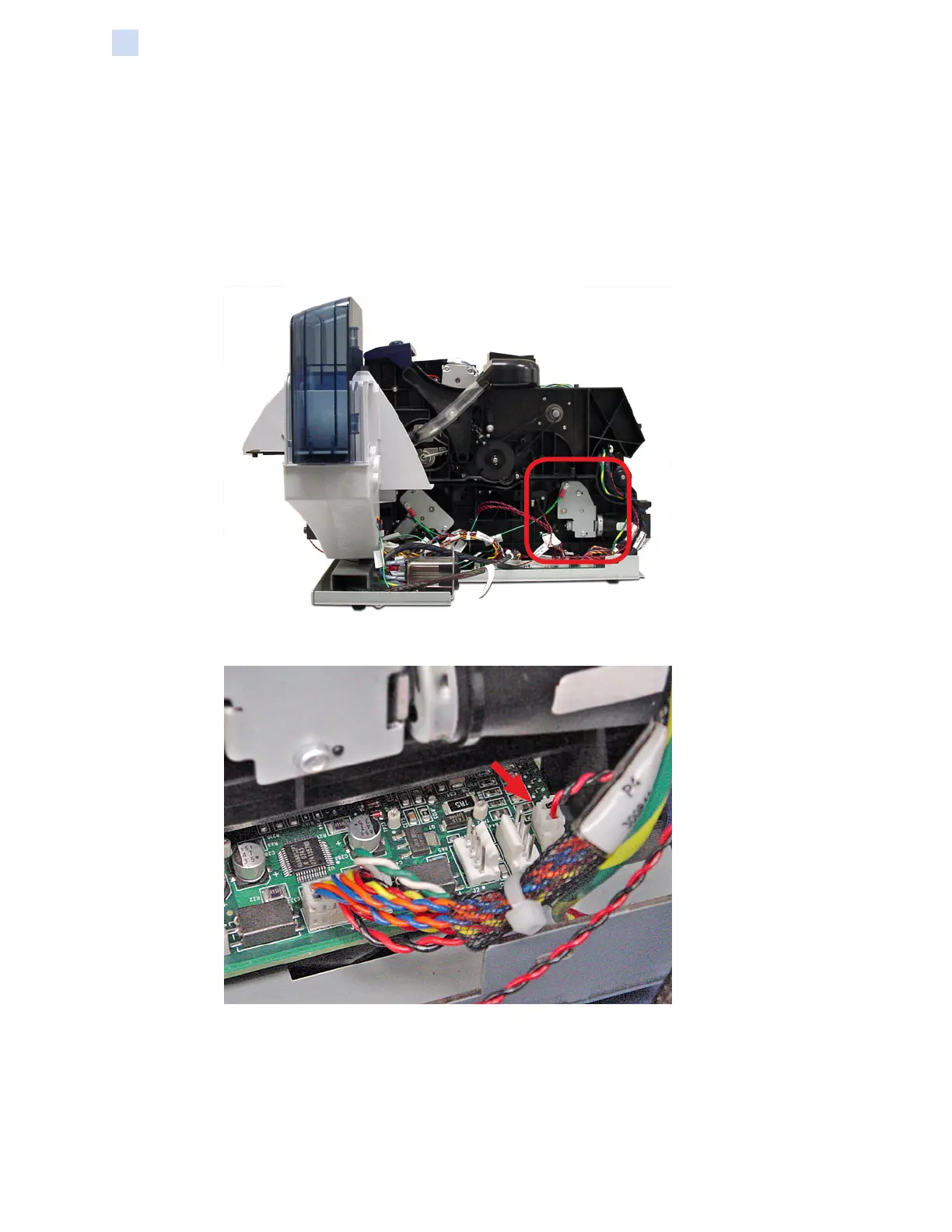

Step 1. Locate the ribbon take-up assembly.
Step 2. Disconnect the plug from J3 (arrow below).
