P1086708-001 ZXP Series 9 Card Printer Service Manual 301
Replacement Procedures for the Printer
Procedures: Ribbon Take-up Assembly

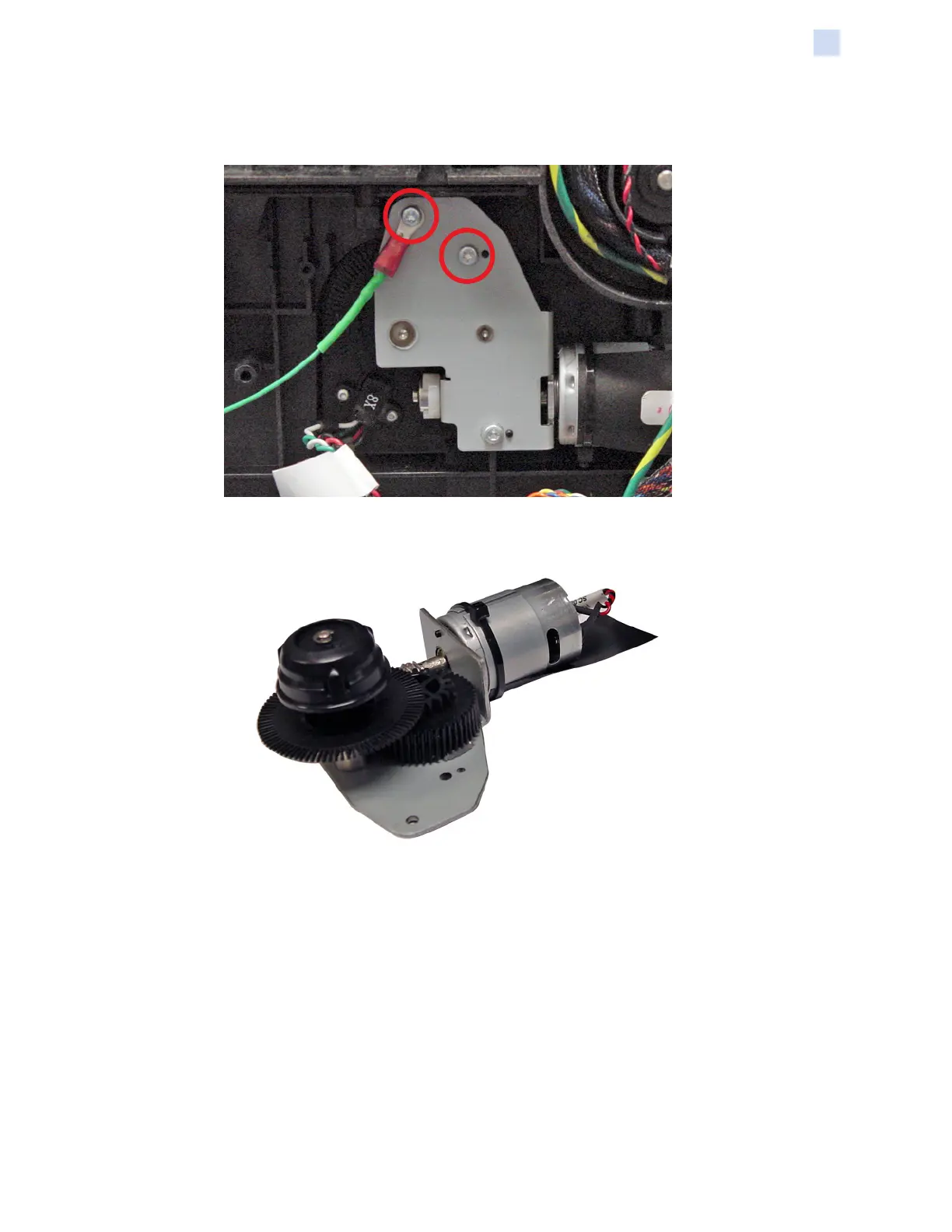

Step 3. With a TORX T10 driver, remove the three screws (circled below) holding the ribbon
take-up assembly in place.
Step 4. Carefully remove the ribbon take-up assembly.
