Zebra ZXP 9 Series User Manual

370 ZXP Series 9 Card Printer Service Manual P1086708-001
Replacement Procedures for the Laminator
Procedures: Media Authentication PCBA

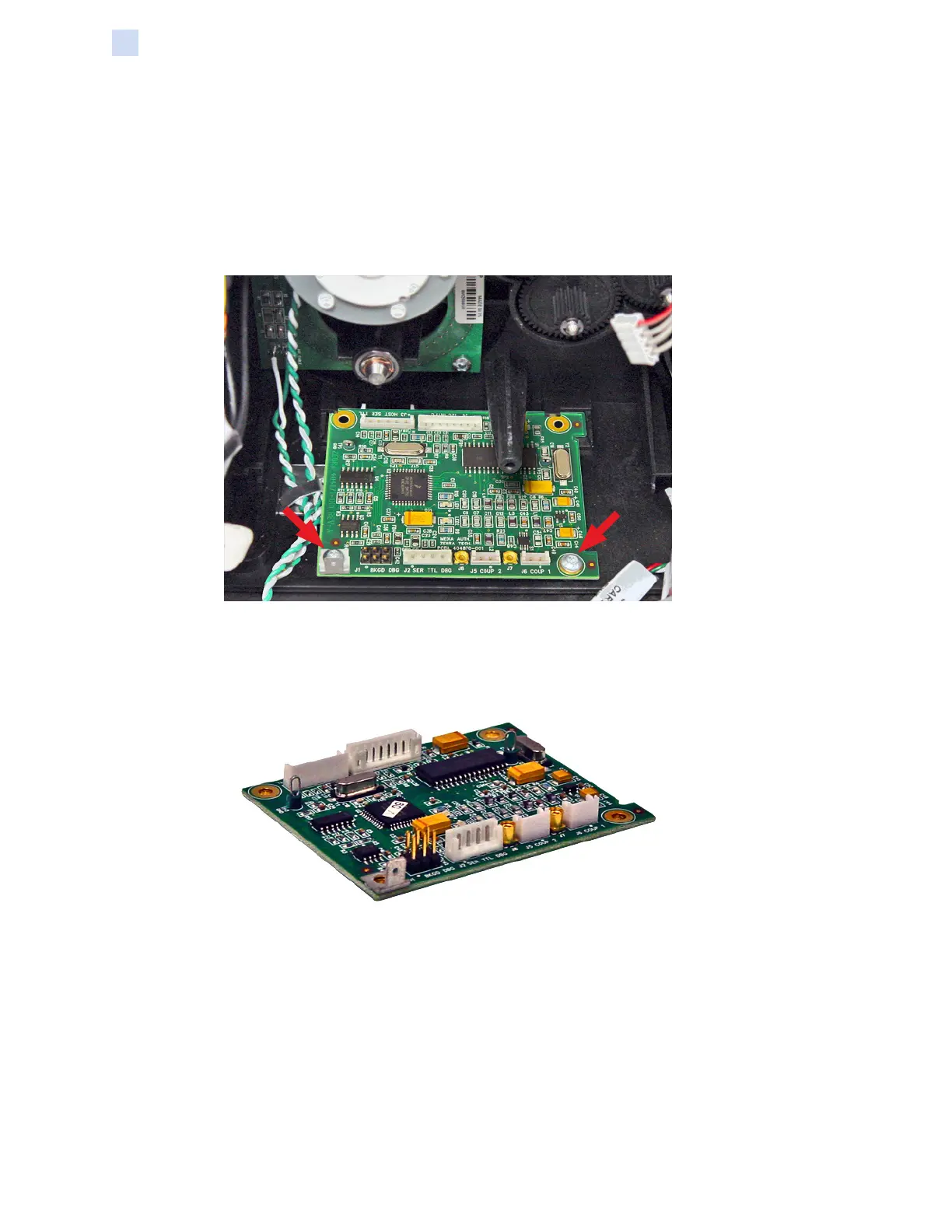

Media Authentication PCBA
For replacement, use Kit PCBA Media Auth ZXP Lam 105936G-520. Contact Zebra Customer
Service at +01 877-275-9327 for ordering information.
Step 1. Unplug the three media authentication PCBA cable connectors and ground
connection. To avoid confusion when reinstalling, mark all disconnected plugs and
associated connectors.
Step 2. With a TORX T10 driver, remove the two mounting screws (arrows above) holding
the media authentication PCBA in place.
Step 3. Set the media authentication PCBA aside.

Zebra ZXP 9 Series Specifications

General

Resolution	300 dpi
Card Capacity Output	100 cards
Memory	64 MB
Interface	USB, Ethernet
Operating Humidity	20% to 80% non-condensing
Print Technology	Dye Sublimation
Print Speed YMCK	Up to 190 cards/hour
Card Capacity Input	100 cards
Card Sizes	CR-80 ISO 7810
Connectivity	USB, Ethernet
Operating System	Windows, Linux
Options	Magnetic stripe encoding
Power Requirements	100-240V AC, 50/60Hz
Operating Temperature	15°C to 35°C
Card Thickness	10-40 mil
