Zebra ZXP 9 Series User Manual

P1086708-001 ZXP Series 9 Card Printer Service Manual 239
Replacement Procedures for the Printer
Procedures: Bottom Rear Enclosure
Bottom Rear Enclosure

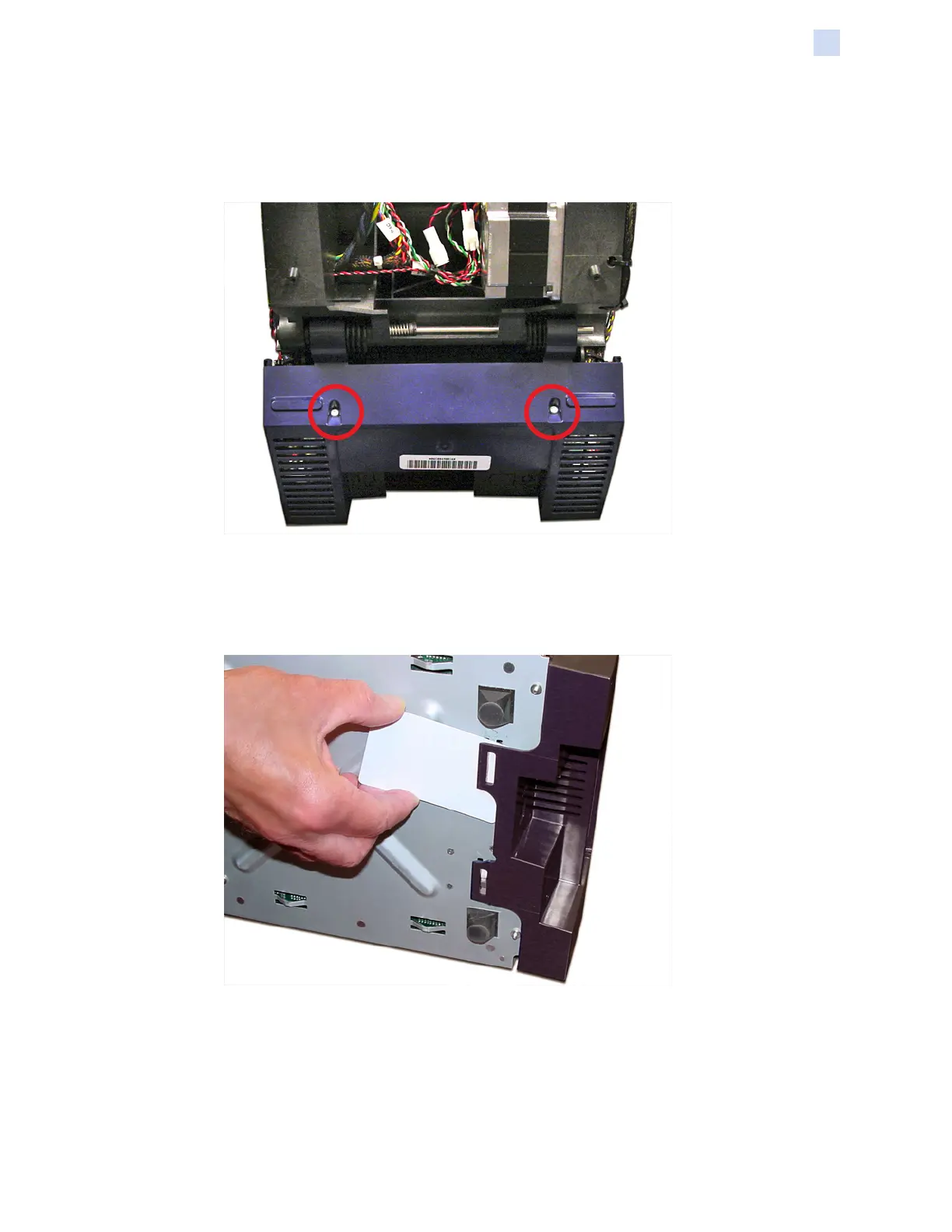

Step 1. With a TORX T10 driver, remove the two screws (circled below) holding the bottom
rear enclosure in place.
Step 2. Set the printer on its side.
Step 3. Lift the locking tab and slide a card under the lip of the rear cover to release. Leave
the card in place and release the other locking tab. Do not use a screwdriver as
damage may occur to the main PCBA.
Step 4. Remove the bottom rear enclosure.

Zebra ZXP 9 Series Specifications

General

Resolution	300 dpi
Card Capacity Output	100 cards
Memory	64 MB
Interface	USB, Ethernet
Operating Humidity	20% to 80% non-condensing
Print Technology	Dye Sublimation
Print Speed YMCK	Up to 190 cards/hour
Card Capacity Input	100 cards
Card Sizes	CR-80 ISO 7810
Connectivity	USB, Ethernet
Operating System	Windows, Linux
Options	Magnetic stripe encoding
Power Requirements	100-240V AC, 50/60Hz
Operating Temperature	15°C to 35°C
Card Thickness	10-40 mil
