Zebra ZXP 9 Series User Manual

206 ZXP Series 9 Card Printer Service Manual P1086708-001
ZXP Toolbox
Tools & Utilities
Diagnostics

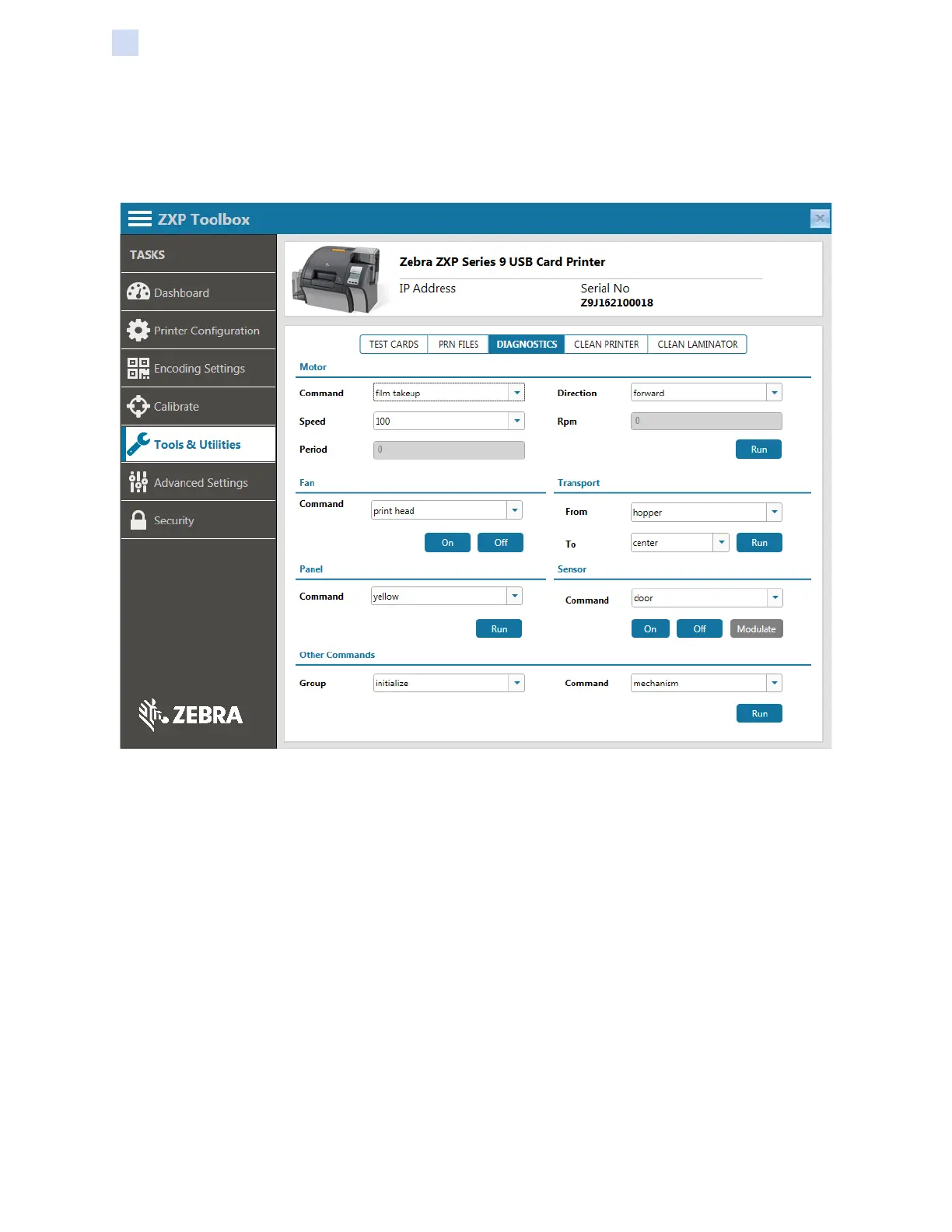

The Diagnostics screen provides troubleshooting capabilities to assist Service Technicians in
analyzing printer problems.
Motor
These commands enable testing the functionality of the selected motor.
For all commands—except ribbon takeup—direction is selectable (forward or reverse) and speed is
variable.
Command
y lm takeup
y lm payout
y card feed
y head lift
y card x
y card y
y card z
y transfer roller (remove transfer lm prior to running this command)

Zebra ZXP 9 Series Specifications

General

Resolution	300 dpi
Card Capacity Output	100 cards
Memory	64 MB
Interface	USB, Ethernet
Operating Humidity	20% to 80% non-condensing
Print Technology	Dye Sublimation
Print Speed YMCK	Up to 190 cards/hour
Card Capacity Input	100 cards
Card Sizes	CR-80 ISO 7810
Connectivity	USB, Ethernet
Operating System	Windows, Linux
Options	Magnetic stripe encoding
Power Requirements	100-240V AC, 50/60Hz
Operating Temperature	15°C to 35°C
Card Thickness	10-40 mil
