Zebra ZXP 9 Series User Manual

360 ZXP Series 9 Card Printer Service Manual P1086708-001
Replacement Procedures for the Laminator
Procedures: Laminator Lock
Laminator Lock
For replacement, use Kit Lam Lock 105936G-502. For the laminator lock upgrade, use
Kit Upgrade Laminator Lock ZXP9 105936G-535 and refer to the instructions enclosed. Contact
Zebra Customer Service at +01 877-275-9327 for ordering information.

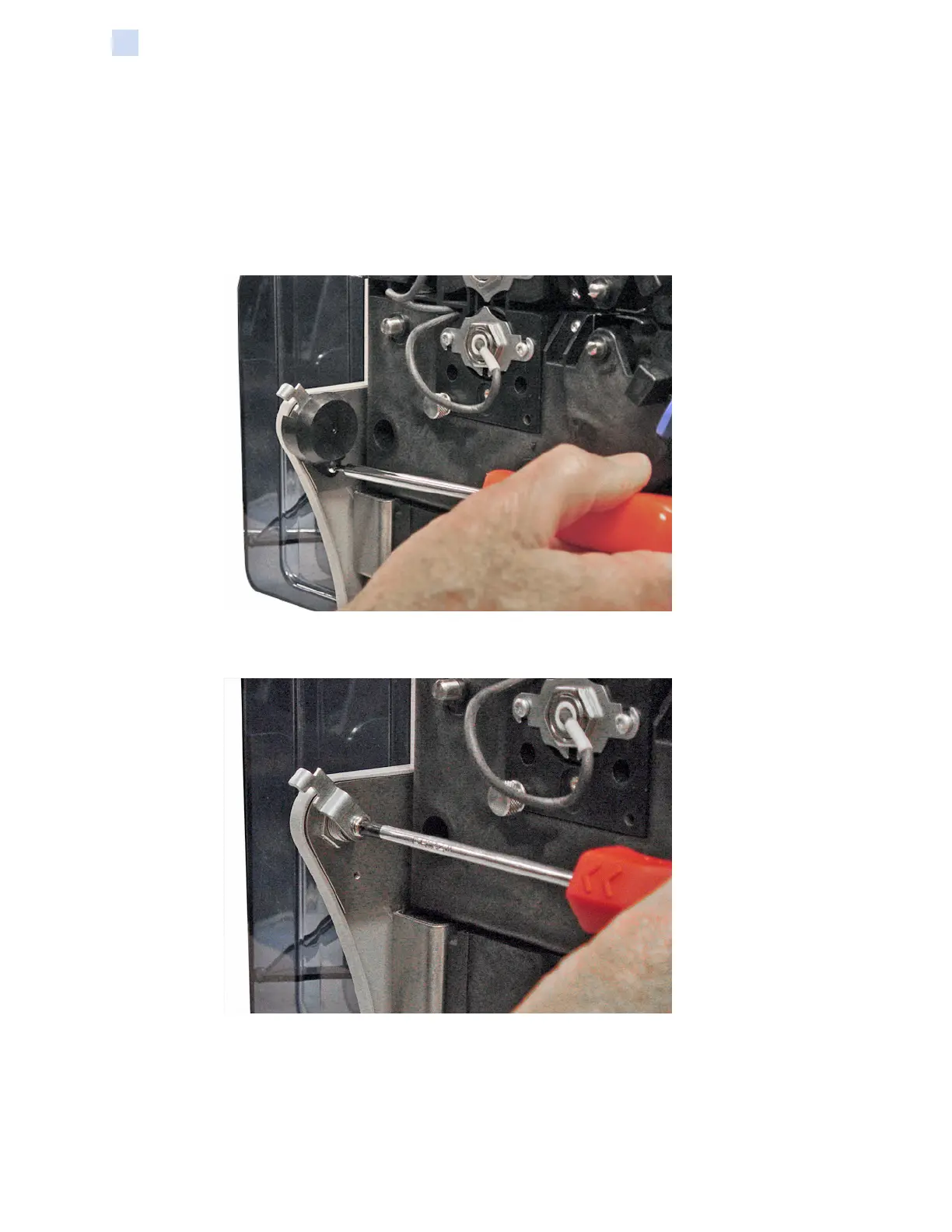

Step 1. With a TORX T10 Driver, remove the screw holding the latch cover in place, and set
the latch cover aside.
Step 2. With a Phillips #1 screwdriver, remove the screw holding the cam in place; and set
the cam aside.

Zebra ZXP 9 Series Specifications

General

Resolution	300 dpi
Card Capacity Output	100 cards
Memory	64 MB
Interface	USB, Ethernet
Operating Humidity	20% to 80% non-condensing
Print Technology	Dye Sublimation
Print Speed YMCK	Up to 190 cards/hour
Card Capacity Input	100 cards
Card Sizes	CR-80 ISO 7810
Connectivity	USB, Ethernet
Operating System	Windows, Linux
Options	Magnetic stripe encoding
Power Requirements	100-240V AC, 50/60Hz
Operating Temperature	15°C to 35°C
Card Thickness	10-40 mil
