12 ZXP Series 9 Card Printer Service Manual P1086708-001
Setup
Installing the Card Hoppers
Installing the Card Hoppers
Input Hopper
The input hopper is positioned on the right side of the printer and holds the cards to be printed.

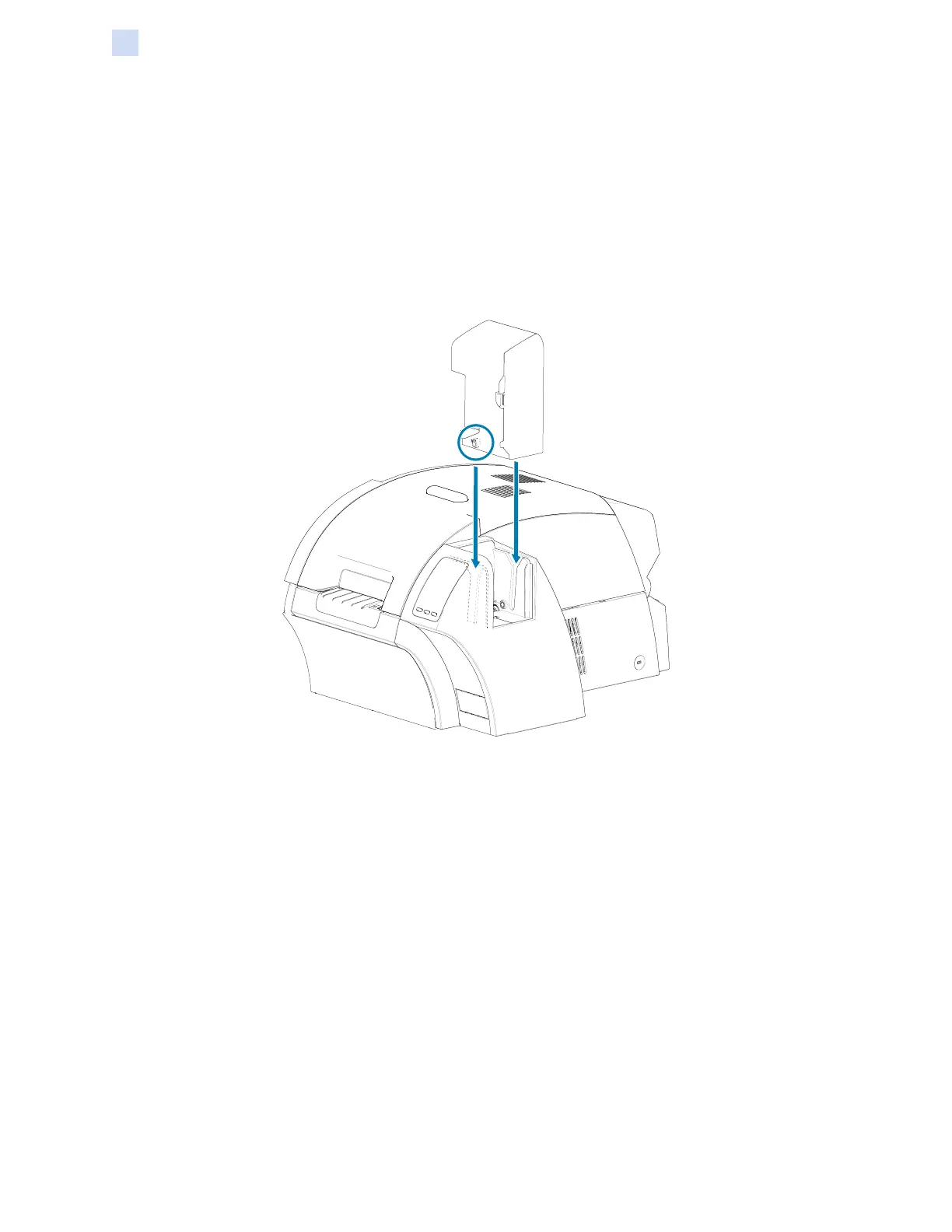

Step 1. Install the input hopper by sliding it into the receptacle so that the guide posts on the
hopper (circled below) align with the guide slots (arrows below).
Step 2. Ensure that the input hopper locks securely in place.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Zebra ZXP 9 Series and is the answer not in the manual?

Zebra ZXP 9 Series Specifications

General IconGeneral
Resolution300 dpi
Card Capacity Output100 cards
Memory64 MB
InterfaceUSB, Ethernet
Operating Humidity20% to 80% non-condensing
Print TechnologyDye Sublimation
Print Speed YMCKUp to 190 cards/hour
Card Capacity Input100 cards
Card SizesCR-80 ISO 7810
ConnectivityUSB, Ethernet
Operating SystemWindows, Linux
OptionsMagnetic stripe encoding
Power Requirements100-240V AC, 50/60Hz
Operating Temperature15°C to 35°C
Card Thickness10-40 mil
