Zebra ZXP 9 Series User Manual

430 ZXP Series 9 Card Printer Service Manual P1086708-001
Smart Card Encoder
Laminating Contact Smart Cards
Laminating Contact Smart Cards

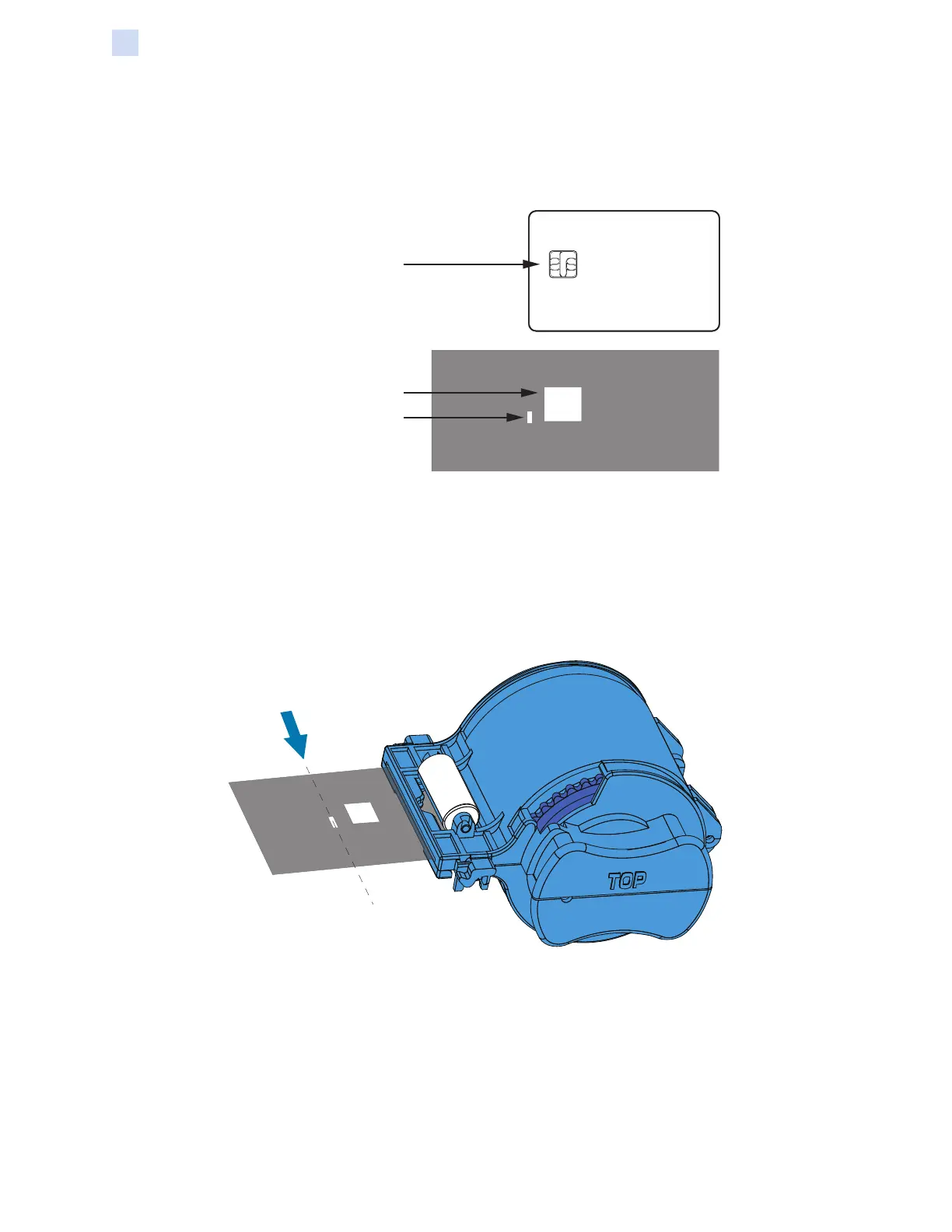

The laminate for the top surface of a contact smart card has a repeating pattern of an index hole and
a rectangular cutout to expose the card’s electrical contacts.
Electrical Contacts
Electrical Contacts Cutout
Index Hole
Step 1. Remove the upper laminate cassette.
Step 2. Open the cassette, and remove the laminate if present.
Step 3. Load the smart card laminate into the cassette.
Step 4. Cut the laminate, splitting the index hole as shown.

Zebra ZXP 9 Series Specifications

General

Resolution	300 dpi
Card Capacity Output	100 cards
Memory	64 MB
Interface	USB, Ethernet
Operating Humidity	20% to 80% non-condensing
Print Technology	Dye Sublimation
Print Speed YMCK	Up to 190 cards/hour
Card Capacity Input	100 cards
Card Sizes	CR-80 ISO 7810
Connectivity	USB, Ethernet
Operating System	Windows, Linux
Options	Magnetic stripe encoding
Power Requirements	100-240V AC, 50/60Hz
Operating Temperature	15°C to 35°C
Card Thickness	10-40 mil
