P1086708-001 ZXP Series 9 Card Printer Service Manual 289
Replacement Procedures for the Printer
Procedures: Printhead Data Cable
Printhead Data Cable
For replacement, use Kit C/A Printhead Data 105936G-017. Contact Zebra Customer Service at
+01 877-275-9327 for ordering information.

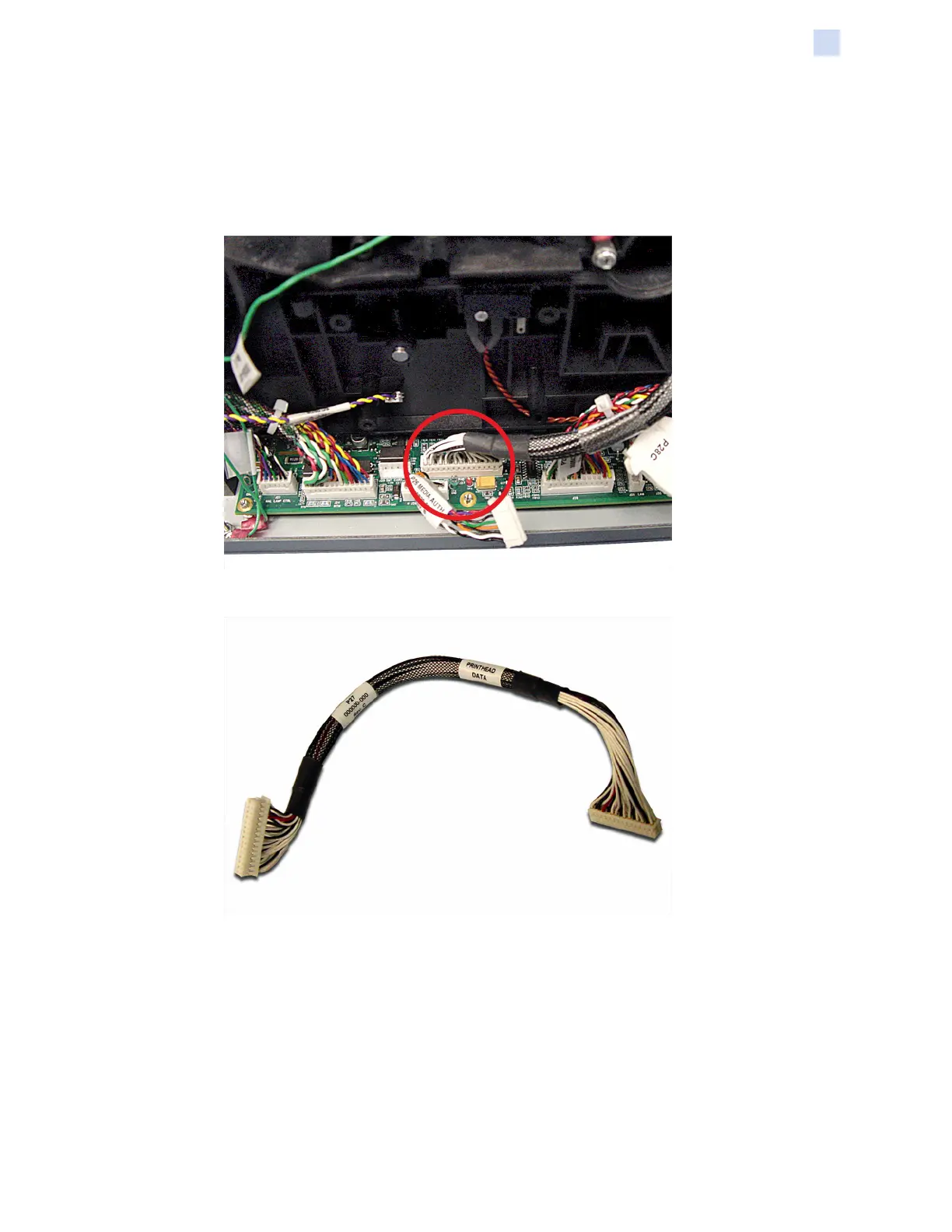

Step 1. Disconnect P27 from J27, PHD DATA (circled below).
Step 2. Remove the printhead data cable assembly.
