282 ZXP Series 9 Card Printer Service Manual P1086708-001
Replacement Procedures for the Printer
Procedures: Platen Roller
Platen Roller
For replacement, use Kit Platen Roller 105936G-039. Contact Zebra Customer Service at
+01 877-275-9327 for ordering information.

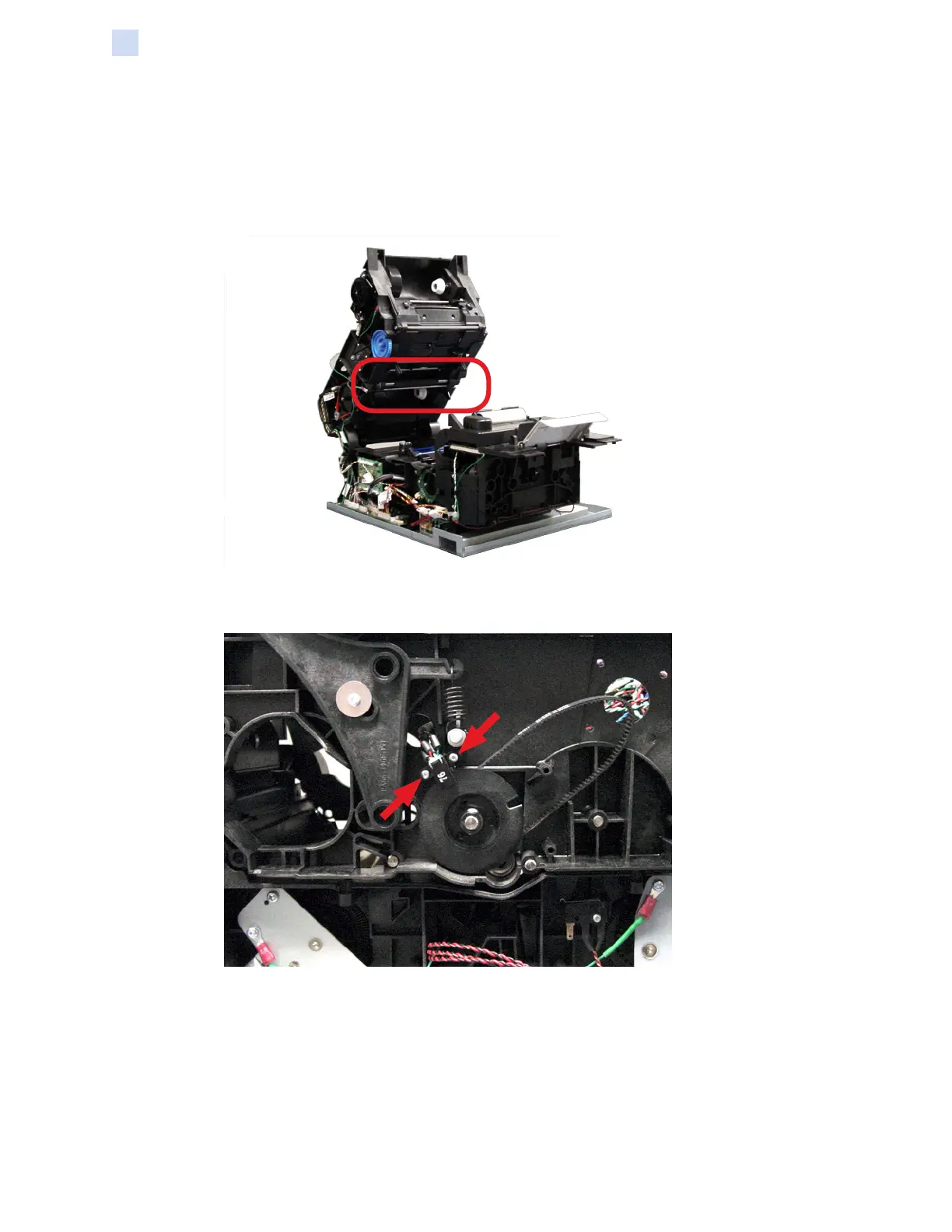

Step 1. Locate the platen roller.
Step 2. With a TORX T6 driver, remove the two screws (arrows below) holding the printhead
cam position sensor in place.
Step 3. Move the sensor aside.
