Replacement Procedures for the Printer
Procedures: Platen Roller

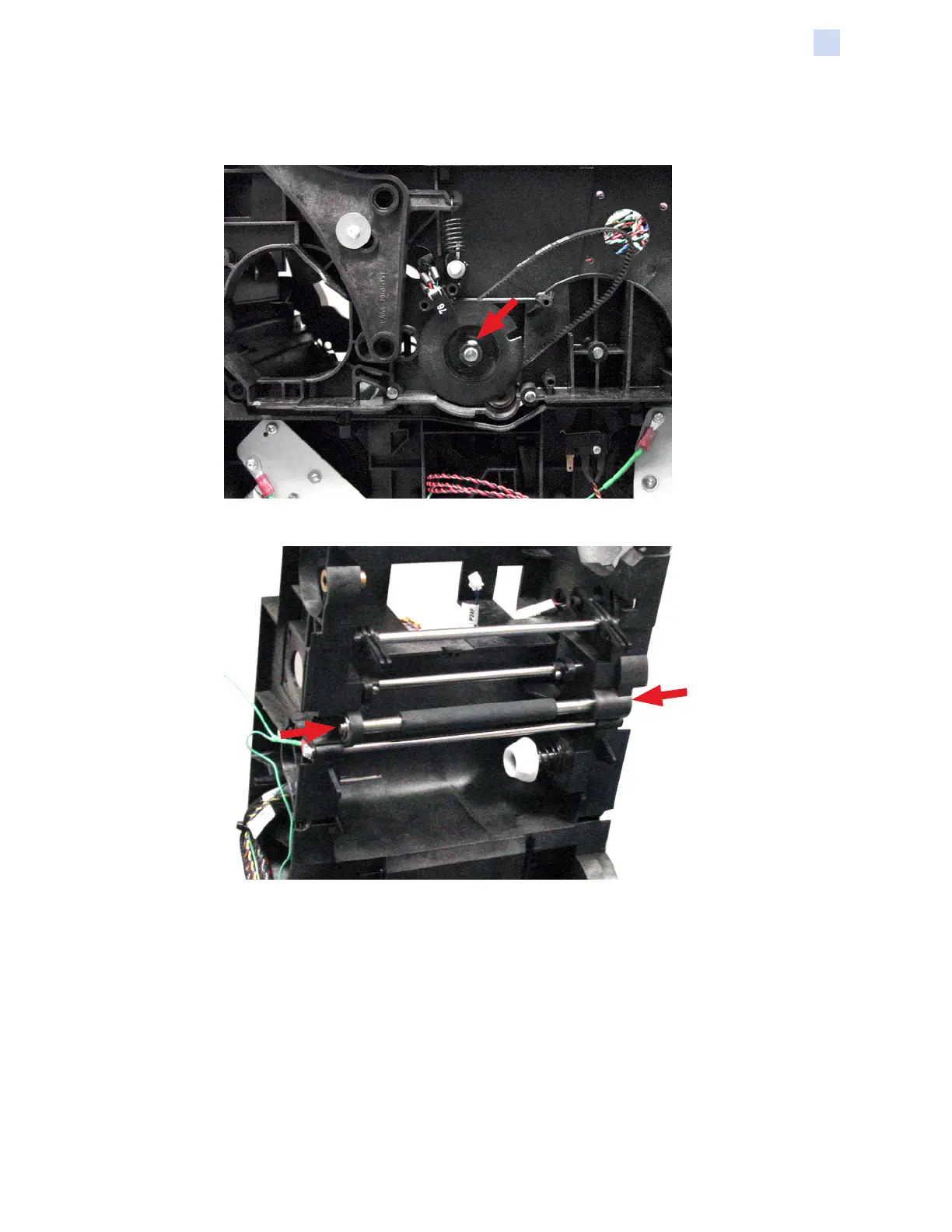

Step 4. With a TORX T8 driver, remove the screw (arrow below) holding the printhead cam
position pulley in place. Slide the pulley off the shaft.
Step 5. Remove the two c-clips (arrows below), one at each end of the platen roller.
Step 6. Remove the platen roller and bearings.

Zebra ZXP 9 Series Specifications

General

Resolution	300 dpi
Card Capacity Output	100 cards
Memory	64 MB
Interface	USB, Ethernet
Operating Humidity	20% to 80% non-condensing
Print Technology	Dye Sublimation
Print Speed YMCK	Up to 190 cards/hour
Card Capacity Input	100 cards
Card Sizes	CR-80 ISO 7810
Connectivity	USB, Ethernet
Operating System	Windows, Linux
Options	Magnetic stripe encoding
Power Requirements	100-240V AC, 50/60Hz
Operating Temperature	15°C to 35°C
Card Thickness	10-40 mil
