Troubleshooting

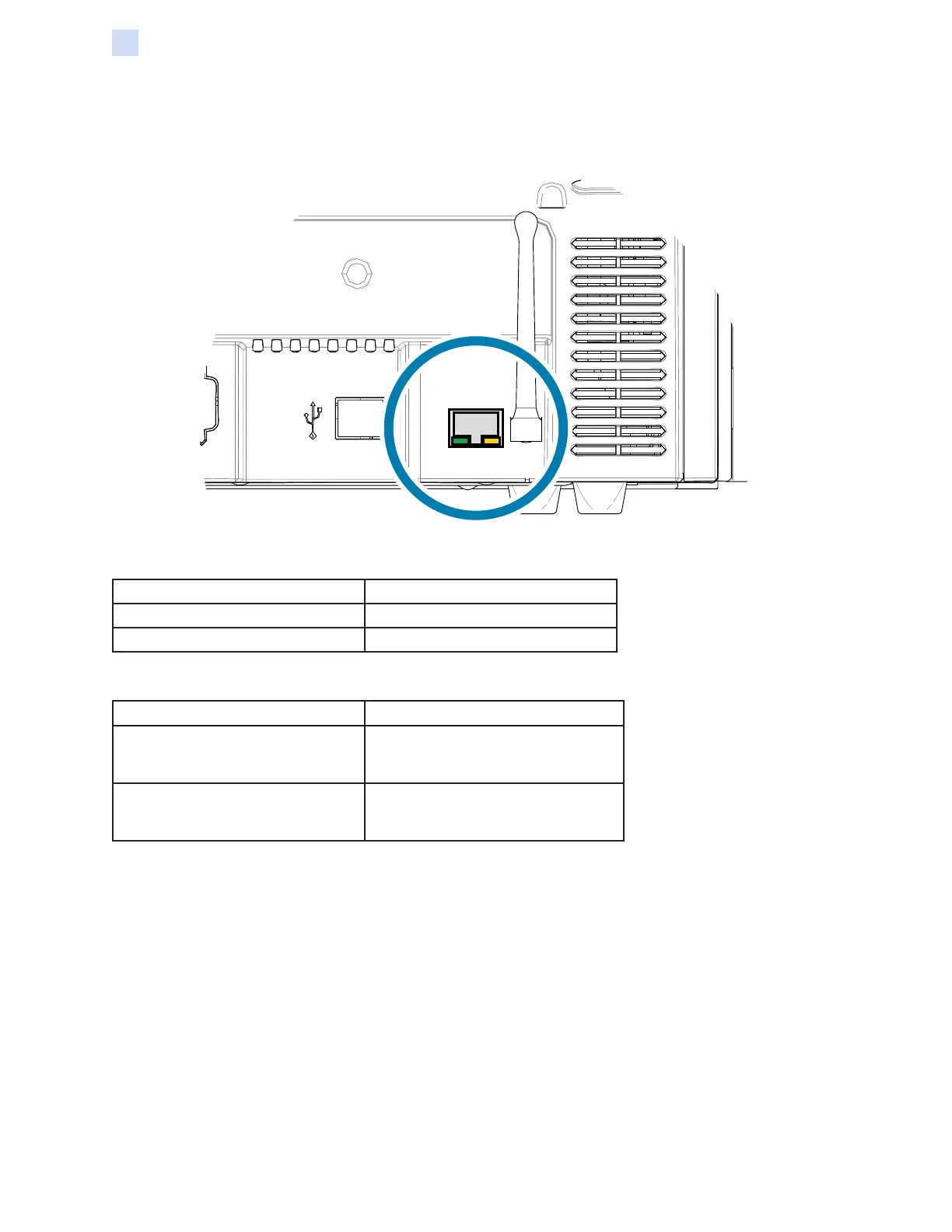

Ethernet Indicators—Detail
Ethernet Indicators—Detail
Link/Activity Indicator (Green)
Off No link (disconnected)
On Network link has been established
Blinking Network activity has been detected
Speed Indicator (Orange)
Off No link (disconnected)
1 Blink
The LED blinks once (one blink, pause,
one blink, etc.) when a 10Base link has
been established.
2 Blinks
The LED blinks twice (two blinks,
pause, two blinks, etc.) when a
100Base link has been established.
If both LEDs are off, the printer has not detected the presence of a network cable. To solve the
problem:
Step 1. Verify that the network cable is appropriate and has an RJ-45 connector.
Step 2. Remove the network cable from the printer. Plug the network cable back in until you
hear a positive click. Check the other end of the cable in the same manner. If the
printer still does not detect a cable, then continue.
Step 3. Connect the printer to a known good network. If the printer is still unable to detect the
network cable, contact Technical Support for assistance
