240 ZXP Series 9 Card Printer Service Manual P1086708-001
Replacement Procedures for the Printer
Procedures: Card Feeder Assembly
Card Feeder Assembly
For replacement, use Kit Card Feeder Assembly 105936G-331. Contact Zebra Customer Service
at +01 877-275-9327 for ordering information.

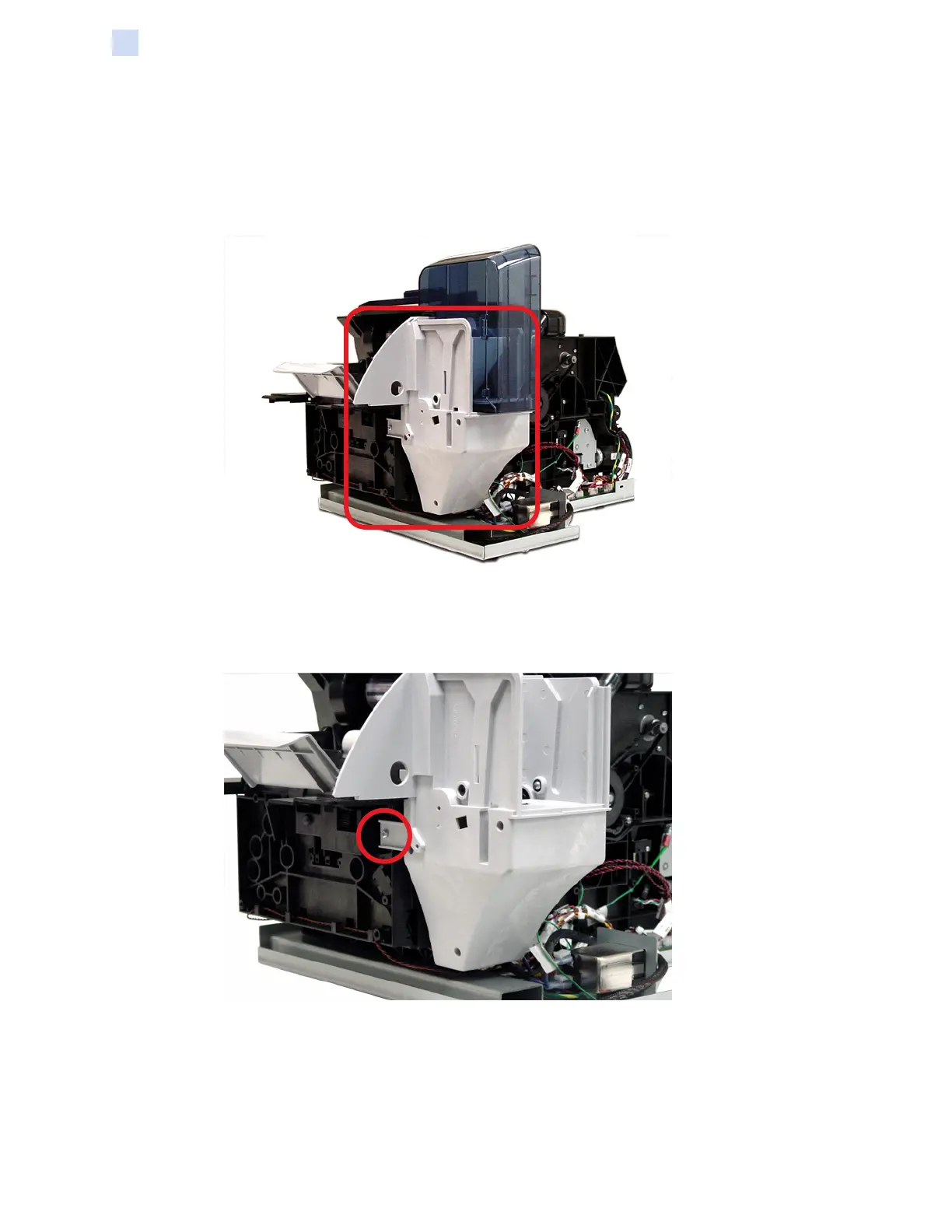

Step 1. Locate the card feeder assembly.
Step 2. If not already done, remove the card cleaning cartridge and input hopper.
Step 3. With a TORX T10 driver, remove the front-side mounting screw (circled below)
holding the card feeder assembly in place.
