Zebra ZXP 9 Series User Manual

304 ZXP Series 9 Card Printer Service Manual P1086708-001
Replacement Procedures for the Printer
Procedures: Ribbon Take-up Assembly
Step 10. Enter the value printed on the High Torque tool.

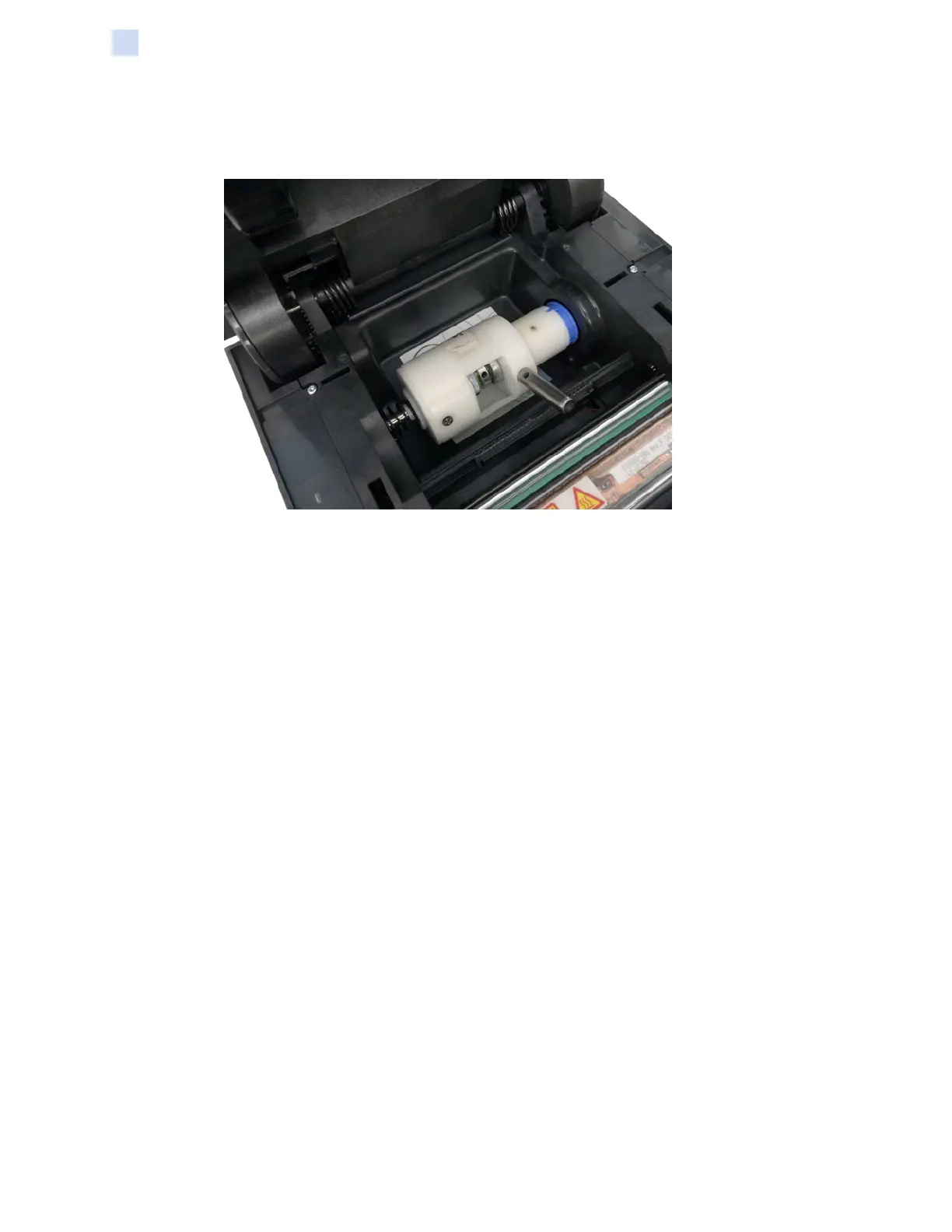

Step 11. Insert the High Torque tool (as shown below) and close the printer door.
Step 12. Click Continue, the Calibration routine will begin.
Step 13. Open the printer door and remove the High Torque tool from the printer.
Step 14. Click Continue.
Step 15. Calibration is complete.

Zebra ZXP 9 Series Specifications

General

Resolution	300 dpi
Card Capacity Output	100 cards
Memory	64 MB
Interface	USB, Ethernet
Operating Humidity	20% to 80% non-condensing
Print Technology	Dye Sublimation
Print Speed YMCK	Up to 190 cards/hour
Card Capacity Input	100 cards
Card Sizes	CR-80 ISO 7810
Connectivity	USB, Ethernet
Operating System	Windows, Linux
Options	Magnetic stripe encoding
Power Requirements	100-240V AC, 50/60Hz
Operating Temperature	15°C to 35°C
Card Thickness	10-40 mil
