P1086708-001 ZXP Series 9 Card Printer Service Manual 287
Replacement Procedures for the Printer
Procedures: Printhead Assembly

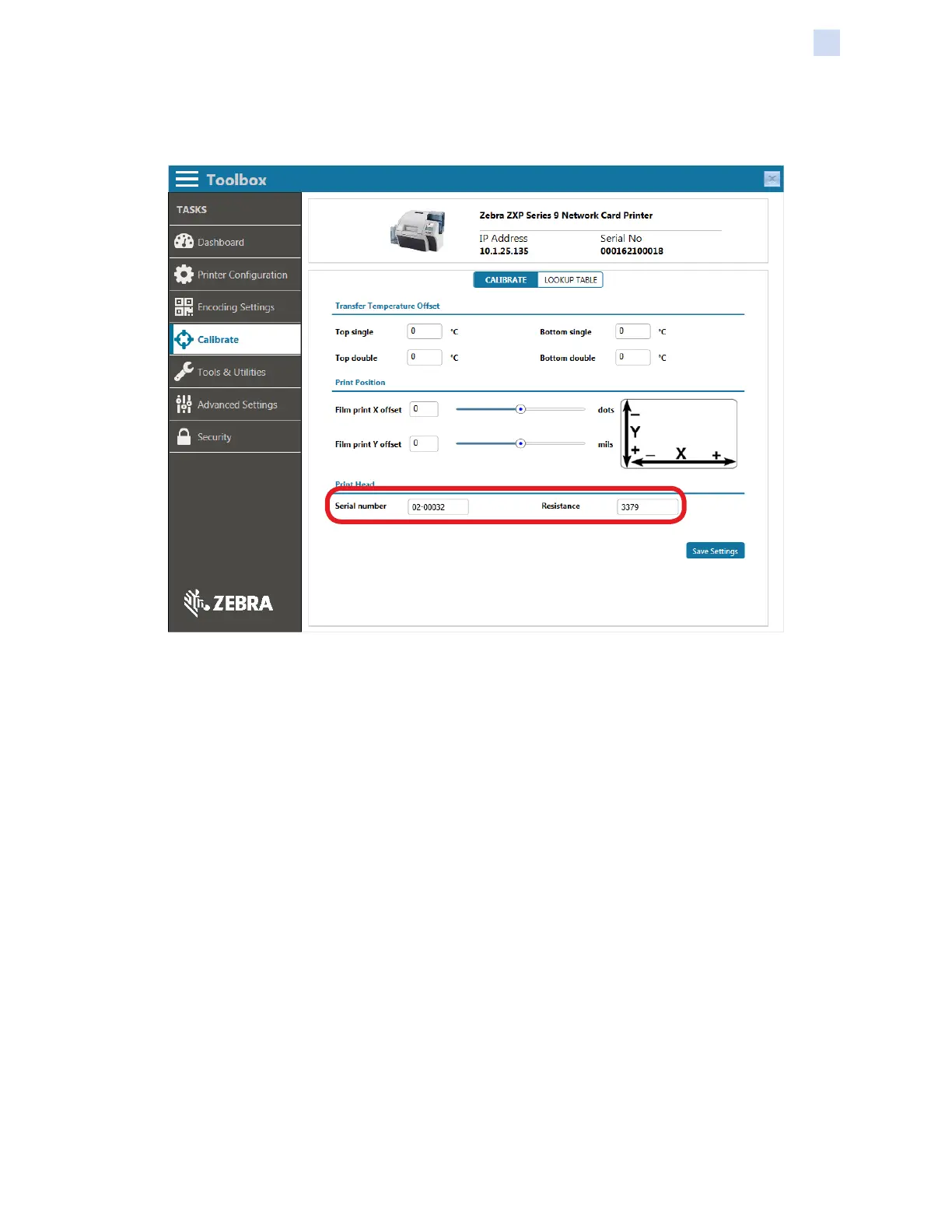

Step 3. From the Toolbox, select the Calibrate tab. From the Calibrate menu, enter the
printhead serial number and resistance in their respective elds (circled below).
Step 4. Click Save Settings.

Zebra ZXP 9 Series Specifications

General

Resolution	300 dpi
Card Capacity Output	100 cards
Memory	64 MB
Interface	USB, Ethernet
Operating Humidity	20% to 80% non-condensing
Print Technology	Dye Sublimation
Print Speed YMCK	Up to 190 cards/hour
Card Capacity Input	100 cards
Card Sizes	CR-80 ISO 7810
Connectivity	USB, Ethernet
Operating System	Windows, Linux
Options	Magnetic stripe encoding
Power Requirements	100-240V AC, 50/60Hz
Operating Temperature	15°C to 35°C
Card Thickness	10-40 mil
