Zebra ZXP 9 Series User Manual

P1086708-001 ZXP Series 9 Card Printer Service Manual 119
Maintenance
Cleaning the Printer

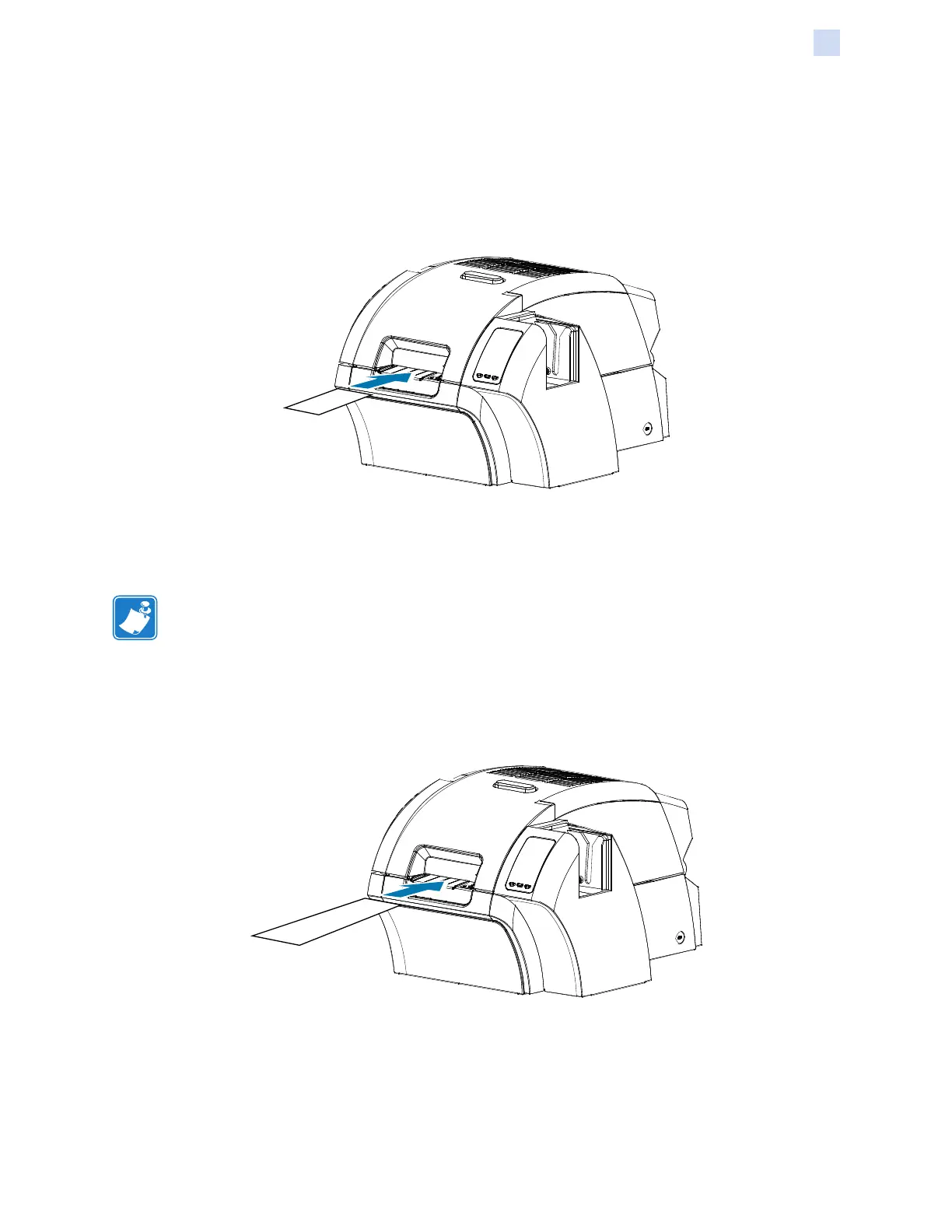

To clean the Y-drive rollers:
Step 1. Select Clean Front Card Path to run the Y-roller cleaning routine.
Step 2. Use the Y-roller cleaning card.
Step 3. Follow the OCP instructions.
Step 4. When complete, the OCP will return to the Clean Printer Menu.
To clean the heated rollers:
Note • To avoid a long wait while the heated rollers cool to 70°C, perform cleaning before
the rollers heat up (i.e., when rst turned on and the rollers are still cold).
Step 1. Select Clean Transfer Path to run the heated roller cleaning routine.
Step 2. Use the hot roller cleaning card.
Step 3. Follow the OCP instructions.
Step 4. When complete, the OCP will return to the Clean Printer Menu.

Zebra ZXP 9 Series Specifications

General

Resolution	300 dpi
Card Capacity Output	100 cards
Memory	64 MB
Interface	USB, Ethernet
Operating Humidity	20% to 80% non-condensing
Print Technology	Dye Sublimation
Print Speed YMCK	Up to 190 cards/hour
Card Capacity Input	100 cards
Card Sizes	CR-80 ISO 7810
Connectivity	USB, Ethernet
Operating System	Windows, Linux
Options	Magnetic stripe encoding
Power Requirements	100-240V AC, 50/60Hz
Operating Temperature	15°C to 35°C
Card Thickness	10-40 mil
