Setting Custom Card Specications
Adjustments

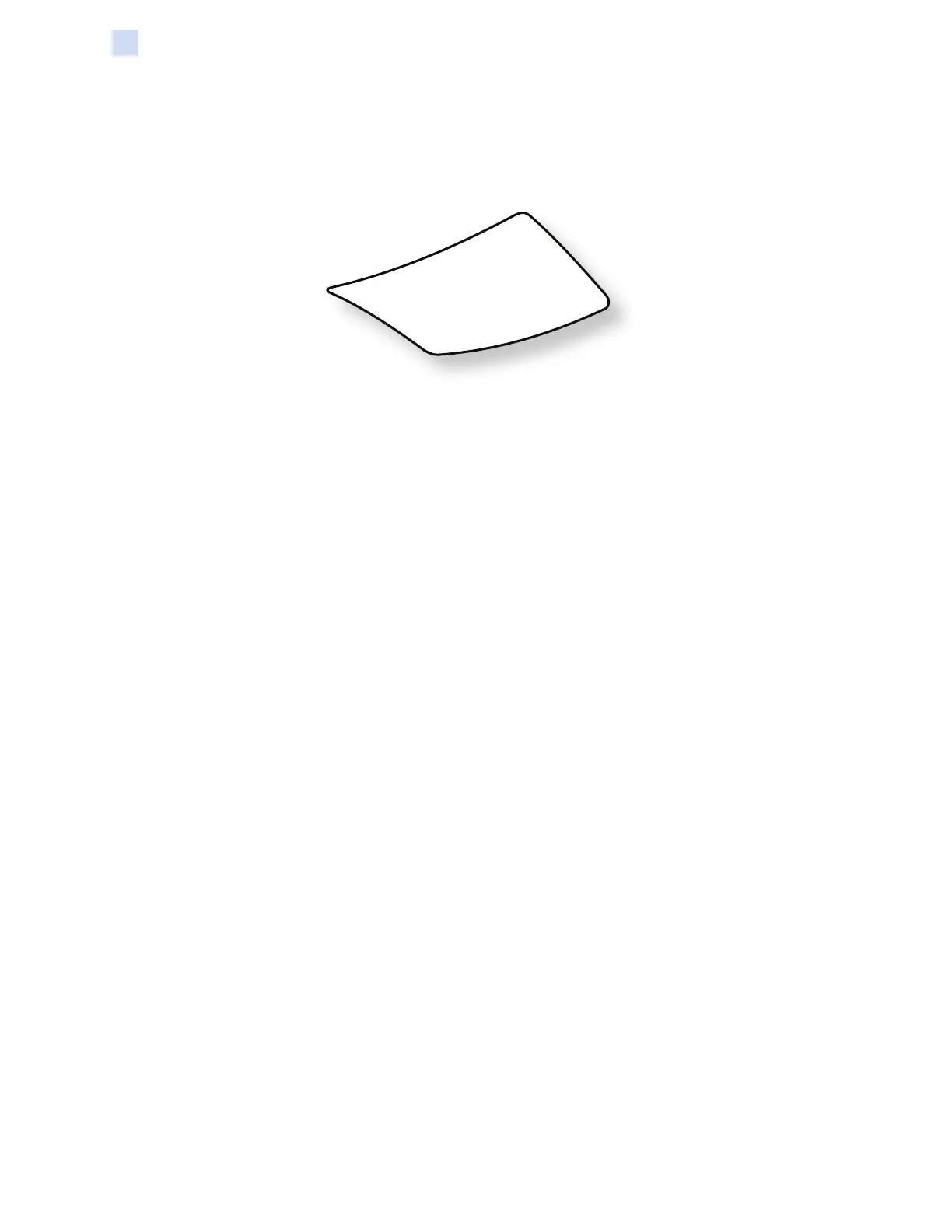

Edges curled up
Warpage is usually caused by too much energy being transferred to the card (i.e., the temperatures
are too hot or the speeds are too slow).
Decrease Front Transfer Temperature
Step 1. From the Card Specications window, make a note of the default transfer output
speed settings.
Step 2. Decrease the appropriate (Single or Double side) front transfer temperature by 5.
Step 3. Click OK.
Step 4. Print a test card (see “Printing a Test Card” on page 42).
Step 5. Examine the test card.
y If there is noticeable improvement, repeat Steps 2–4 until the problem is corrected
or there is no more improvement.
y If there is no noticeable improvement after a number of cycles, return the value to
its default setting and go to next correction.
Increase Back Transfer Temperature
Step 1. From the Card Specications window, make a note of the default back transfer
temperature settings.
Step 2. Increase the appropriate (Single or Double side) back transfer temperature by 5.
Step 3. Click OK.
Step 4. Print a test card (see “Printing a Test Card” on page 42).
Step 5. Examine the test card.
y If there is noticeable improvement, repeat Steps 2–4 until the problem is corrected
or there is no more improvement.
y If there is no noticeable improvement after a number of cycles, return the value to
its default setting and go to next correction.

Zebra ZXP 9 Series Specifications

General

Resolution	300 dpi
Card Capacity Output	100 cards
Memory	64 MB
Interface	USB, Ethernet
Operating Humidity	20% to 80% non-condensing
Print Technology	Dye Sublimation
Print Speed YMCK	Up to 190 cards/hour
Card Capacity Input	100 cards
Card Sizes	CR-80 ISO 7810
Connectivity	USB, Ethernet
Operating System	Windows, Linux
Options	Magnetic stripe encoding
Power Requirements	100-240V AC, 50/60Hz
Operating Temperature	15°C to 35°C
Card Thickness	10-40 mil
