274 ZXP Series 9 Card Printer Service Manual P1086708-001

Replacement Procedures for the Printer

Procedures: Media Auth Coupler PCBAs

Ribbon Coupler PCBA

For replacement, use Kit PCBA M.A.C. Ribbon 105936G-054. Contact Zebra Customer Service at

+01 877-275-9327 for ordering information.

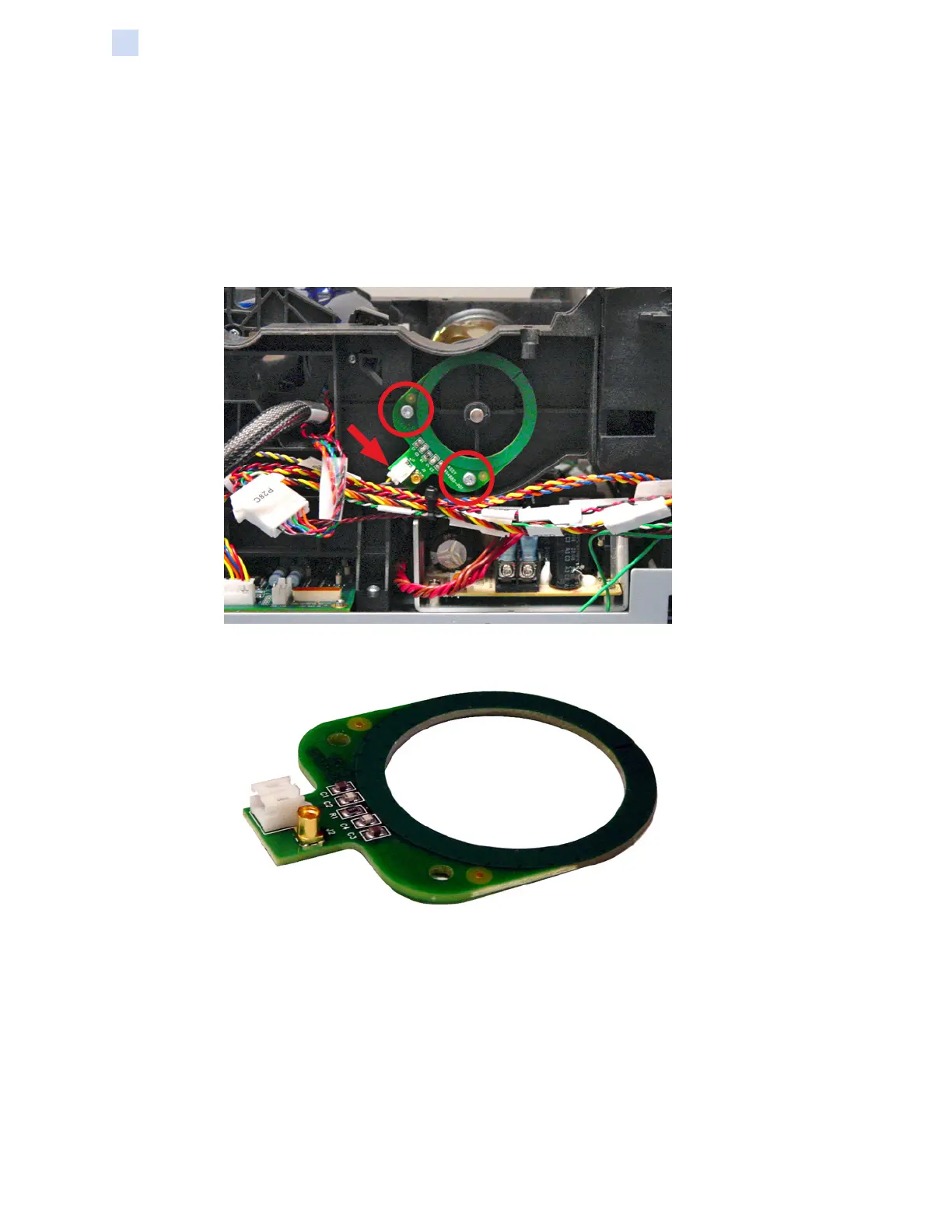

Step 1. Disconnect the plug (arrow below) to the ribbon coupler PCBA.

Step 2. With a TORX T10 driver, remove the two screws (circled below) holding the ribbon

coupler PCBA in place.

Step 3. Remove the ribbon coupler PCBA.
