P1086708-001 ZXP Series 9 Card Printer Service Manual 21
Setup
Loading the Laminate

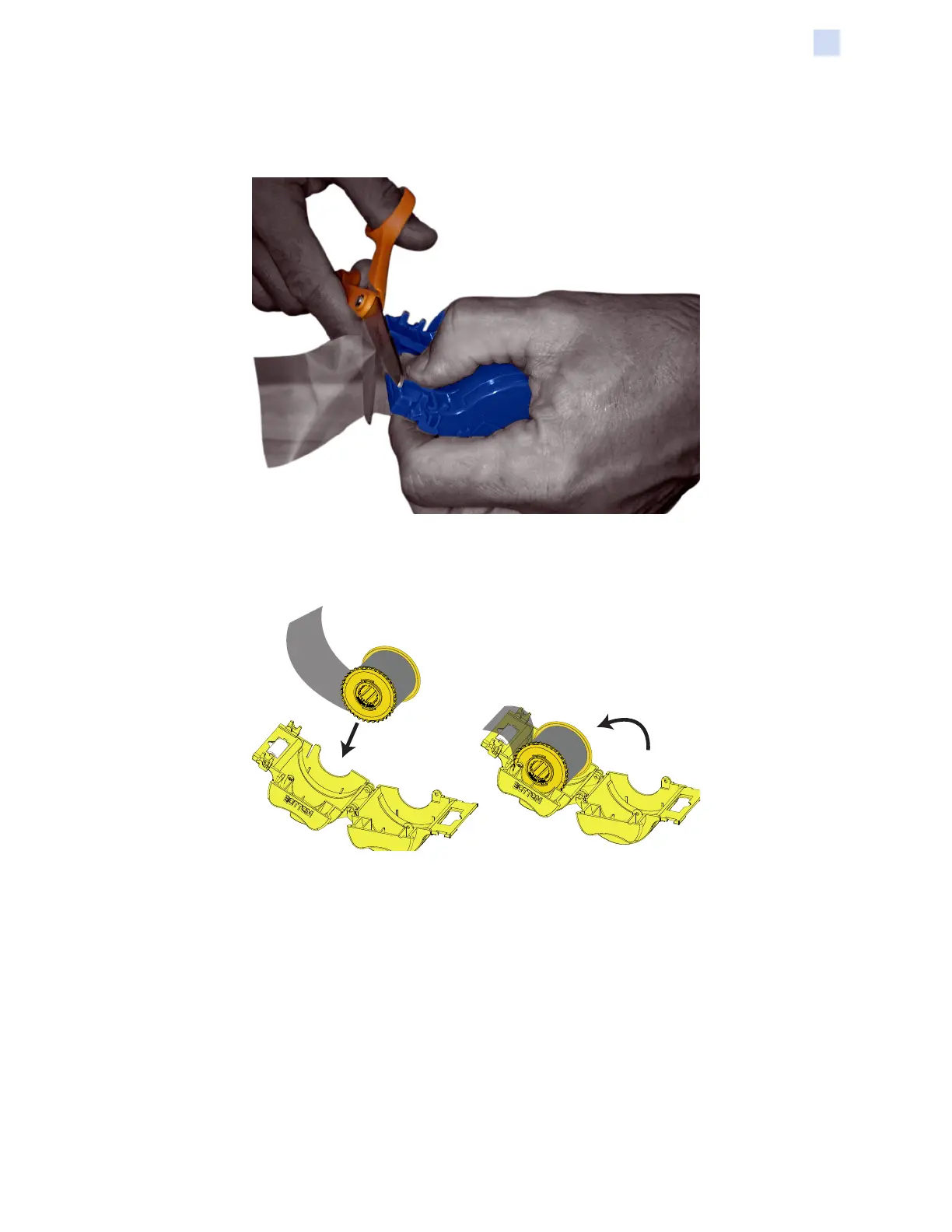

Step 6. Cut the laminate square (as close to perpendicular as possible) with scissors. Hold
the scissors in one hand. Hold the cassette with the other hand. Press the laminate
rmly against the white roller thereby keeping the laminate from moving while cutting.
Step 7. Remove a second new roll of laminate from its packaging and place it in the lower
laminate cassette—note the orientation of the laminate spool with respect to the
laminate cassette as shown in the gure below.
Step 8. Pull out an inch or two of laminate past the lip of the cassette.
Step 9. Close the cassette—press the two halves of the cassette together until it clicks.
