Replacement Procedures for the Printer
Procedures: Printer Lock

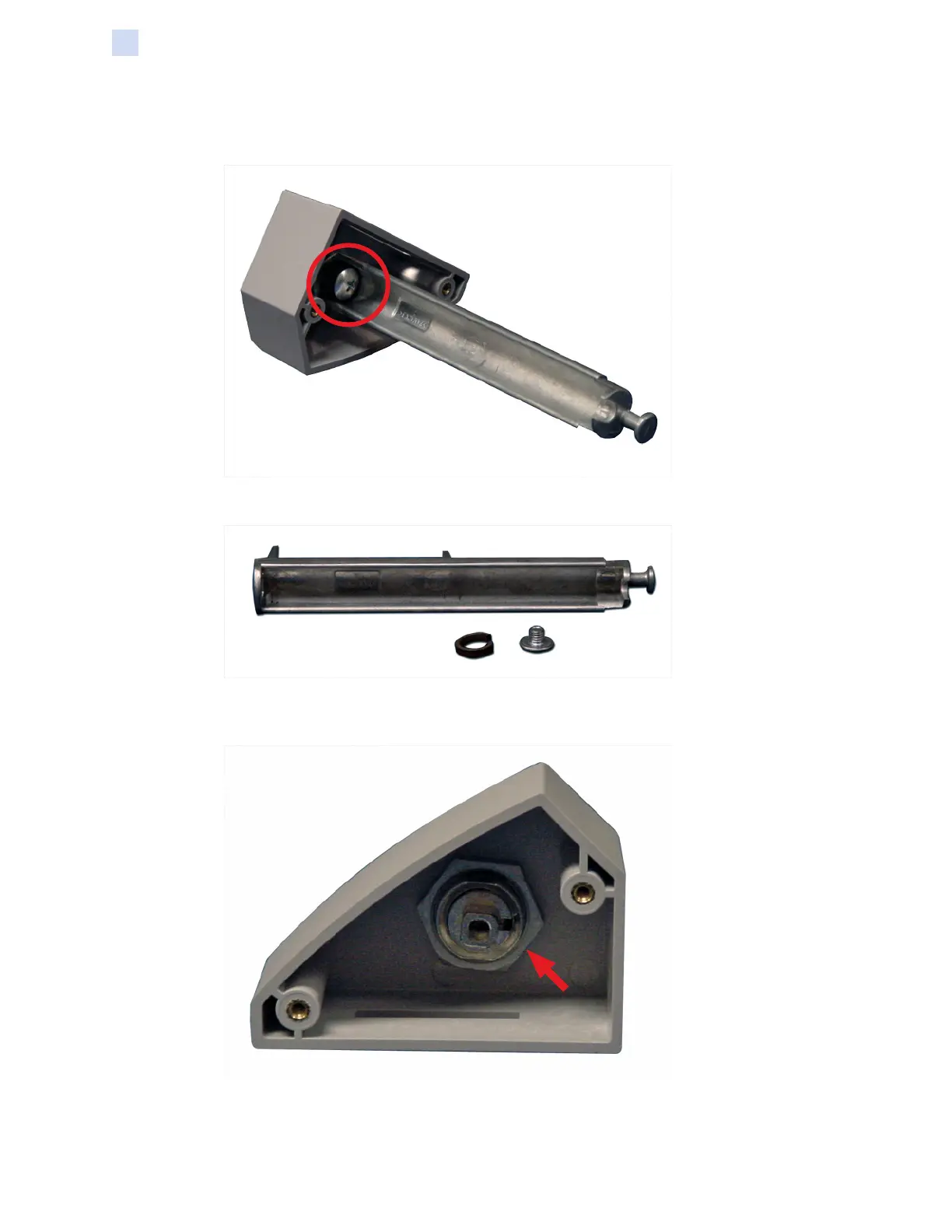

Step 4. With a Phillips screwdriver, remove the screw (circled below) and associated lock
washer holding the camshaft lock to the lock housing.
Step 5. Set the camshaft lock and hardware aside.
Step 6. With an adjustable wrench, remove the large nut (arrow below) holding the lock
cylinder cam to the lock housing.
