P1086708-001 ZXP Series 9 Card Printer Service Manual 379
Replacement Procedures for the Laminator
Procedures: Cassette Latch Assembly (Top & Bottom)

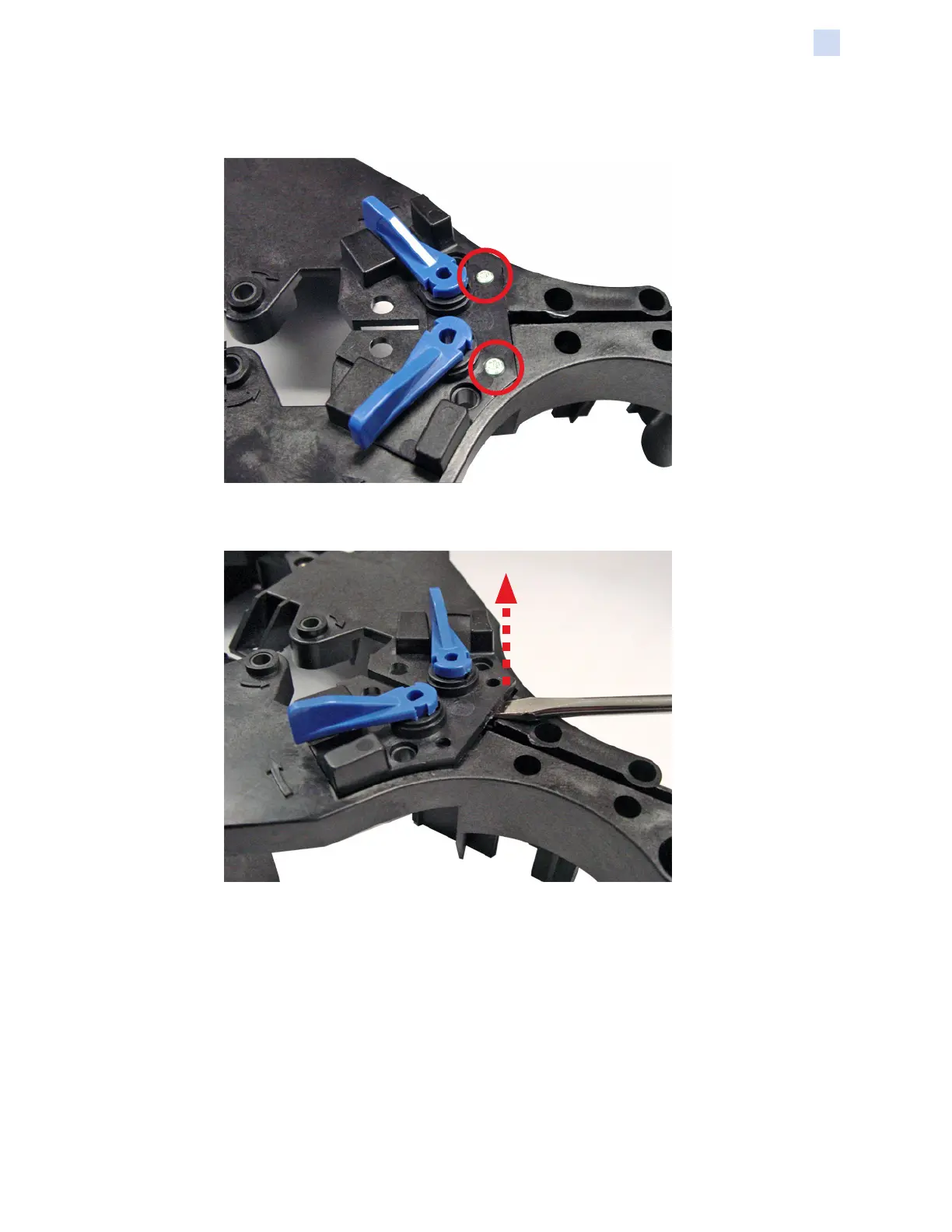

Step 4. With a TORX T10 driver, remove the two screws (circled below) holding the latch
plate in place.
Step 5. With a small at-blade screwdriver, carefully lift and free the latch plate. Note that
some force is required.
