398 ZXP Series 9 Card Printer Service Manual P1086708-001
Replacement Procedures for the Laminator
Procedures: Cutters (Upper & Lower)
Lower Cutter
For replacement, use Kit Assy Cutter Lower 105936G-508. Contact Zebra Customer Service at
+01 877-275-9327 for ordering information.
For this procedure you will need to free (i.e., remove the four mounting screws), but not disconnect,
the laminator controller PCBA.

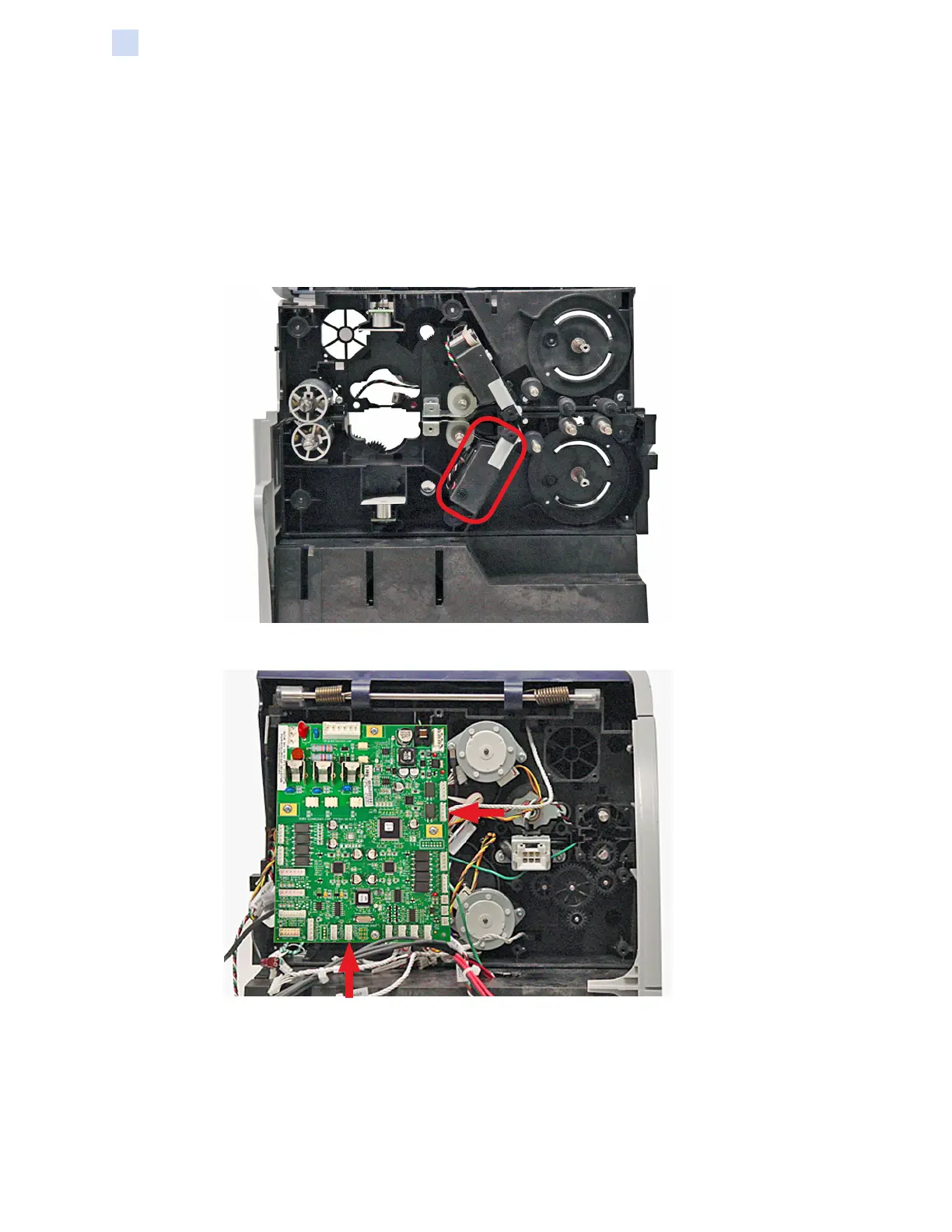

Step 1. Locate the lower cutter (front view, front frame removed).
Step 2. Disconnect the cutter plug at J21 and the sensor plug at J24 (arrows below).
