Zebra ZXP 9 Series

412 ZXP Series 9 Card Printer Service Manual P1086708-001
Replacement Procedures for the Laminator
Procedures: Base-Frame Separation

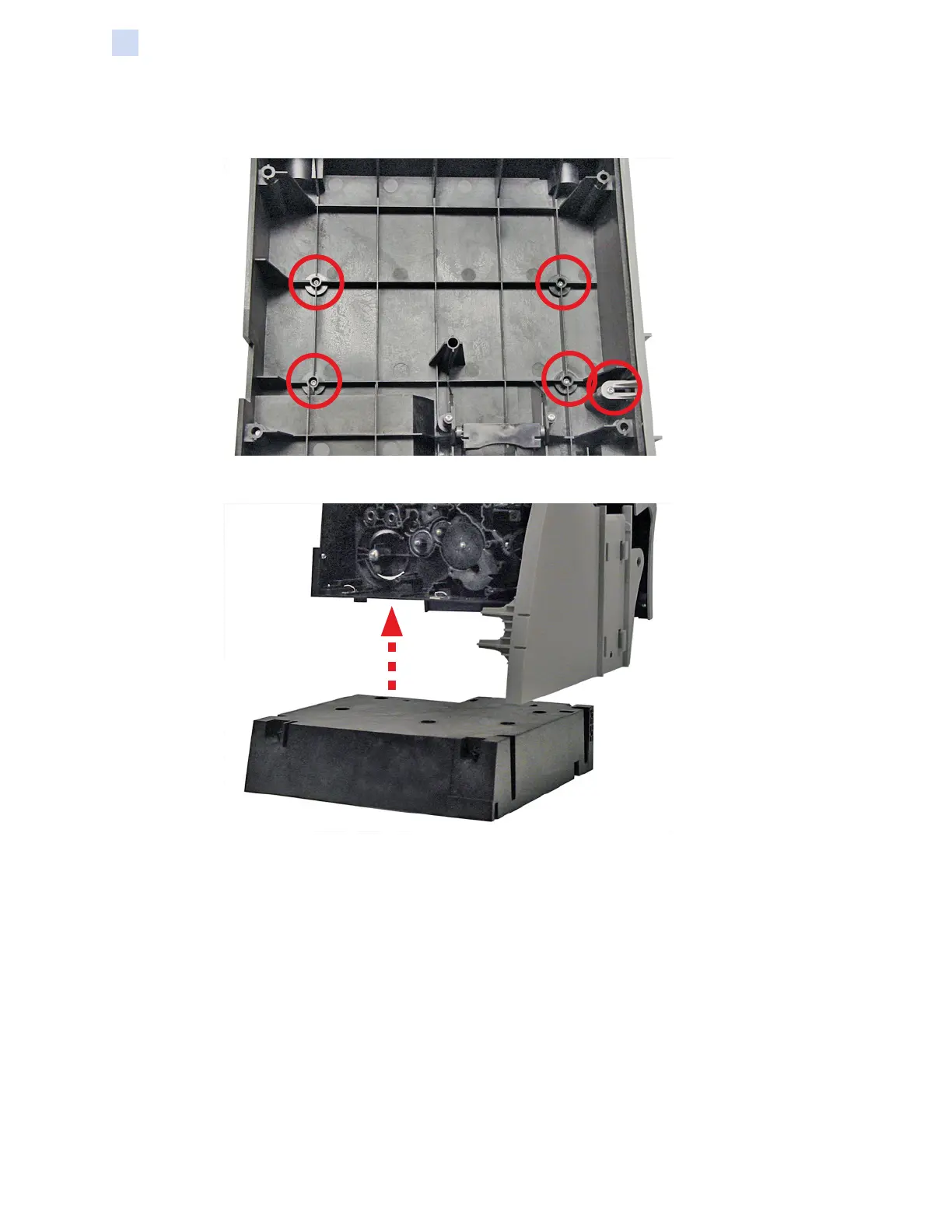

Step 4. With a TORX T10 Driver, remove the ve screws (circled below) holding the frame to
the base.
Step 5. Separate the frame from the base.
