Replacement Procedures for the Laminator
Procedures: Door Latch

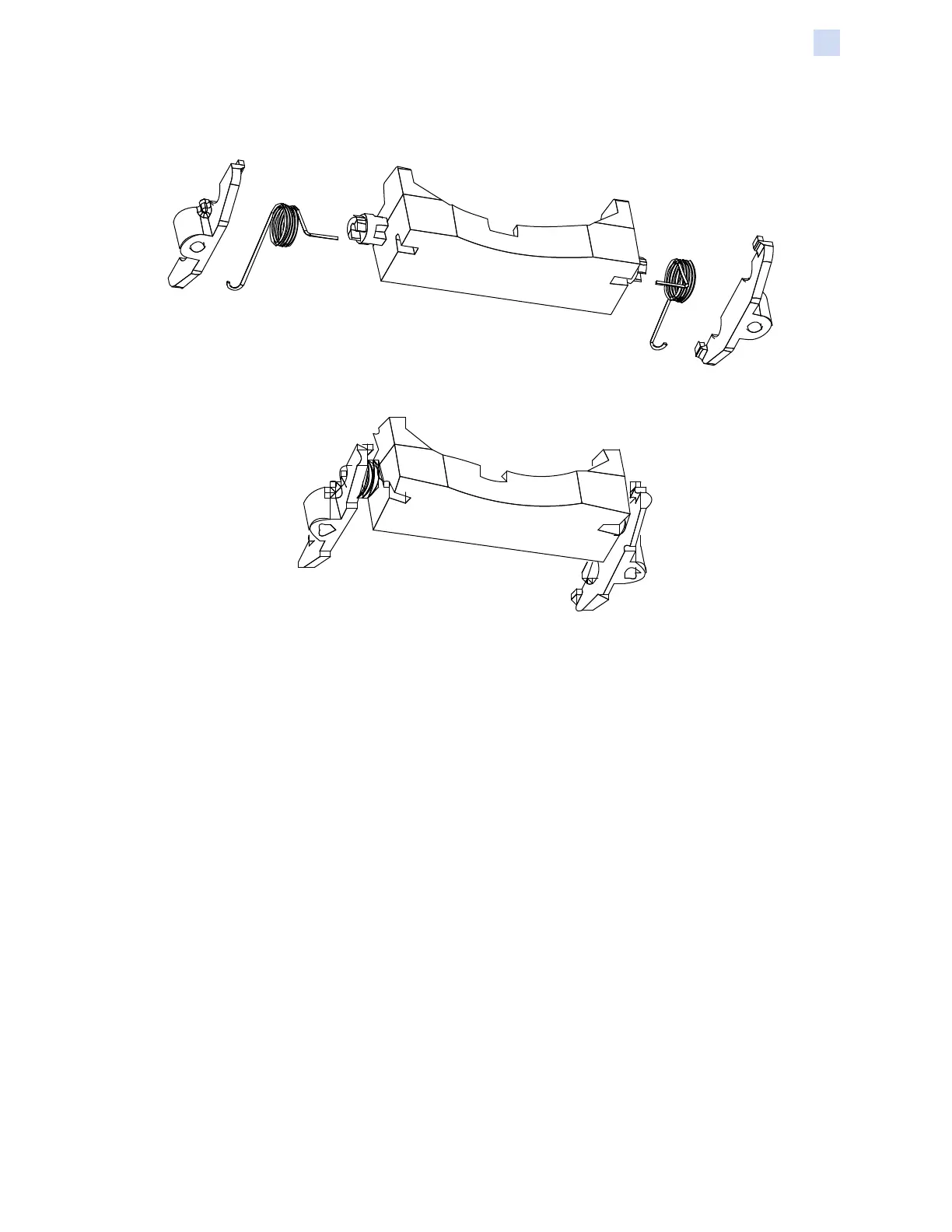

Step 4. When reassembling the door latch, note the orientation of the parts as shown in the
gure below.
Step 5. The following gure shows the fully assembled door latch.
