Pattern typePattern type
Select the requested pattern. Refer to Pattern type in "Transmitter Setup".
For testing of data rates from 64 kbps to 2 Mbps in a 2 Mbps line, ITU-T O.150
recommends PBRS 11 to be used. For testing at the 2 Mbps rate, PRBS 15 is
recommended in ITU-T O.150.
Select 'Normal' or 'Inverse' pattern type.
Touching the 'ITU standard' button will apply ITU-T O.150 recommended
Pattern typePattern type for N x 64 kbps data rates (PRBS 11).
User patternUser pattern
User pattern field is enabled if Pattern type is set to User [32] bitUser [32] bit or User [2084]User [2084]
bitbit. Touch the User patternUser pattern field and use the launched Pattern EditorPattern Editor dialog box
to define the user pattern. Depending on the selected pattern type, different
user pattern setup options will be available.
The length can be any length from 1 bit to 32 bits or from 1 bit to 2048 bits.
Pattern time slotsPattern time slots

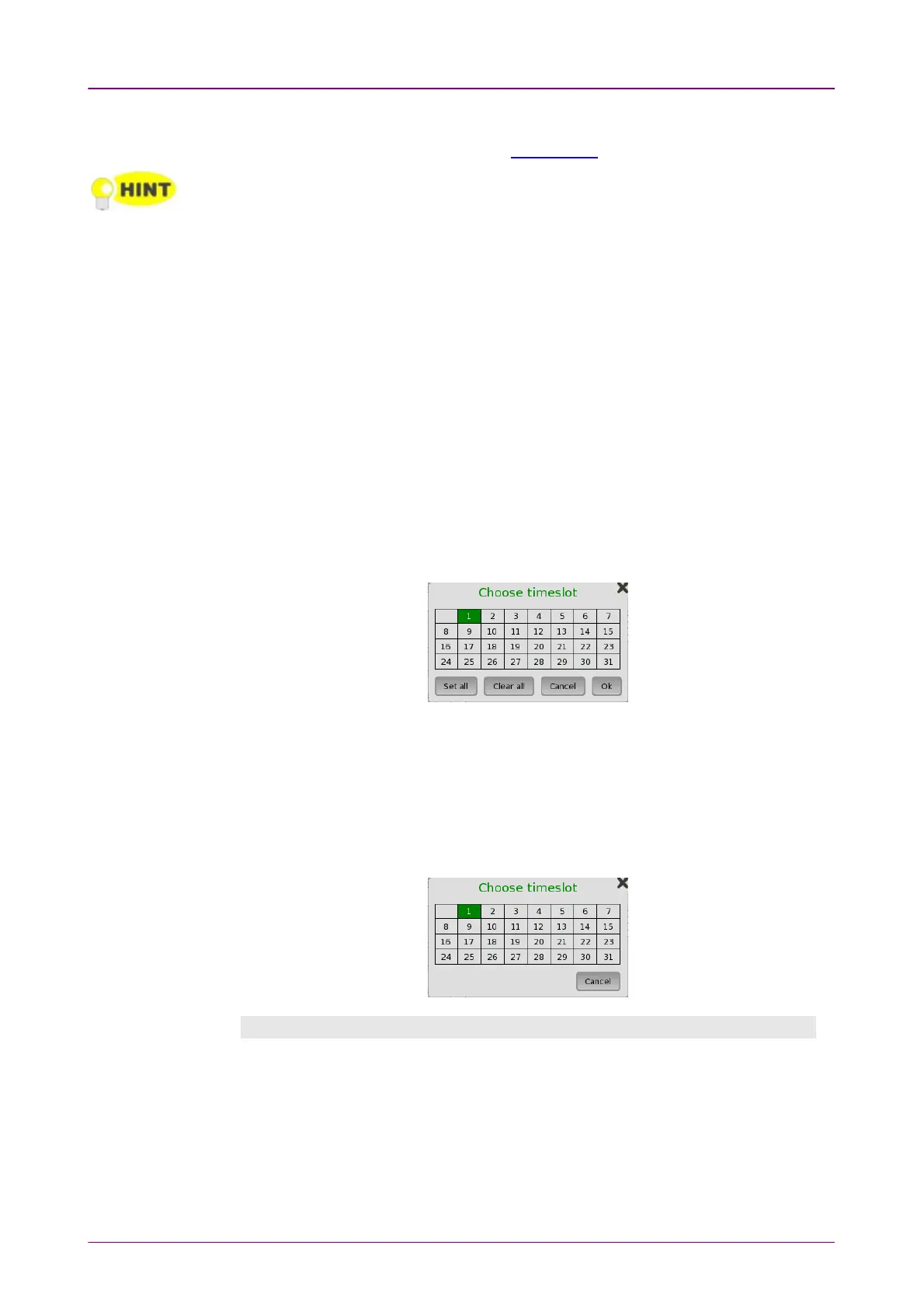

Touch the Pattern time slotsPattern time slots graphics and use the launched dialog box to select
the timeslot which will receive the Channel Content signal. Set and clear
timeslots as relevant.
AudioAudio
Use the AudioAudio drop-down menu and select the features for the receiver
decoding. Select OnOn to enable the audio decoding or OffOff to disable.
Audio Time SlotAudio Time Slot
Touch the Audio Time SlotAudio Time Slot graphics and use the launched dialog box to select
the timeslot.
CAS tab pageCAS tab page
The CASCAS tab page contains the following parameters:
