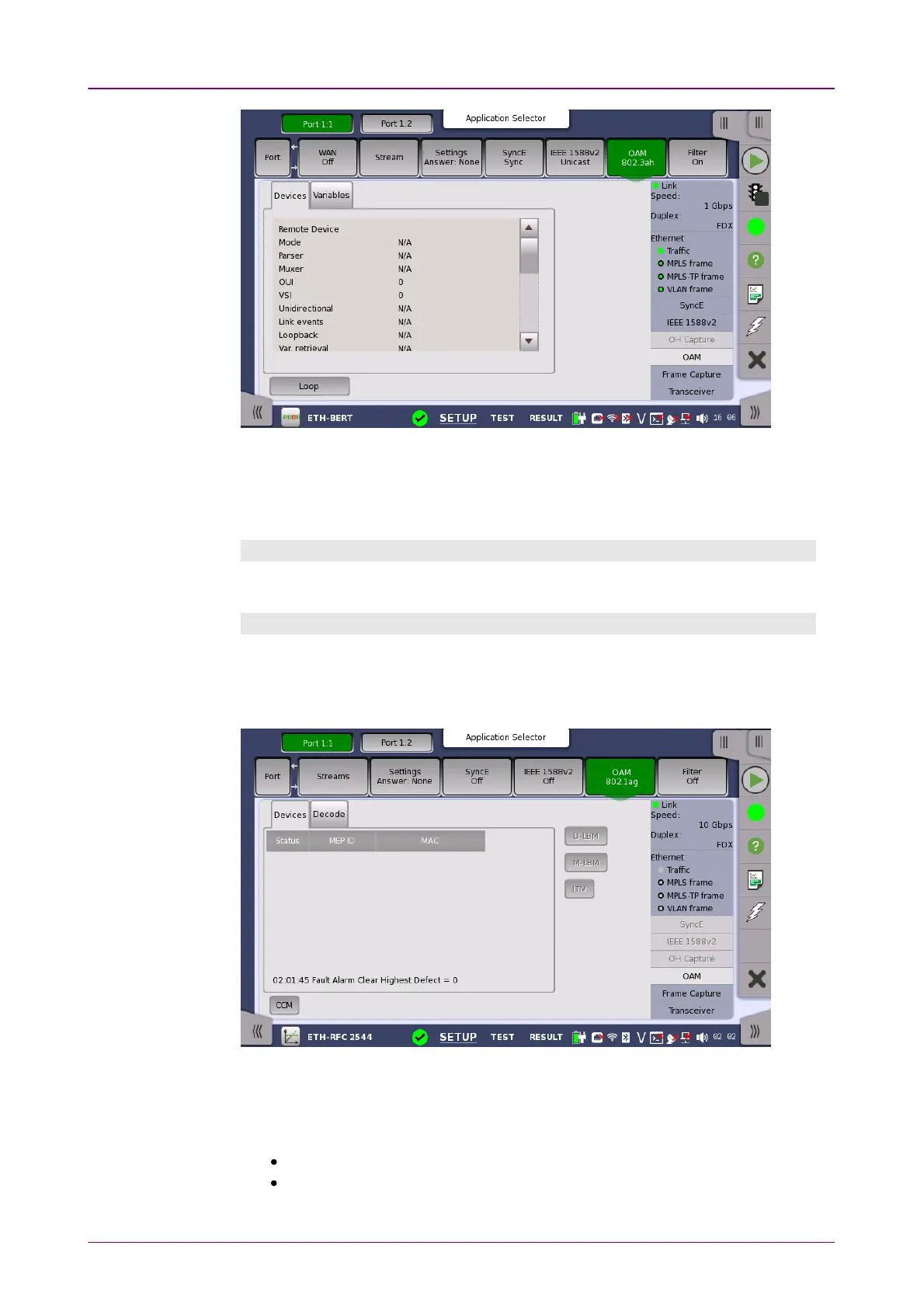

802.3ah status802.3ah status
informationinformation
802.1ag status802.1ag status
informationinformation
Loop buttonLoop button
Touch the LoopLoop button to send the far-end device into loopback mode and
reflect frames.
Devices tab pageDevices tab page
Shows the status of the remote and local devices.
Variables tab pageVariables tab page
On the VariablesVariables tab page you can request various variables. Select the relevant
variable from the drop-down menu and then touch the RequestRequest button.
Message buttonsMessage buttons
Allows you to send messages either to a remote MEP ID or to a unicast MAC
Address.
U-LBMU-LBM: Data-path integrity to/from the far-end to/from one address (unicast).
M-LBMM-LBM: Data-path integrity to/from the far-end to/from multiple addresses
(multicast).
Ethernet ApplicationsEthernet Applications
268268
