Studying a specificStudying a specific
resultresult
Selecting notationSelecting notation
OTN options appear if the Ethernet signal is carried by OTN.

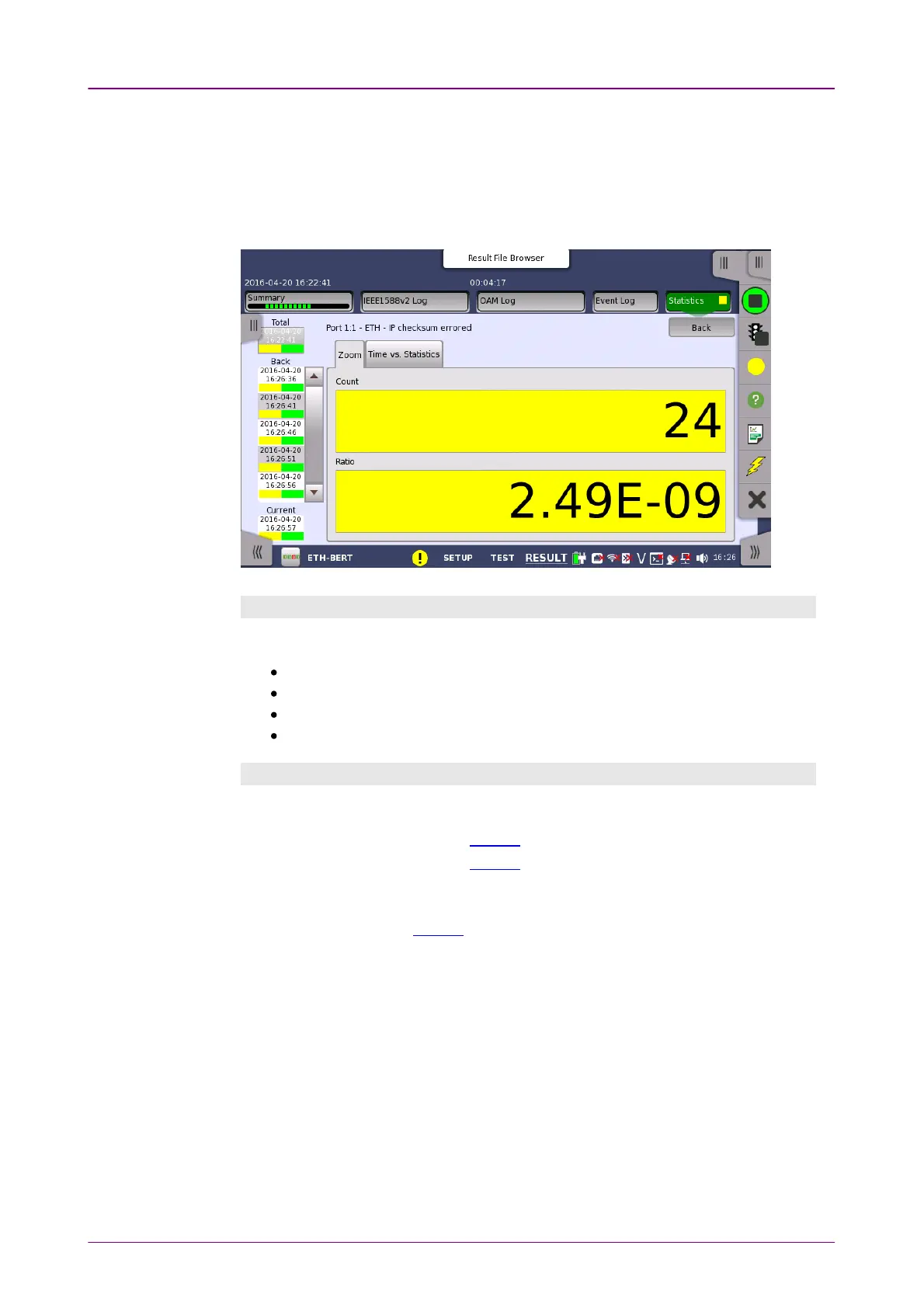

Touch a specific cell in a result table to zoom in on the corresponding result
item. The CountCount and RatioRatio fields are displayed on a ZoomZoom tab page. A Time vs.Time vs.
StatisticsStatistics tab page is also available. Use the BackBack button or touch the zoom
filed to return to the statistics screen.
Selecting how results are displayedSelecting how results are displayed
Select the required notation for the results from the notation drop-down menu.
UnformattedUnformatted - e.g. 71892
SI prefixSI prefix - e.g. 71.892 k (k means "kilo")
EngineeringEngineering - e.g. 71.892E3
ScientificScientific - e.g. 7.1892E4
ResultsResults
The result items varies depending on the configuration in Ports Setup screen.
OTN Alarms/Errors Refer to Results in "OTN Application"
OTN Performance Refer to Results in "OTN Application"
BERT Results BERT
Service disruption
M.2100
Throughpu
Performance Results Frequency *
Utilization
Throughpu
Frame rate
Frame Results Alarms
Good Frames
Errored Frames
Layer3 Error
Other Frames
Last Received
Frame diff.
Burst Results Frames
