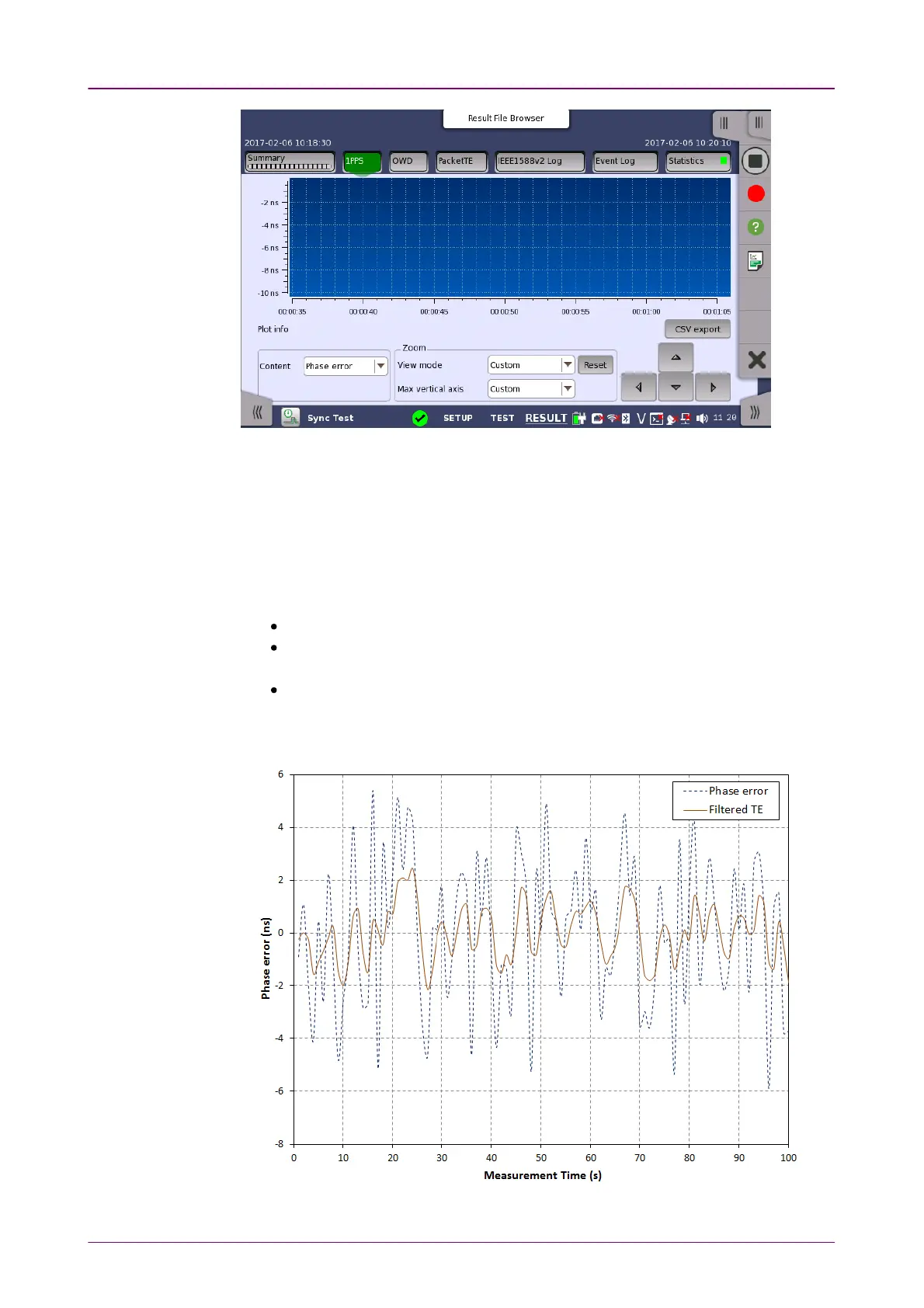

In this screen, the 1PPS test results are displayed as a graph, showing the
positions of a time error over time.
CSV exportCSV export
Outputs measurement results in CSV format.
ContentContent
Select the contents corresponding to the test to display.
Phase errorPhase error: Phase error (time difference) between two 1PPS signals.
Filtered TEFiltered TE: Displays the Phase error waveform passed through the low pass
filter.
DeviationDeviation: Pulse period deviation of the 1PPS signal under test.
When selecting Filtered TEFiltered TE, noise will be suppressed as shown in the following
figure.
