4.1 Display Area
4-3
4.1 Display Area
This section explains the contents displayed on LCD of MT8820A. Display posi-
tion is determined according to the display contents.
4.1.1 Names and positions in display area
The screen consists of the following seven display areas. Some areas are not dis-
played depending on the operation statuses.
1
2
3
4
5
6
7

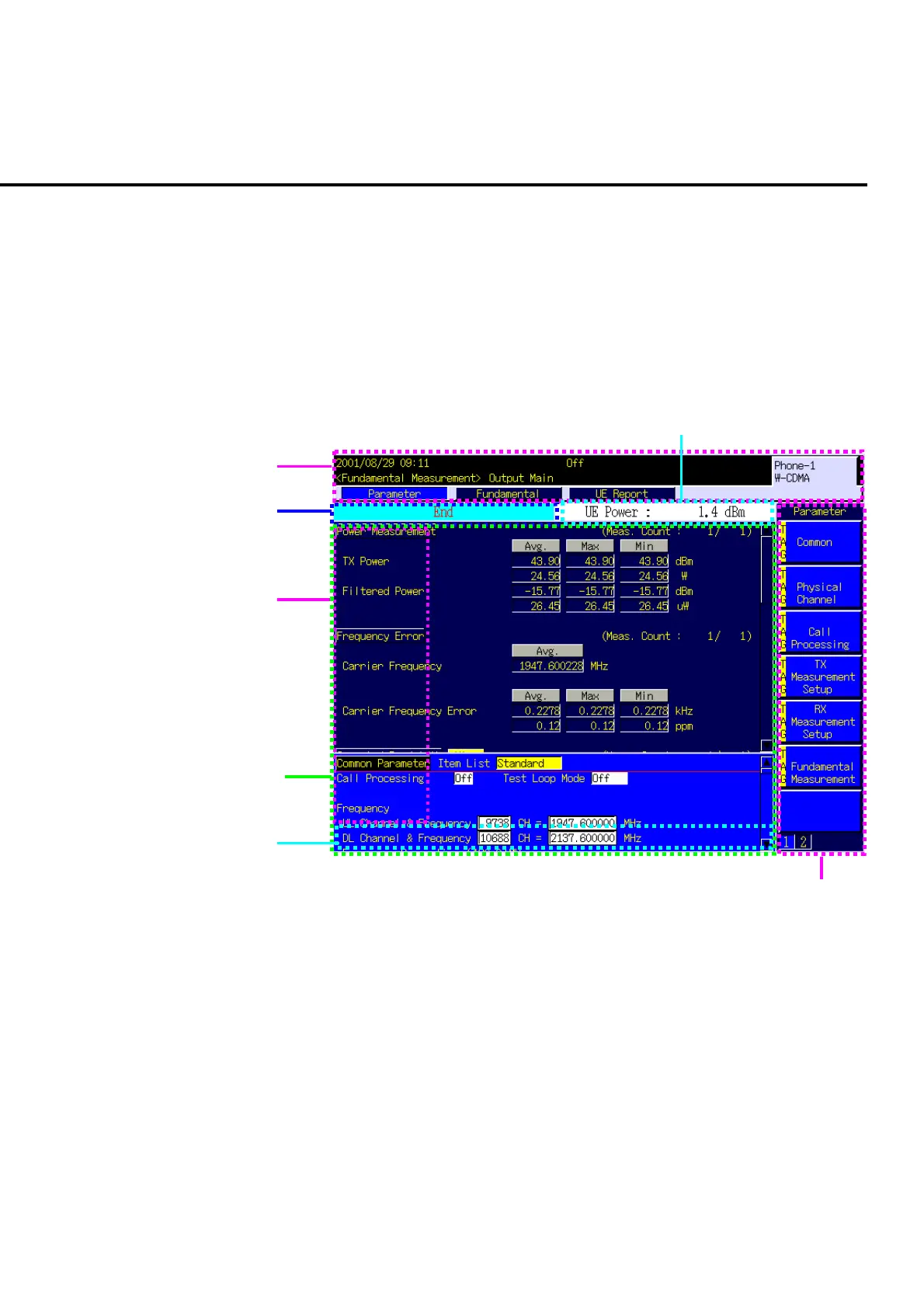

Fig. 4-1-1-1 Display area
1. Status area (Refer to 4.1.2)
2. Measurement-indicator/ Error-status area (Refer to 4.1.3)
3. User menu area (Refer to 4.1.4)
4. Window area (Refer to 4.1.5)
5. Entry area (Refer to 4.1.6)
6. Function menu area (Refer to 4.1.7)
7. Transmission-power monitor-value area (Refer to 4.1.8)
