Anritsu MT8820A - VSWR Value for AUX Output Connector

9.1 Performance Test
9-9
9.1.6 VSWR value for AUX output connector
The test on VSWR value for AUX output connector is explained here.
(1) Test object specifications
Table 9-1-6-1 Specification of VSWR value for AUX output
connector Main input/output connector
Item Specification
VSWR ≤1.3 (at SG output level ≤−10 dBm)
(2) Setup
Connect the equipment as shown in Fig. 9-1-6-1.
10 MHz
Ref Out
p
ut
MS4622A Network analyzer
A
nritsu
MT8820A
MT8820A
10 MHz
Ref In
p
ut
Anritsu■
MS4622A
N-SMA cable
Open Termination
Short Termination
Load Termination
SMA/3.5 mm calibration kit (3750)

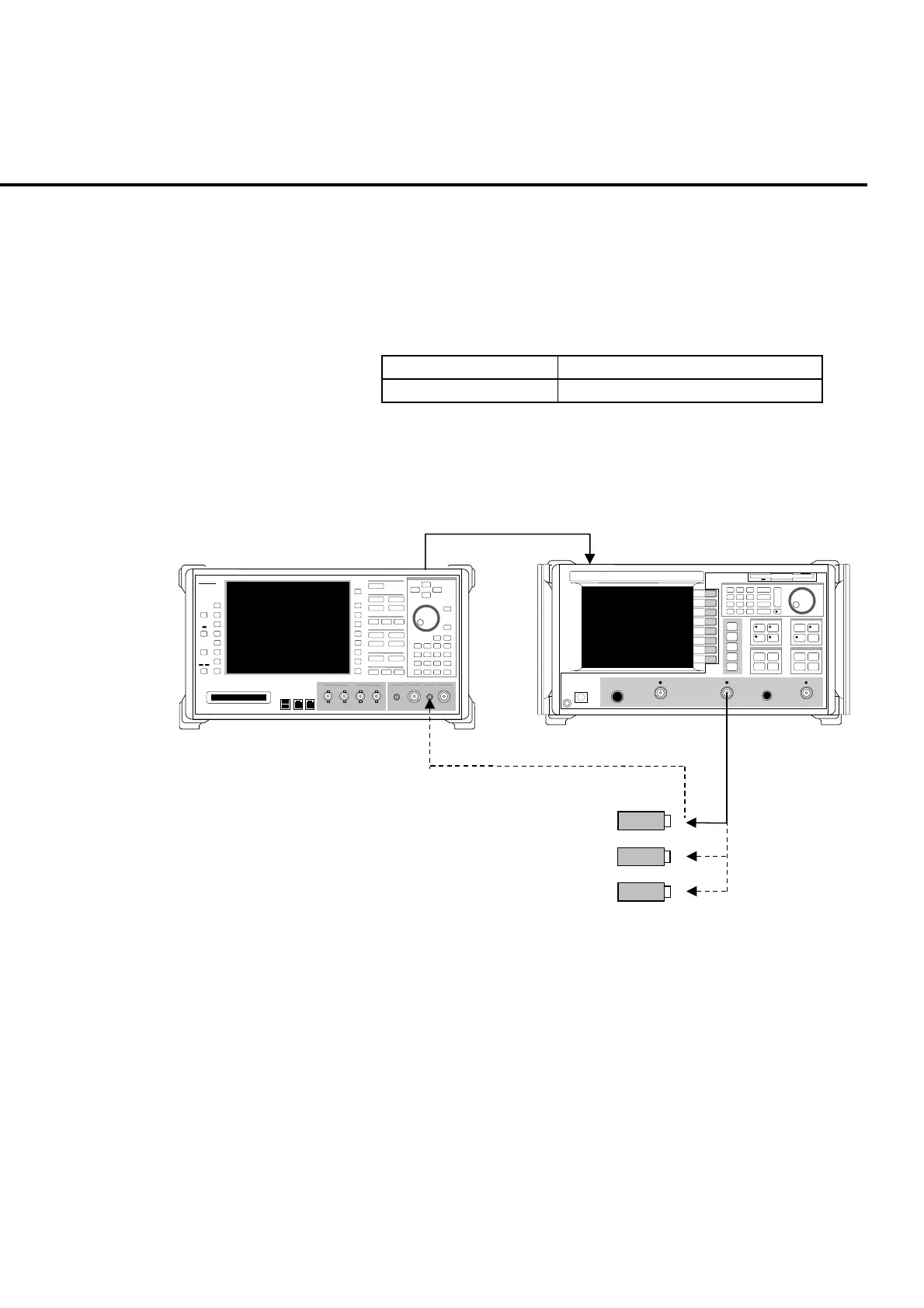

Fig. 9-1-6-1 Setting up for VSWR value test of AUX output connector
Note:
Confirm that MT8820A RF signal output connector is set to the AUX auxili-
ary output connector. Setting for RF signal output connector can be checked
in RF Output on the System Configuration screen
