4.7.6 Setting a numeric value group type parameter
The procedure for setting a numeric-value-group-type parameter is as follows:
[Procedure]
1. Turn the encoder to move the cursor onto the parameter to be set.
2. Perform one of the following operations to start entry.
• Press the encoder
• Press
Set
• Press
Enter
3. When starting entry, the popup window to enter the numeric value is opened.

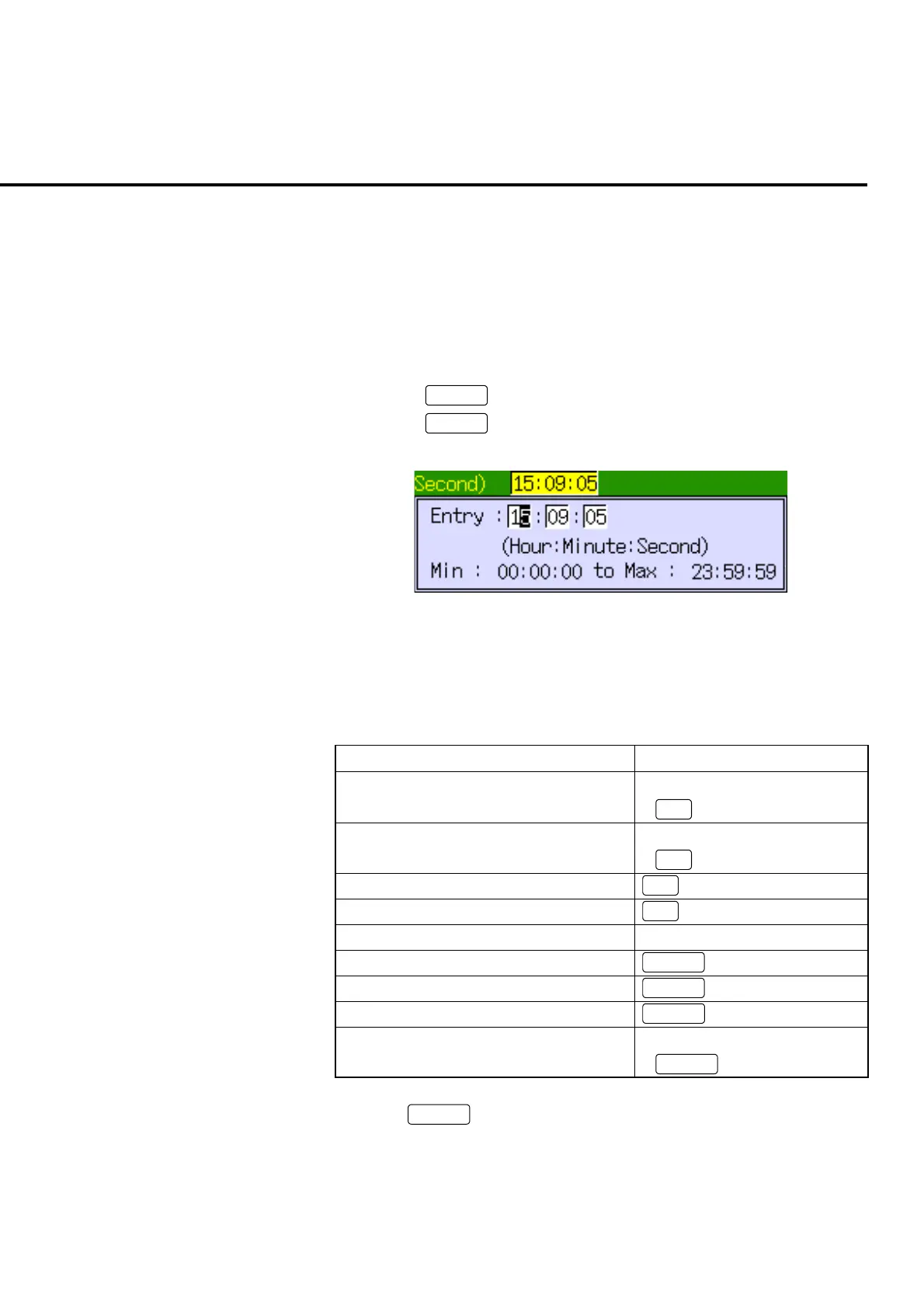

Fig. 4-7-6-1 Example of the numeric value group entry popup window
4. Operation for numeric value entry is described in the table below.
Table 4-7-6-1 Operations in the numeric value group entry popup
window
Numeric value entry Operation
Increase the value for the cursor by 1 • Turn the encoder to the left
•
∧
Reduce the value for the cursor by 1 • Turn the encoder to the right
•
∨
Move the cursor to the left
<
Move the cursor to the right
>
Numeric value entry Numeric keypad
Reverse the symbol
+/
−
Delete the value for cursor
BS
Cancel the entry operation
Cancel
Determine the value where the cursor is
placed and move the cursor to the next item.
• Press the encoder
•
Enter
5. Press
Set
to determine the entry.
6. The popup window is closed and entered value is displayed.
