7.6 Status Report
7-23
7.6.6 END event status register
The END event status register is an extended event status register specific to the
MT8820A for detecting an event concerning completion of operation. When the
MT8820A enters the status set for each bit, the corresponding bit becomes 1 (true).
＆
＆
＆
＆
＆
＆
＆
＆
Logical OR
bit 7
bit 6
bit 5
bit 4
bit 3
bit 2
bit 1
bit 0
END Event Status Enable Register
END Event Status Register
7
6
5
4
3
2
1
0
Reads by
∗
ESR2?
Sets by
∗
ESE2 <n>
Reads by
∗
ESE2?
7
6
5
4
3
2
1
0
disabled=0, enabled=128(2
7
)
disabled=0, enabled=64 (2
6
)
disabled=0, enabled=32 (2
5
)
disabled=0, enabled=16 (2
4
)
disabled=0, enabled=8 (2
3
)
disabled=0, enabled=4 (2
2
)
disabled=0, enabled=2 (2
1
)
disabled=0, enabled=1 (2
0
)
ESB summary message bit
(To bit 2 of status byte register)

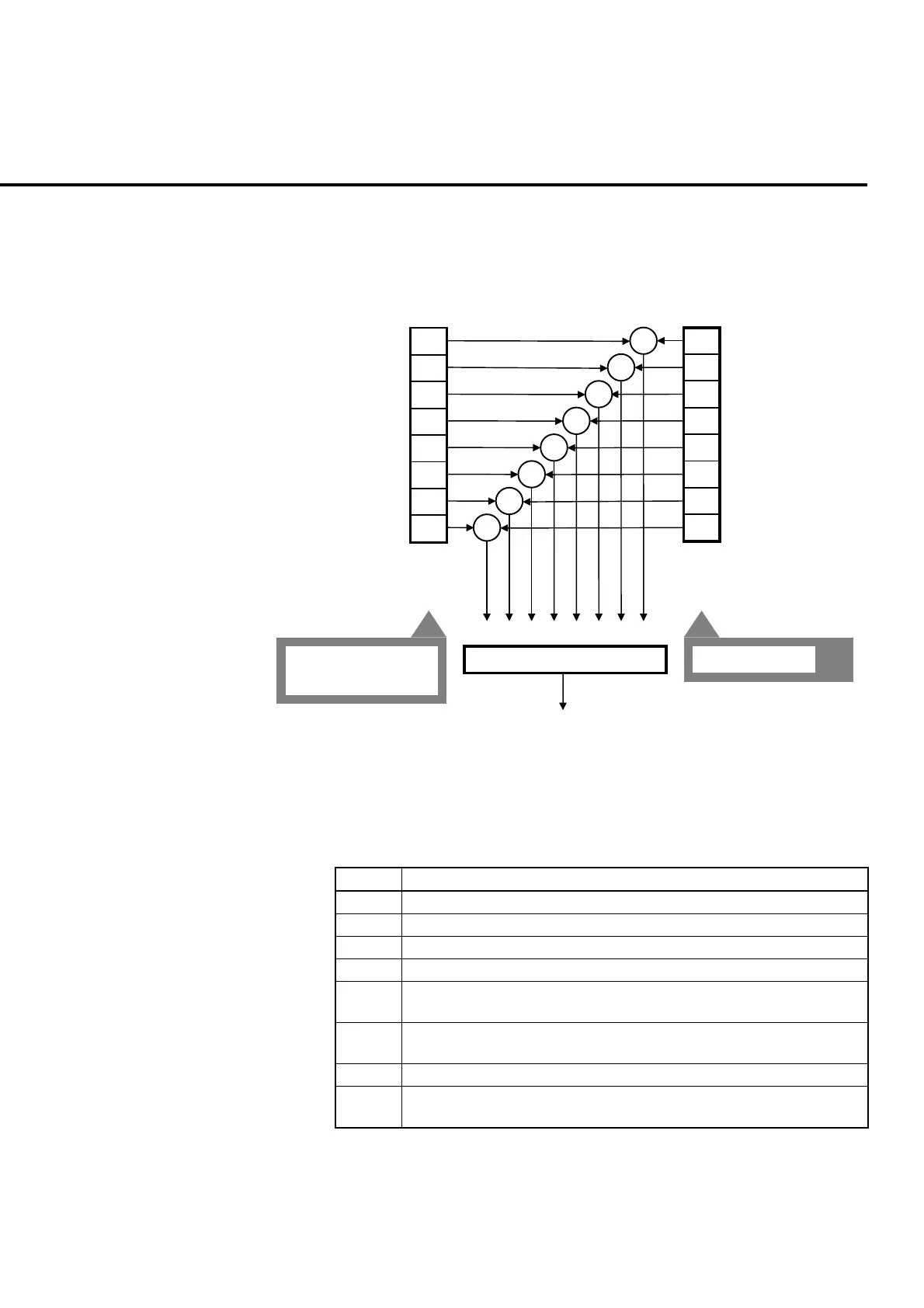

Fig. 7-6-6-1 END event status register
Table 7-6-6-1 Description of each bit of END event status register
When using W-CDMA or GSM measurement software
Bit Description
7 Not used
6 Not used
5 Not used
4 Indicates that Audio measurements have been completed.
3 Indicates that transmission measurements on the Fundamental
Measurement screen have been completed.
2 Indicates that reception measurements on the Fundamental
Measurement screen have been completed.
1 Not used
0 Measurement/Sweep Completed
Occurs when measurement or sweep has been completed.
