Anritsu MT8820A - Viewing the System Configuration Screen

Section 6 Common Screen Functions
6-4
6.1.2 Viewing the System Configuration screen

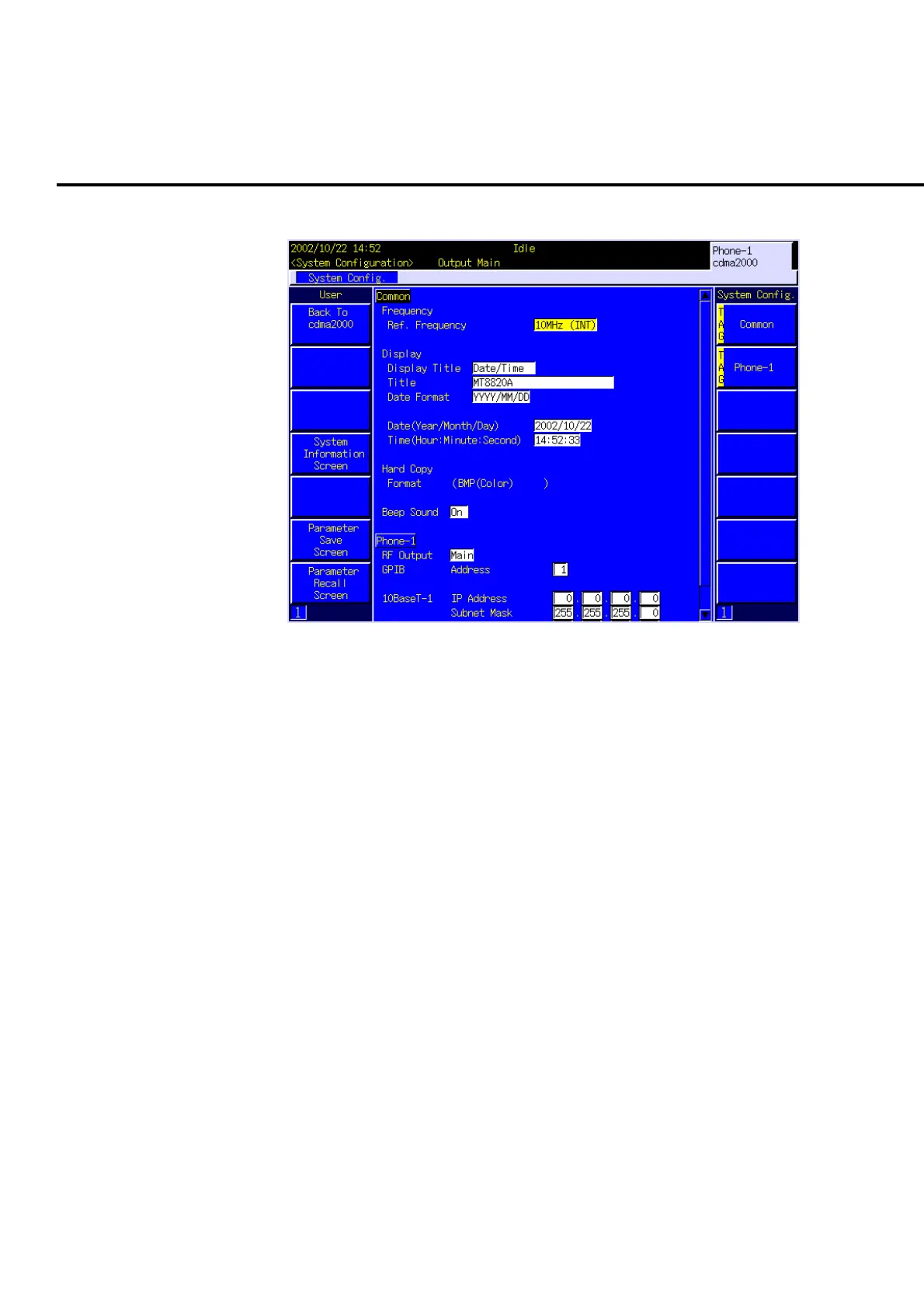

Fig. 6-1-2-1 System Configuration screen
Parameter
(1) Common parameter (tag)
Sets basic system values for MT8820A
(a) Frequency
(i) Ref. Frequency
Sets the frequency of externally input reference signal.
• Set value: 10 MHz (INT) MT8820A internal 10 MHz
Reference signal
10 MHz (EXT) External input 10 MHz
Reference signal
13 MHz (EXT) External input 13 MHz
Reference signal
• Initial value: 10 MHz (INT)
(b) Display
(i) Display Title
Sets the type of the title to be displayed in the upper-left corner of the
screen
• Set value: Off (display Off)
User Define (user-defined character string)
Date/Time (date and time)
• Initial value: Date/Time
