Automated Operation
In this mode, the Applied Biosystems 7900HT Fast Real-Time PCR System uses an
Automation Accessory (Zymark Twister Microplate Handler and fixed-position bar
code reader), to provide high-throughput operation suitable for small- to
medium-scale studies. With this configuration (Figure 1-12), a technician can run
batches of plates unattended using the Automation Controller Software. As in
Stand-Alone operation, the computer stores all data for operation of the instrument
and provides the software for analyzing the run data.

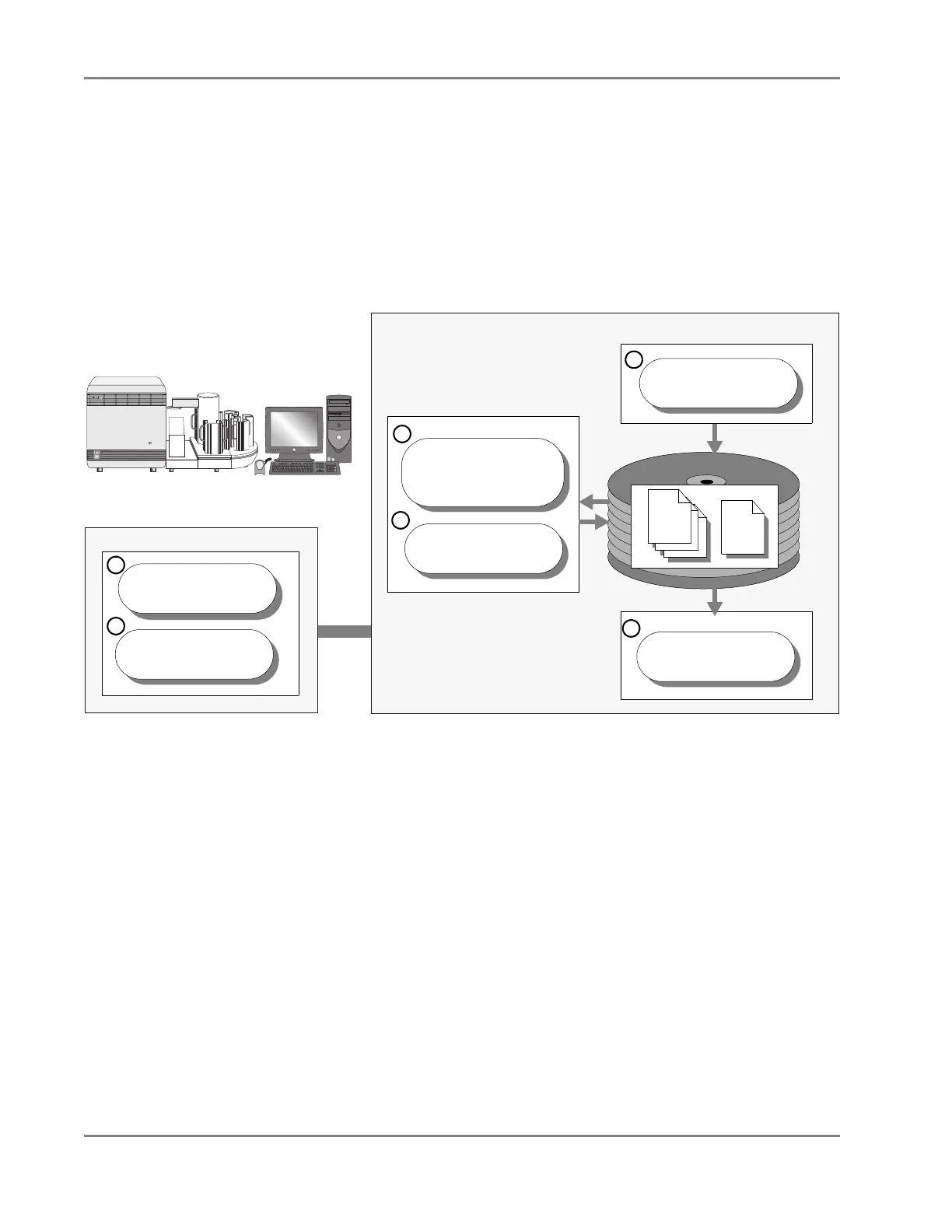

Figure 1-12 Automated Operation of the of the 7900HT Instrument
Database Operation
For this mode, the Applied Biosystems 7900HT Fast Real-Time PCR System uses
the SDS Enterprise Database and the Automation Accessory, to provide maximum
high-throughput potential. In this configuration (Figure 1-13 on page 1-19), the
7900HT instrument has the storage capacity and analysis capability to support
medium- to large-scale gene expression and genotyping studies. Moreover, the SDS
Enterprise Database functions as a repository for all SDS-related data produced by
the networked client computers used for data collection and analysis.
