Commissioning B 3
ekrPro Com
60
web guide controller EDV No.: MD.191.01.05/1.6.x Chapter: B 3
with analog sensors Date: 23.11.2007 Page: 55/73

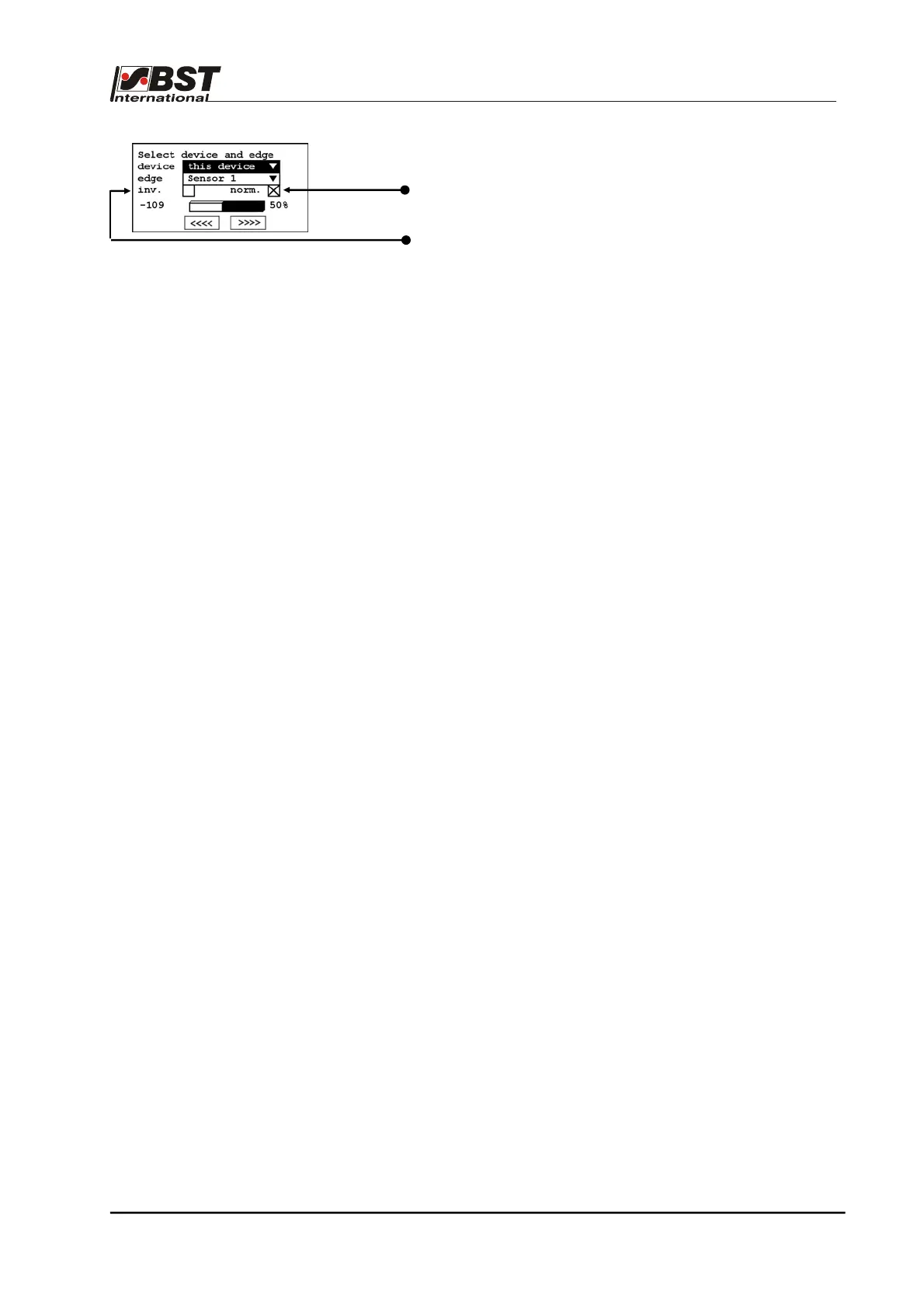

9. The input value supplied by the selected sensor can be shown
in this window as either an absolute or normalized
(percentage) value.
To activate normalized display, select checkbox norm..
10. If necessary, the checkbox inv. is used to invert the input
signal delivered by the sensor.
Inverting is necessary, if the input value delivered by the
sensor changes in the wrong direction when material is
brought into the sensor measurement area.
11. Use the function keys F2 and F3 to drive the actuator in
Manual operating mode.
This enables checking of the change in the sensor signal with
an inserted material web.
12. Press the ESC button to exit the window.
