417W239A

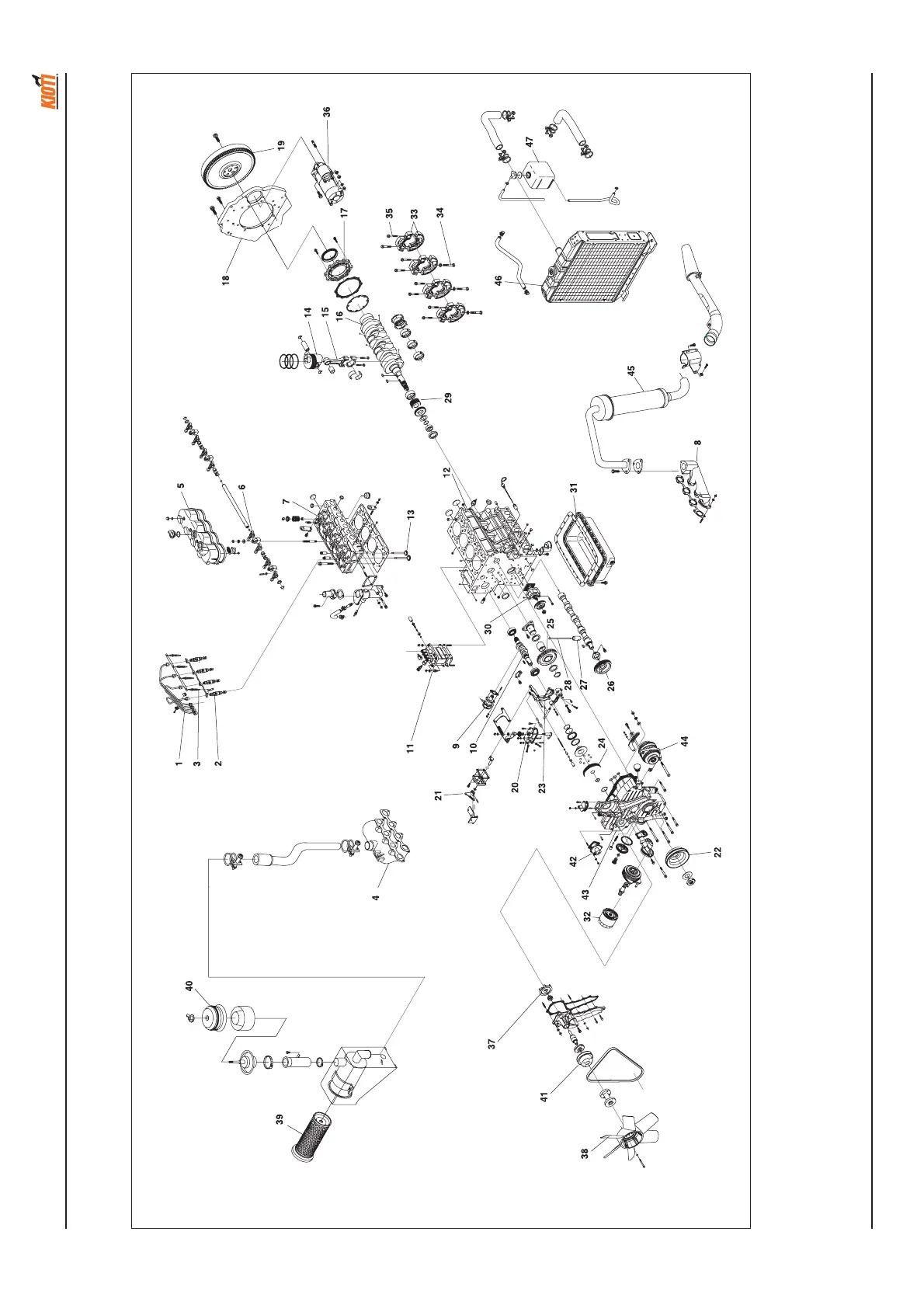

3.3 CHECK, DISASSEMBLY AND ADJUSTMENT 3.3.1 EXPLODED VIEW (1) Injection pipe (2) Injection nozzle (3) Glow plug (4) Intake manifold (5) Cylinder head cover (6) Rocker arm assembly
(7) Cylinder head (8) Exhaust manifold (9) Fuel pump (10) Fuel camshaft (11) Injection pump (12) Cylinder block
(13) Valve (14) Piston (15) Connecting rod (16) Crankshaft (17) Bearing case cover
(18) Engine installation plate (19) Flywheel (20) Speed control plate (21) Stop lever (22) Fan pulley
(23) Fork lever assembly (24) Injection pump gear (25) Idle gear (26) Cam gear (27) Tappet
(28) Push rod (29) Crank gear (30) Oil pump (31) Oil pan (32) Oil fi lter 1
(33) Main bearing case (34) Bearing case bolt 2 (35) Bearing case bolt 1 (36) Start motor (37) Water pump body
(38) Cooling fan (39) Air cleaner (40) Free cleaner (41) Fan drive pulley (42) Hour meter unit
(43) Gear case (44) Alternator (45) Muffl er (46) Radiator (47) Reservoir tank
Apr. 2007
2
-29
DSC48
