Daedong DSC48 - Checking Lights and Turn Signal Switch; Lever Switch 2 (Reaping Unit Up;Down Lever); Lever Switch 1 (Turning Left;Right Le- Ver)

7
-40
Apr. 2007
DSC48

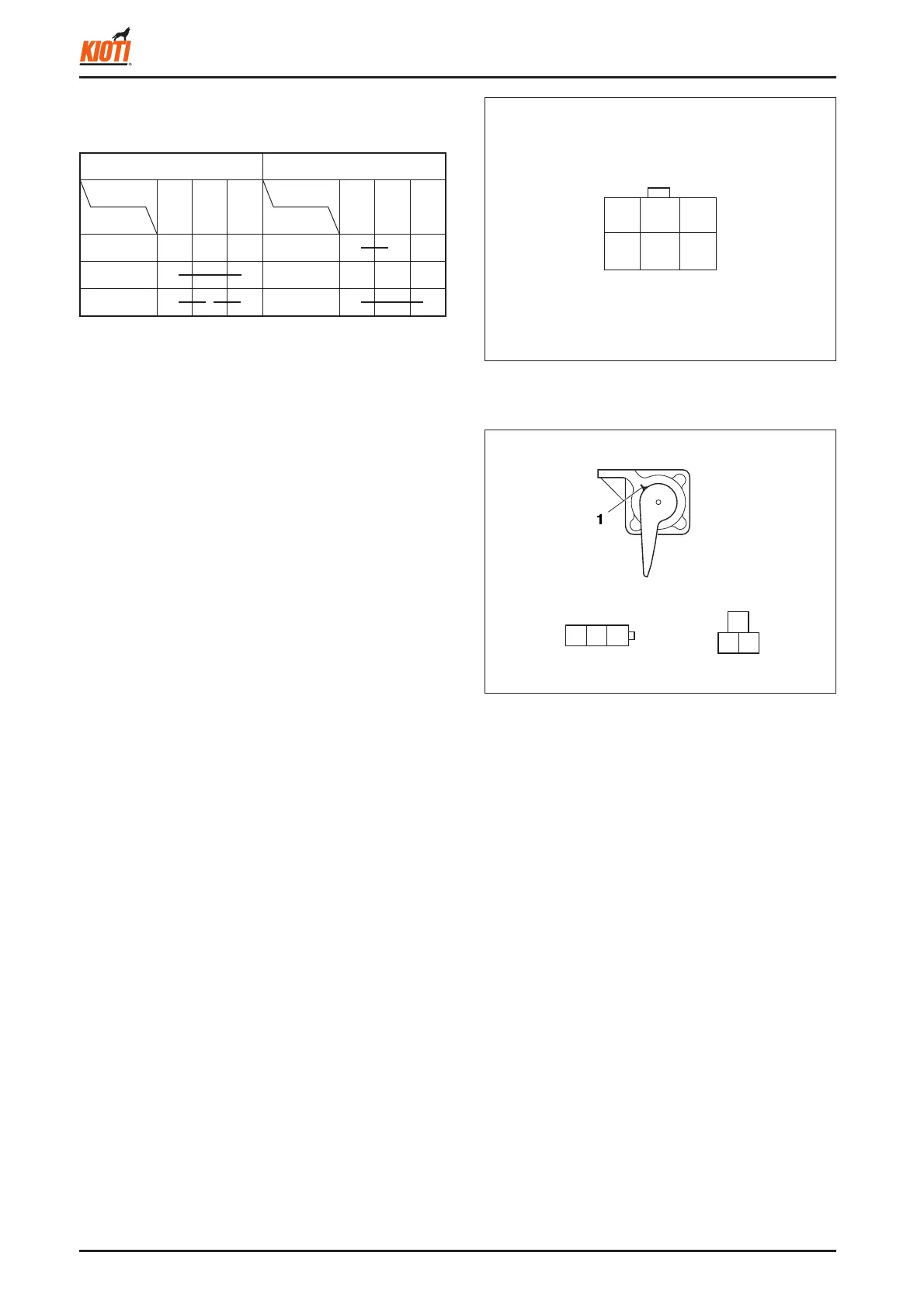

7.1.22 CHECKING LIGHTS AND TURN
SIGNAL SWITCH
417W756A
7.1.23 LEVER SWITCH 2 (REAPING UNIT
UP/DOWN LEVER)
1. Between 2 and 3 terminals: 0
Ω
(lifting reaping unit)
2. Between 2 and 1 terminals: 0
Ω
(lowering reaping unit)
3. Between 2 and 3 and 2 and 1 with the lever switch in
the neutral mark position:
∞ Ω
4. If all the above descriptions are satisfi ed, it is normal.
417W757A
Set the tester to the resistance range and contact each ter-
minal in each
{
-
{
range. If the tester pointer indicates 0 Ω,
it is normal.
(1) Lever switch neutral mark
123
456
321
32
1
(31) (32)
Light switch Turn signal lamp switch
Terminal
123
Terminal
123
Position Position
OFF Left ΟΟ
1 ΟΟOFF
2 ΟΟΟ Right ΟΟ
7.1.24 LEVER SWITCH 1 (TURNING
LEFT/RIGHT LEVER)
1. Between 1 and 2 terminals: 0
Ω
(left turn)
2. Between 1 and 3 terminals: 0
Ω
(right turn)
3. Between 1 and 3 and 2 and 1 with lever switch in neu-
tral mark position:
∞ Ω
4. If all the above descriptions are satisfi ed, it is normal.
