6
-26
Apr. 2007
DSC48

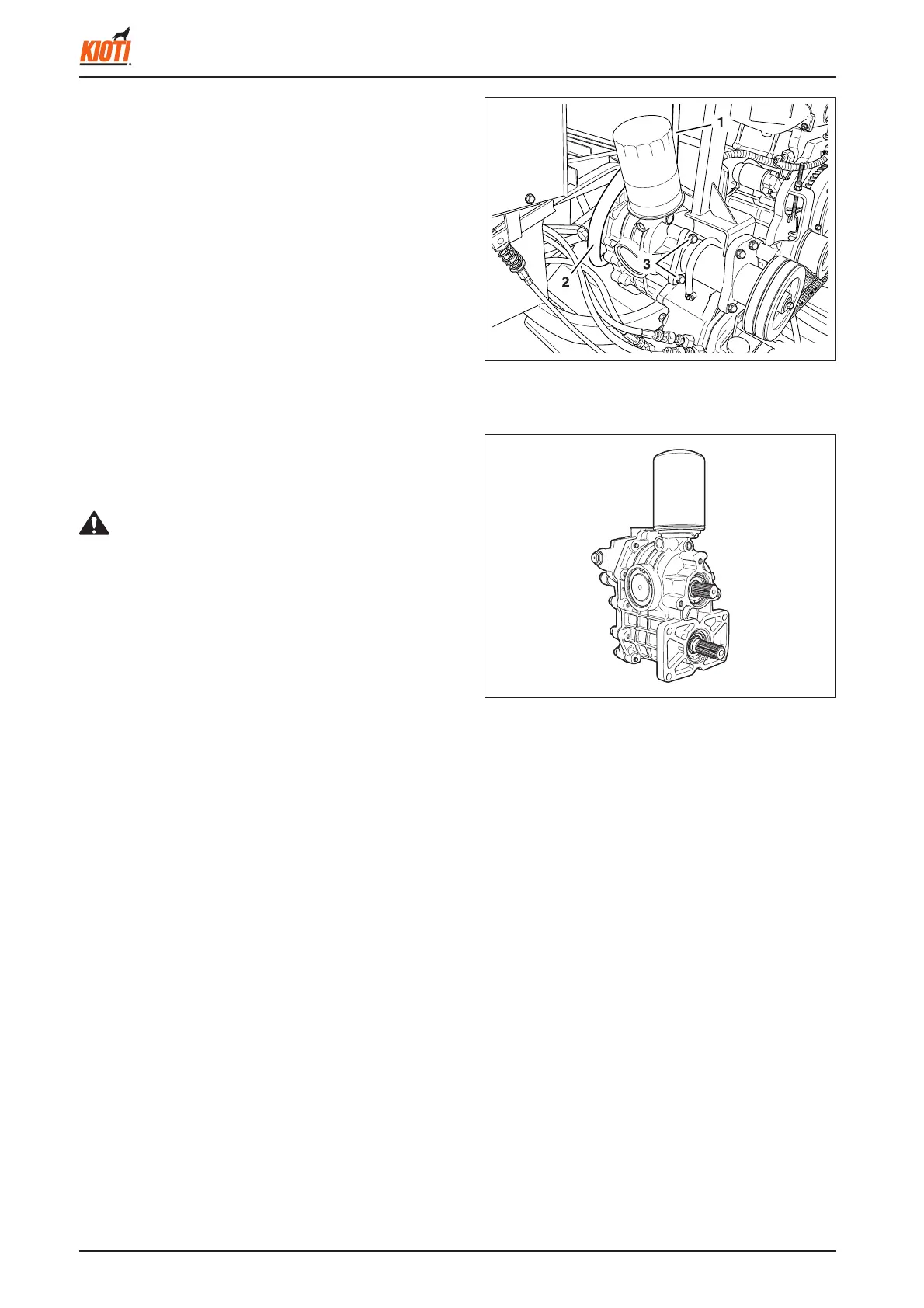

2.6.2 REMOVAL AFTER DETACHING
REAPING UNIT
1. Detach the reaping unit.
2. Remove the HST rod (1).
3. Remove the range shift rod for easier removal.
4. Remove the brake pedal and parking brake lever.
5. Disconnect the suction hose (2) and drain hose. Clamp
them to prevent oil leakage.
6. Unscrew three bolts (3) and four nuts and remove the
HST assembly.
<When assembling>
• Apply Three Bond to both sides of the HST packing.
• Adjust the HST for the neutral (stop) position.
417W636A
(1) HST rod (3) Bolt
(2) Suction hose
417W637A
• After installation, add 1ℓ of oil through the drain pipe
connection and perform a test driving.
CAUTION
To Next Page
