1.3 FEEDING CHAIN
(Check after the initial 20 hours of operation, then check every 100 hours, and replace every 500 hours)
1.3.1 ADJUSTMENT AND REPLACEMENT
OF FEEDING CHAIN

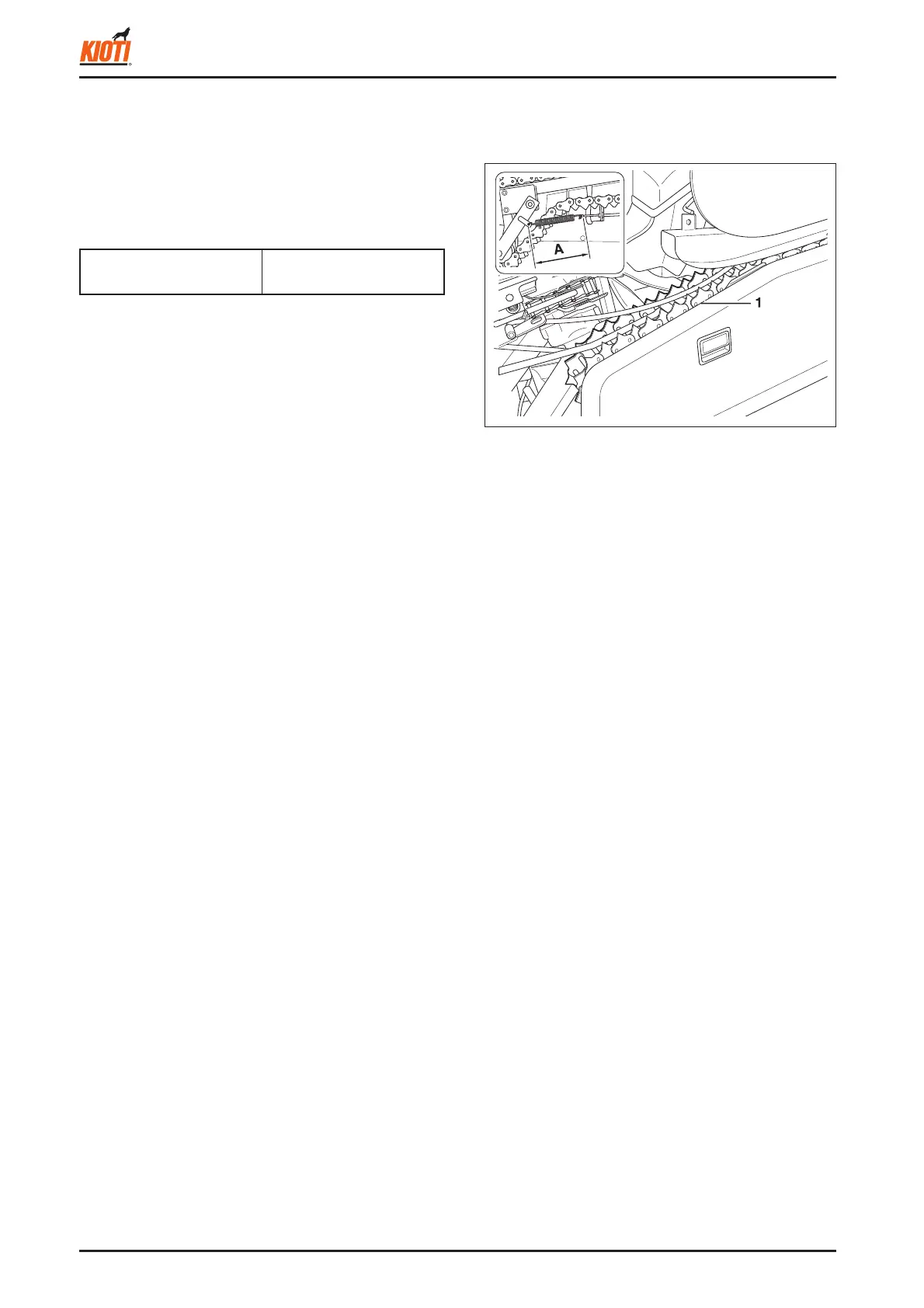

A. ADJUSTMENT
417W410A
(1) Feeding chain
(A) 150 ~ 155 mm
Standard spring length
(installed)
150 ~ 155 mm
B. REPLACEMENT
1. Loosen the tension and remove the chain from the rail.
2. When installing the chain, set the open endings of the
split pin toward the chain's rotating direction.
