Daedong DSC48 - SECTIONAL VIEW

Apr. 2007
4
-3
DSC48

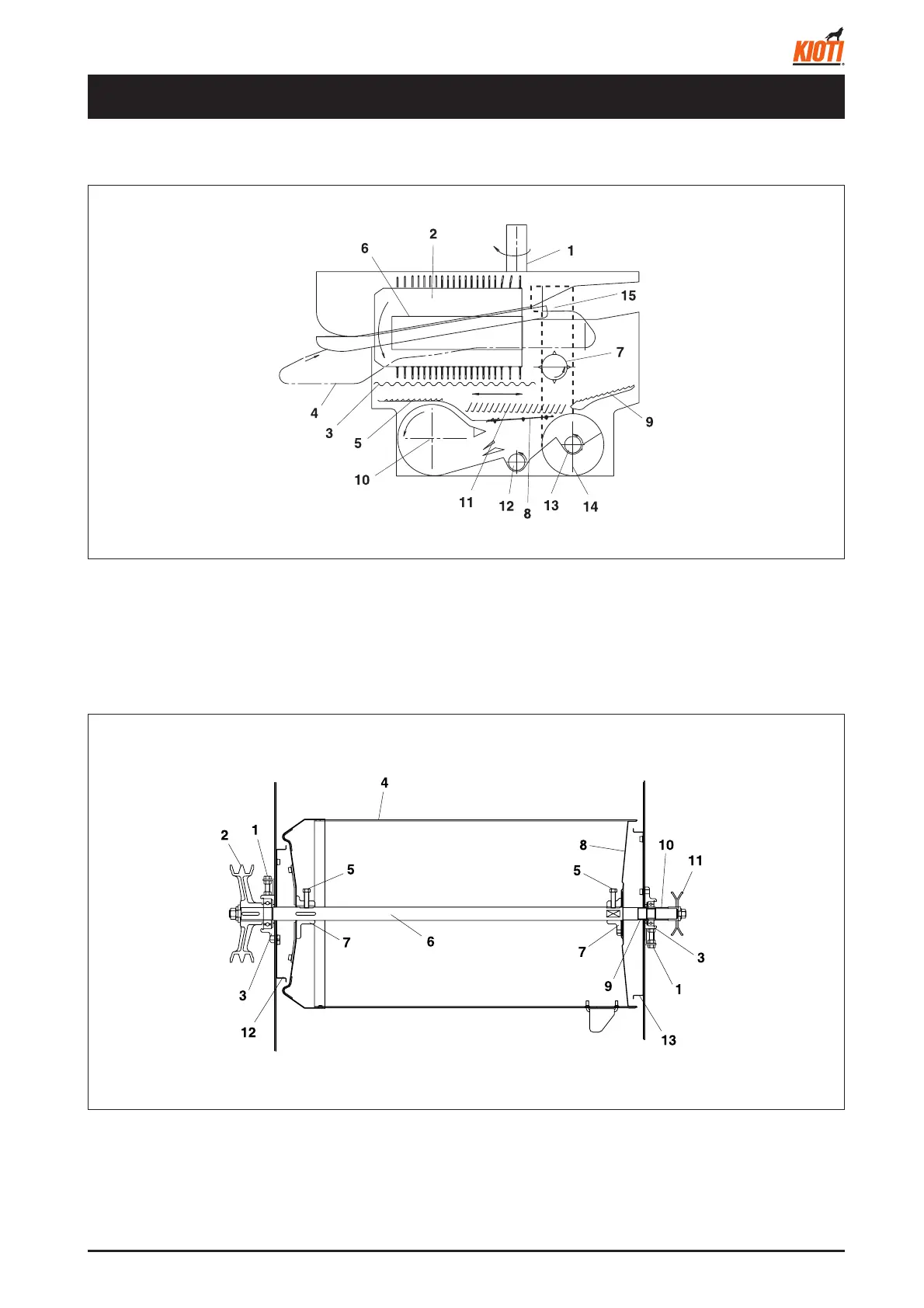

1.1 SECTIONAL VIEW
417W401A
(1) Vertical auger
(2) Threshing cylinder
(3) Concave
(4) Feeding chain
1. THRESHING UNIT
417W402A
(1) Adjusting shim bolt
(2) 220 V-pulley
(3) Bearing holder
(4) Threshing cylinder
(5) Sieve case
(6) Reprocessing cylinder
(7) Separator drum
(8) Grain sieve
(9) Straw rack
(10) Blower
(manually adjusted)
(11) Chaff
(manually adjusted)
(12) No. 1 screw
(13) No. 2 screw
(14) No. 2 thrower
(15) Outlet pipe
(5) Threshing cylinder
mounting bolt
(6) Threshing cylinder shaft
(7) Threshing cylinder boss
(8) Threshing cylinder disc
(RH)
(9) 20 collar
(10) 28.2 collar
(11) 98 V-pulley (for driving
straw chain)
(12) Anti-drop plate 1
(13) Anti-drop plate 2
