Apr. 2007
4
-29
DSC48
1
2
2
1
3
L

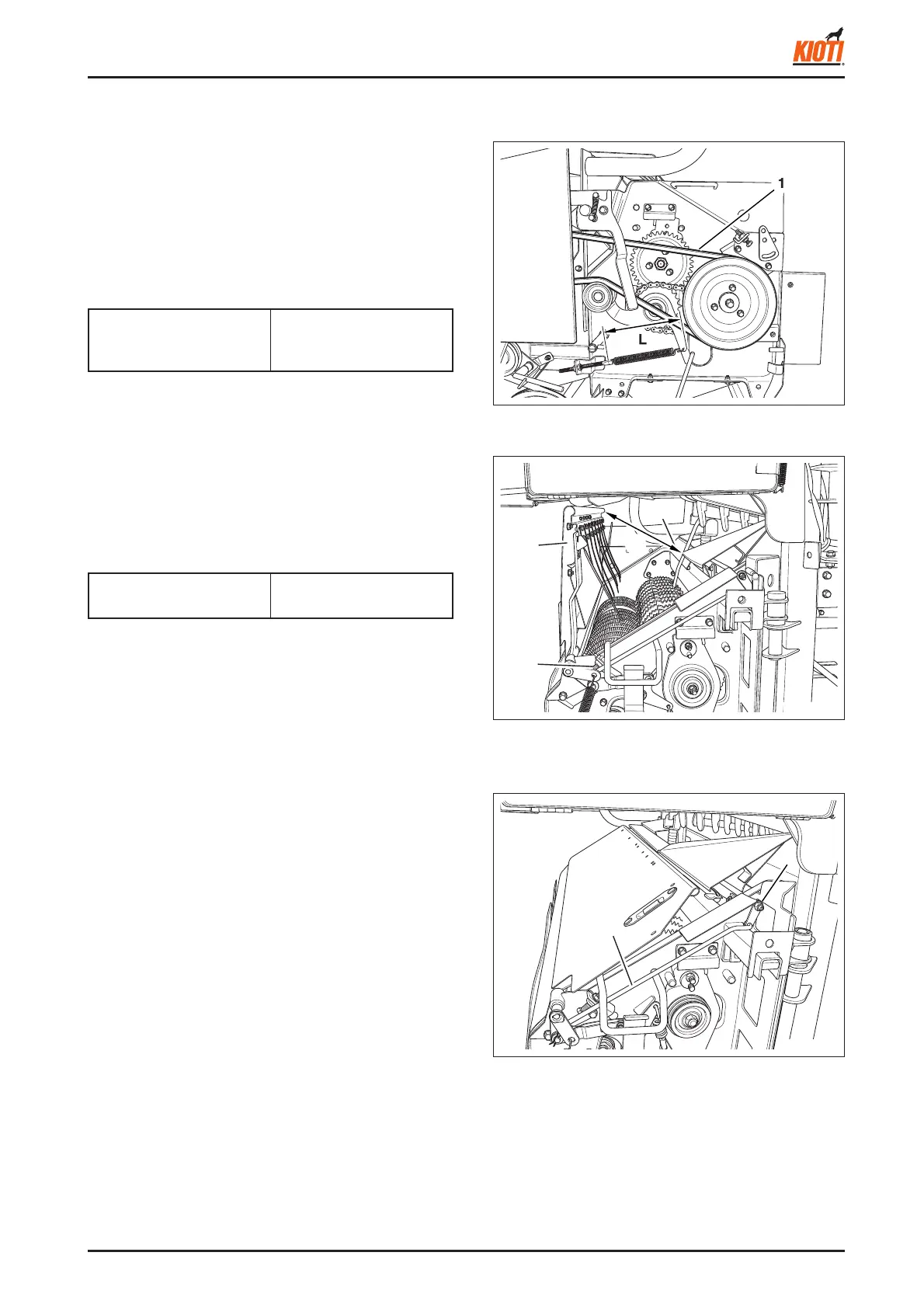

C. DIMENSION FOR UPPER COVER
1. Put the straw discharging selection lever to the "Drop-
per" position.
2. Adjust the angle of the upper cover to be 0 to 4
°
with
the nut 1 of the selection rod 2.
417W470A
(1) Nut
(2) Selection rod
2.2 CUTTER
2.2.1 CHECK AND ADJUSTMENT
A. ADJUSTMENT OF CUTTER DRIVE BELT
TENSION
1. Measure the inner length between the tension spring
hooks of the cutter drive belt.
2. If its length is out of the standard, adjust it by the ten-
sion bolt.
417W467A
(1) Cutter drive belt
B. DIMENSION OF OPEN SELECTION COVER
1. Put the straw discharging selection lever to the "Cutter"
position.
2. Measure the distance between the selection cover 1
and upper cover 2.
417W469A
(1) Selection cover (3) Mounting bolt
(2) Upper cover
Standard spring length
(between hook inner
ends) (cutter drive belt L)
165 ± 2 mm
Standard length for selec-
tion cover (open)
216 ~ 224 mm
To Next Page
