D. REPLACEMENT OF GRAIN SIDE CHAIN
1. Remove the grain side chain tension 3 and remove the
grain side conveyor case 2.
2. Undo the chain connection and remove the 20T sprock-
et 1.
• When assembling the chain connection, compress
the straw discharging roller (grain side) (4) and ten-
sion.

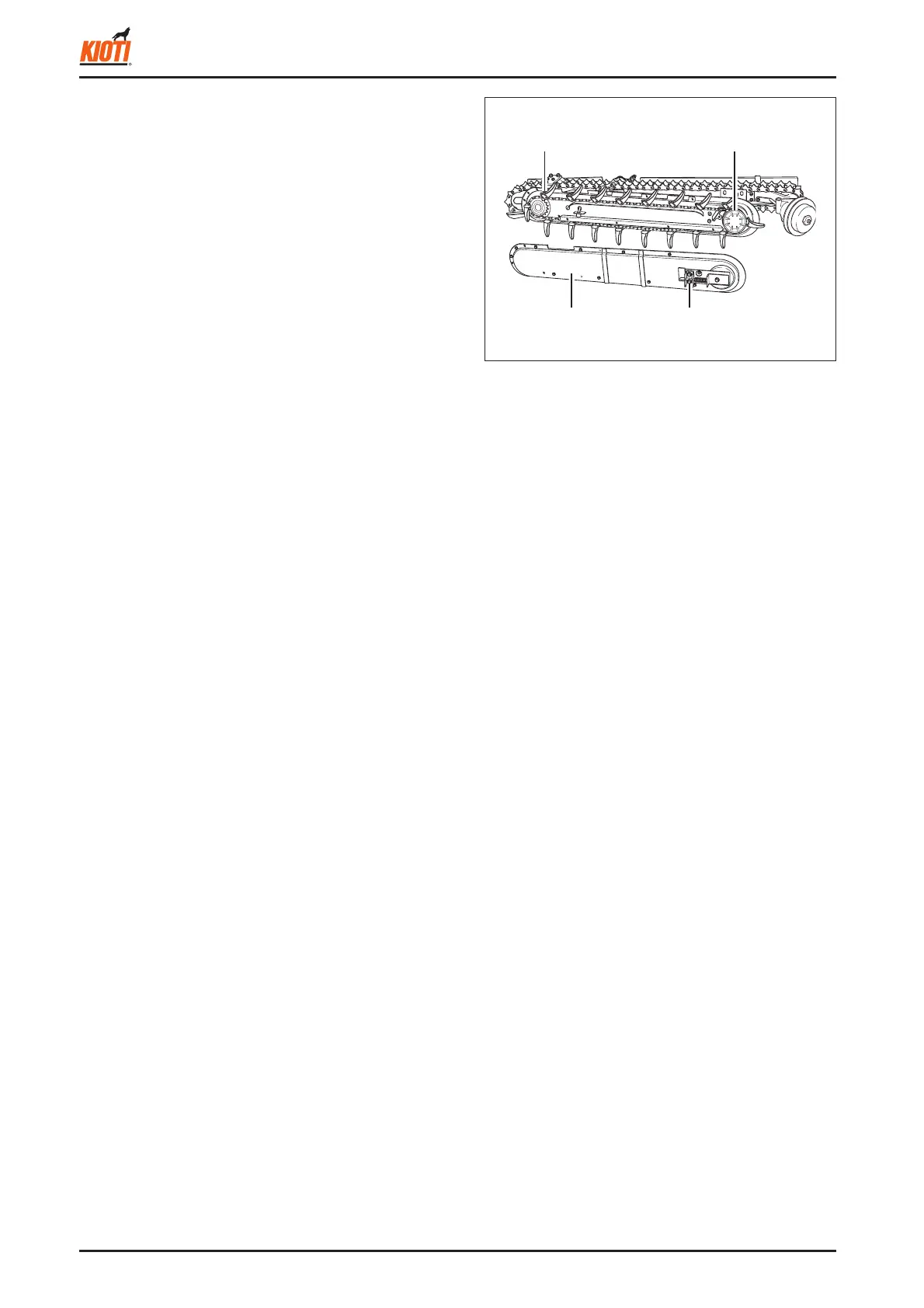

417W466A
(1) 20T sprocket
(2) Grain side conveyor case 2
(3) Tension
(4) Straw discharging roller (grain side)
