Apr. 2007
7
-29
DSC48

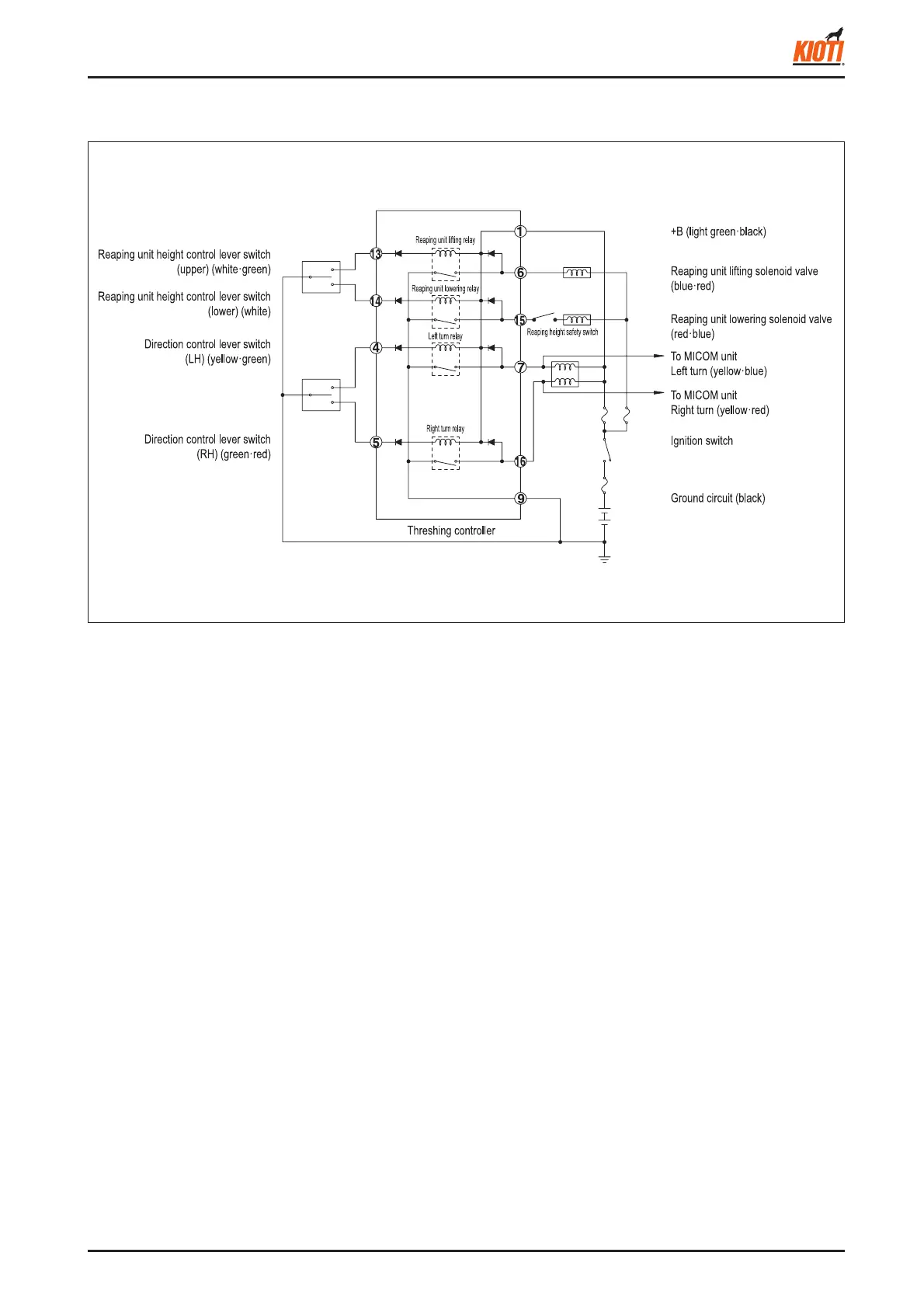

5.4 WIRING DIAGRAM
417W733A
5.5 CHECKING NORMAL OPERATION
1. Start the engine.
2. When moving the power steering lever to the right, the
piston (RH) of the direction control cylinder operates.
3. When moving the power steering lever to the left, the
piston (LH) of the direction control cylinder operates.
4. When moving the power steering lever rearward (lifting
position), the reaping unit is lifted.
5. When moving the power steering lever forward (lowering
position), the reaping unit is lowered.
6. When inclining the power steering lever to the left or
right as far as possible while the combine harvester is
moving, the brake operates for turning.
