Daedong DSC48 - COMPONENTS AROUND ENGINE; LH ON THRESHING UNIT

Apr. 2007
4
-7
DSC48

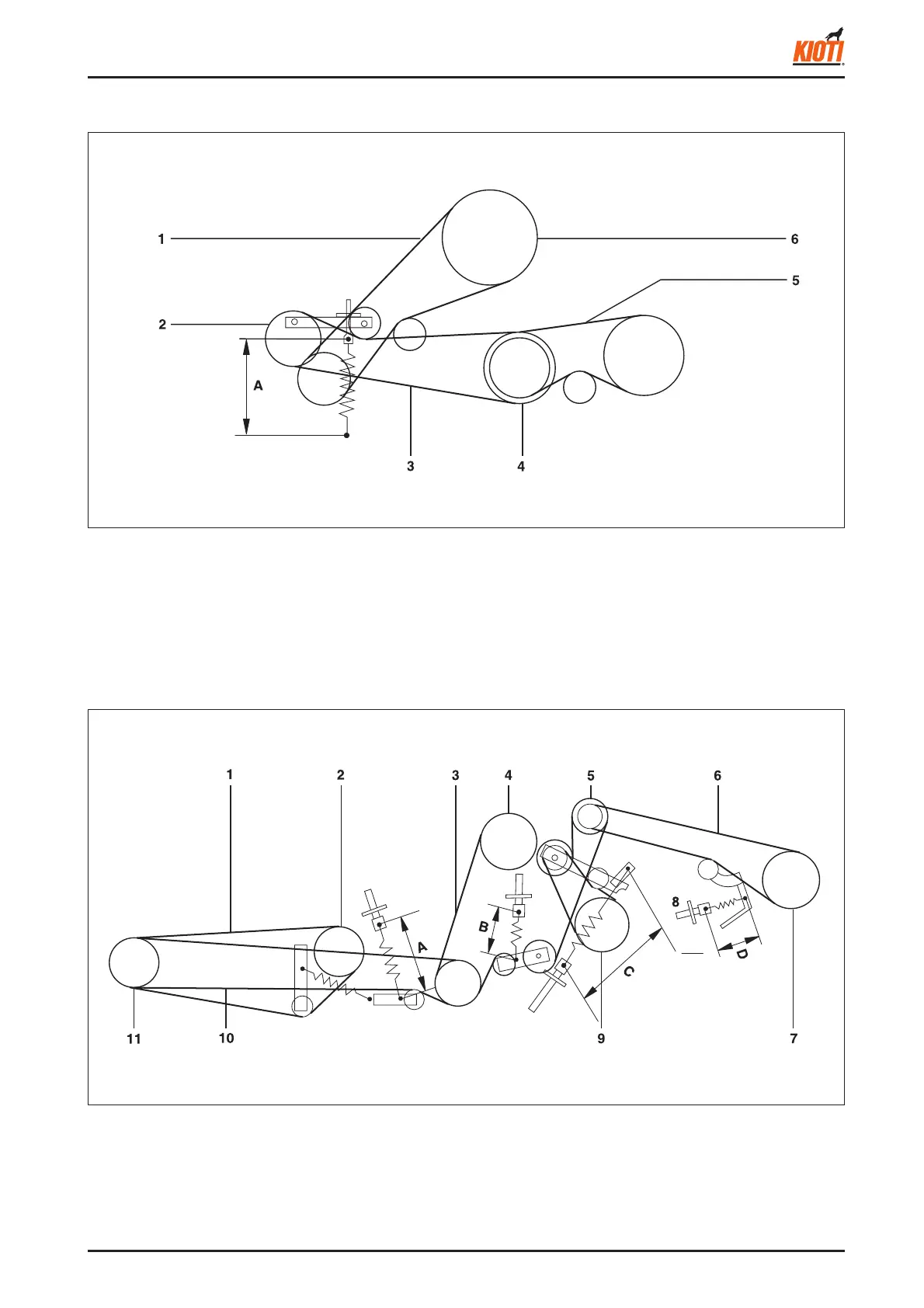

1.2.3 COMPONENTS AROUND ENGINE
(1) HST pulley
(2) Reaping drive belt 3
(3) Reaping unit pulley
(4) Transmission drive belt
(5) Threshing drive belt
(6) Engine pulley
(A) 141 ~ 145 mm
417W409A
1.2.4 LH ON THRESHING UNIT
(1) Blower drive belt
(2) Counter
(3) No. 1 drive belt
(4) Blower
(5) No. 2 drive belt
(6) Separator drum
(7) Rocker drive belt
(8) Cutter drive belt
(9) Cutter
(10) No. 1
(11) No. 2
417W408A
