1.8 SEPARATOR DRUM AND NO. 2 PROCESSING CYLINDER
1.8.1 REMOVAL AND INSTALLATION
OF SEPARATOR DRUM AND NO. 2
PROCESSING CYLINDER

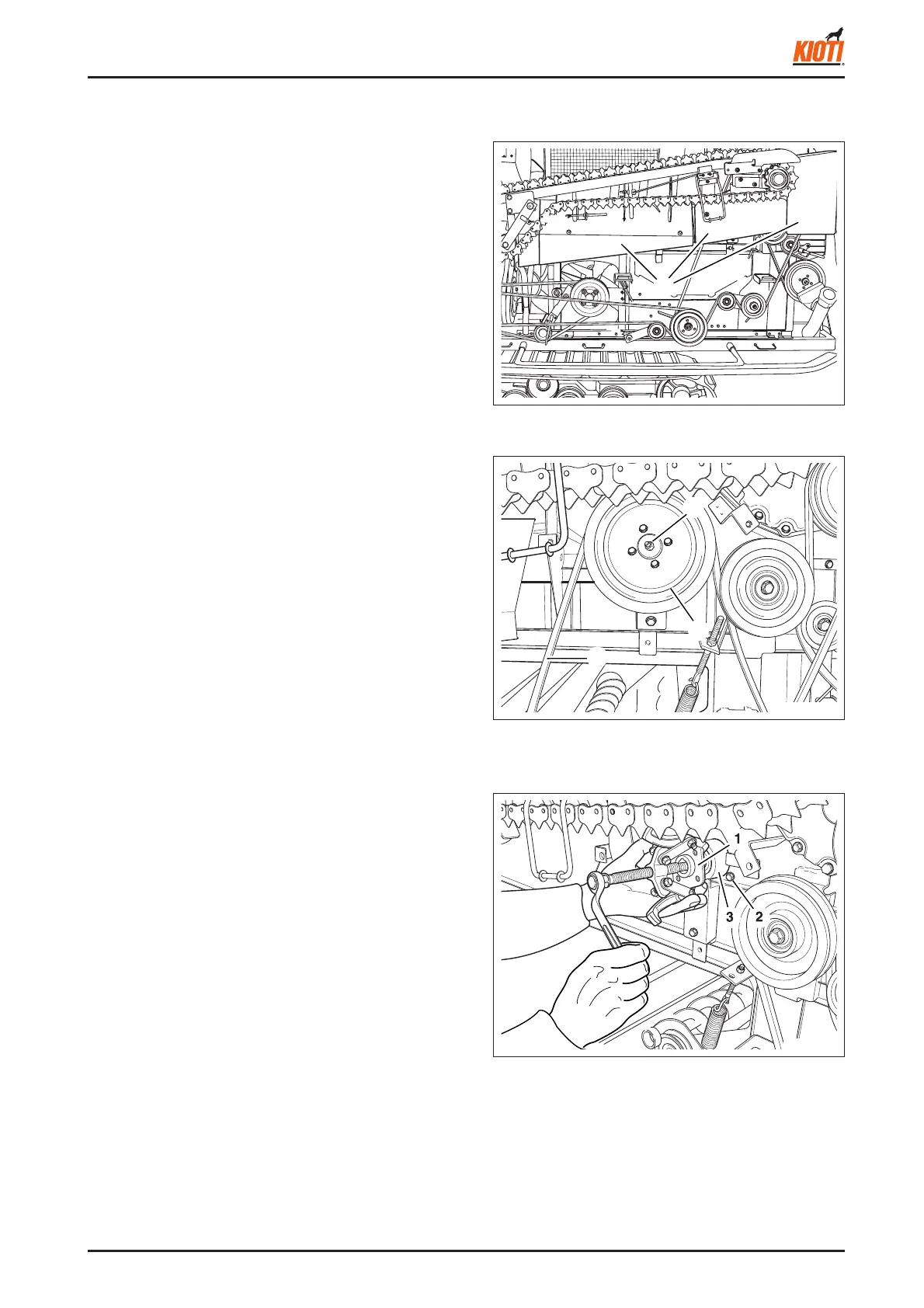

1. Remove the cover.
(1) Cover
(1) Belt (3) Nut
(2) Pulley
417W438A
2. Before removing the belt, loosen the pulley mounting
bolt and boss mounting nut.
3. Loosen the tension and remove the belt.
4. Remove the pulley.
5. Remove the drum pulley boss.
6. Unscrew three bolts on the drum bearing holder (left).
(1) Drum pulley boss (3) Bearing holder
(2) Bolt
417W439A
417W437A
